Specifications
Model Number :
TM937-1s
Brand Name :
TMTECK
Packaging Details :
Carton
MOQ :
1
Delivery Time :
7 work days
Warranty :
2 years
Payment Terms :
T/T
Effective testing range :
35-92HBa, equivalently to 25~150HBW
Services :
OEM, ODM, OBM
Supply Ability :
50 pieces within one week
Testing Range :
0~100HBa
Certification :
CE
Price :
Negotiation
Resolution :
0.1HBa
Power Supply :
3 AAA battery
Place of Origin :
China
Description
Digital Barcol Hardness Tester TM937-1s
Product Overview

TMTeck Digital Barcol Hardness Tester is a portable indentation hardness tester developed based on Barcol impressor technology, designed for testing the hardness of aluminum alloys, fiber reinforced plastics, and rigid plastics.

Standards Compliance

Complies with standards JJG610-2013 and ASTM B648-10(2015).

Operating Principle

The digital Barcol hardness tester applies a specific shape steel indentor to press into workpiece surfaces through test force generated by a load spring. When the supporting foot contacts the workpiece surface, the instrument measures the extension length of the indentor.

Applications

Designed for testing hardness of aluminum, aluminum alloys, fiber reinforced plastics, and rigid plastics. Features a wide valid testing range equivalent to Brinell hardness 25-150HBW.

Technical Specifications
Testing Range 0~100HBa
Effective Testing Range 35-92HBa (equivalent to 25~150HBW)
Resolution 0.1HBa
Indication Error Hardness range 42~48HBa: ±2HBa
Hardness range 81~88HBa: ±1HBa
Repeatability Error Hardness range 42~48HBa: ±2HBa
Hardness range 81~88HBa: ±1HBa
Power Supply 3 AAA batteries
Net Weight 1kg
Key Features
Single-hand operation with easy portability
Die-casting alloy shell for comfortable handling
Digital display for direct reading
Low-configuration displays Barcol hardness directly
High-configuration converts to HW, HV, HBW, and HR E via conversion button
Easy indenter replacement
Simple full-scale calibration with adjustment button
External calibration mode without shell removal

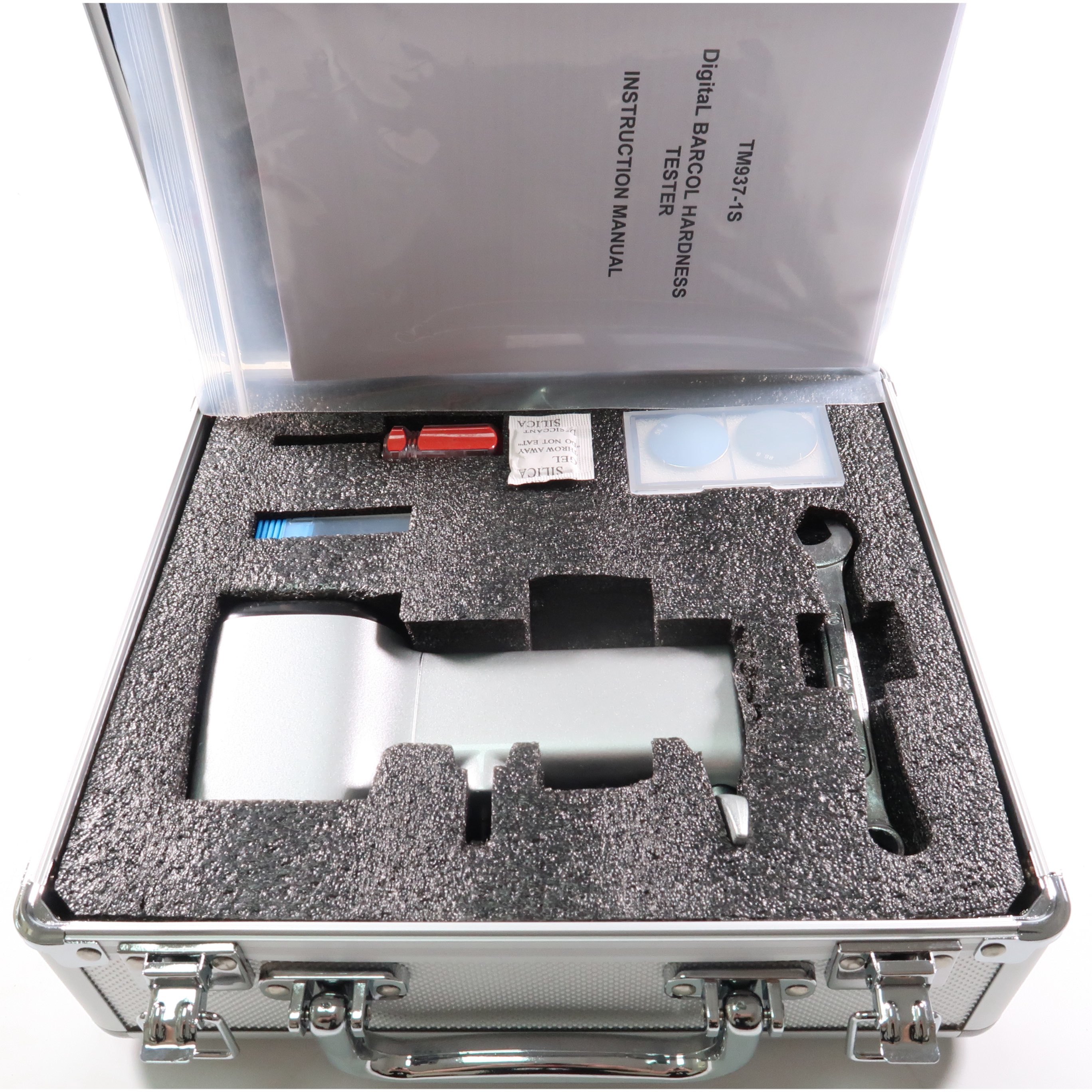

Standard Package Contents
Tester 1 unit
Spare Indenters 2 units
High Value Standard Hardness Block 1 unit
Low Value Standard Hardness Block 1 unit
Calibration Wrench 1 unit
Supporting Foot 1 unit
Carrying Case 1 unit
