Specifications
Model Number :
THL500
Warranty :
2 years
Brand Name :
TMTECK
Services :
OEM, ODM, OBM
Packaging Details :
Carton
MOQ :
1
Delivery Time :
7 work days
Hardness Scale :
HL、HB、HRB、HRC、HRA、HV、HS
Payment Terms :
T/T
Price :
Negotiation
Accuracy :
±4 HLD
Supply Ability :
50 pieces within one week
Certification :
EN ISO 16859-2016
Measuring range :
HLD (170～960)
Place of Origin :
China
Measuring direction :
360°
Description
THL500 Portable Hardness Tester
Product Overview

The THL500 Portable Hardness Tester is a high-precision instrument featuring China's highest brightness OLED display with dual-value hardness scale display capability. Designed for industrial applications, it offers exceptional readability and energy efficiency.

Key Advantages
  • Highest brightness OLED display in China with 3-inch screen
  • Dual hardness scale display capability
  • 360° measuring direction with automatic direction detection
  • Four additional hardness scales: HRA, HB for D impact device of alloy tool steel; HV for cast aluminum alloy
  • User material function for testing special materials
  • Test at any angle, including upside down
  • Wide measuring range for all metallic materials
  • Direct display of HRB, HRC, HV, HB, HS, HL hardness scales and three types of strength values
  • Seven impact devices available for special applications with automatic device identification
  • Large capacity memory storing 600 groups of data
  • Preset upper and lower limits with automatic alarm
  • Battery capacity indicator and charge status display
  • User calibration function
  • USB port with PC data processing software
  • High-speed thermal printer for immediate printing
  • Li rechargeable battery with 200+ hours continuous operation
  • Auto power off for energy saving
  • 2-year guarantee with lifetime maintenance
Main Applications
  • Die cavity of molds
  • Bearings and other precision parts
  • Failure analysis of pressure vessels and steam generators
  • Heavy work pieces
  • Installed machinery and permanently assembled parts
  • Testing surface of small hollow spaces
  • Material identification in metallic materials warehouses
  • Rapid testing in large range and multi-measuring areas for large-scale work pieces
Technical Specifications
Measuring range HLD (170～960)
Measuring direction 360°
Accuracy ±4 HLD
Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS
Display 3-inch OLED screen
Data memory 600 groups maximum
Printing paper width (57.5±0.5)mm, diameter 30mm
Battery pack 7.4V Li battery
Battery charger 9V/500mA
Continuous working period Approximately 200 hours
Communication interface USB 2.0
Outline dimensions 225mm × 85mm × 35mm

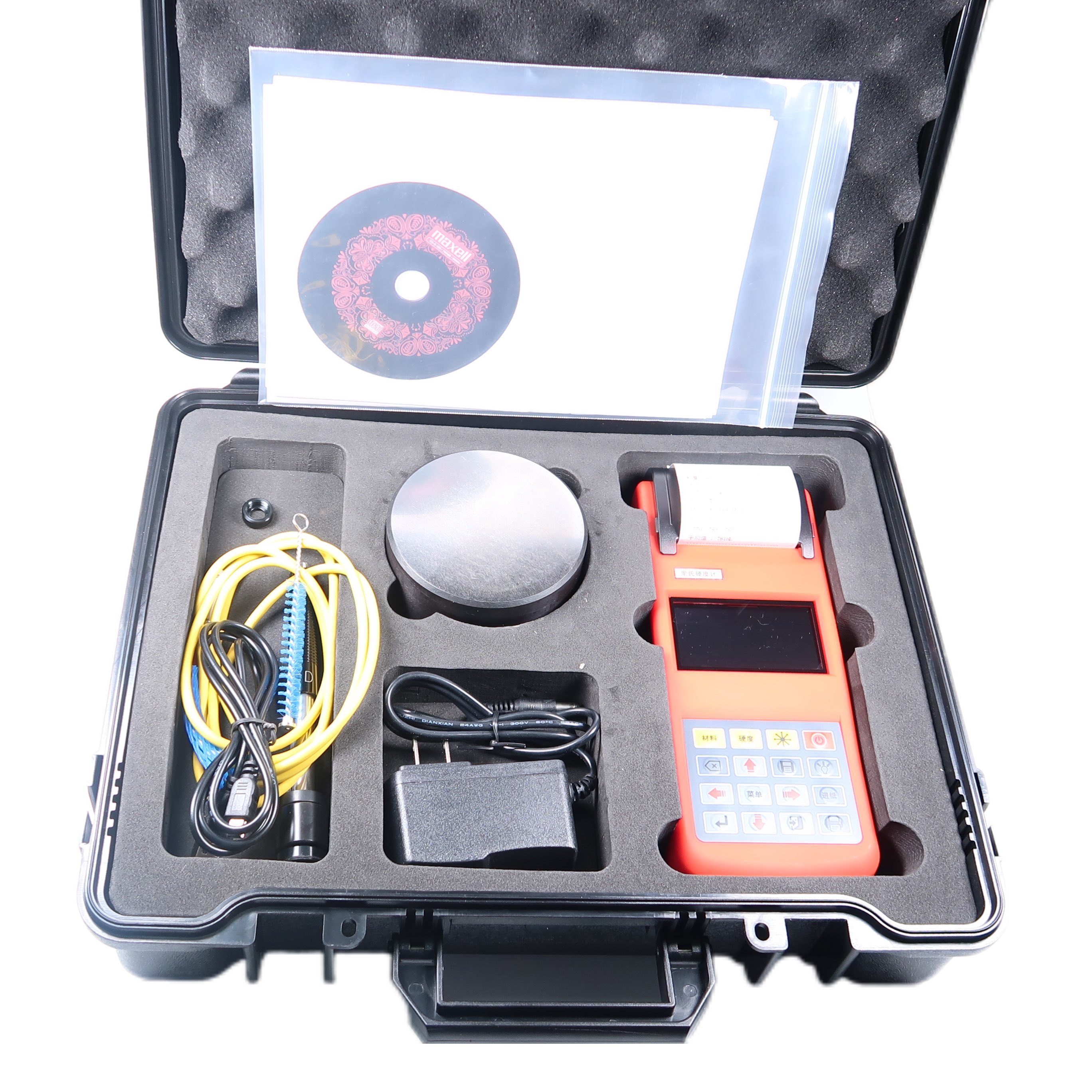

Standard Configuration
No. Item Quantity Remarks
1 Main Unit 1
2 D type impact device 1 With cable
3 Standard test block 1
4 Cleaning brush (I) 1
5 Small support ring 1
6 Battery Charger 1 9V 500mA
7 Paper for printing 1
8 Manual 1
9 Instrument case 1
