Specifications
Model Number :
TM937-1
Effective testing range :
0-100HBa, equivalent to 25-135HBW
MOQ :
1
Delivery Time :
7 work days
Service :
OEM, ODM, OBM
Brand Name :
TMTECK
End face diameter :
0.157mm
Packaging Details :
Carton
Payment Terms :
T/T
Price :
Negotiation
Warranty :
2 years
Supply Ability :
50 pieces within one week
Certification :
CE
Resolution :
0.1HBa
Place of Origin :
China
Weight :
1 kg ( Batteries are not included)
Description
Digital Barcol Hardness Tester TM937-1
Product Overview

The TM937-1 Digital Barcol Hardness Tester is designed for testing aluminum and aluminum alloys, copper and copper alloys, GFRP, hard plastic, and similar materials. With significantly higher sensitivity than commonly used Wechsler Hardness Testers and pointer-type Barcol Hardness testers, this instrument eliminates the need for workpiece support or movement, making it exceptionally easy to operate. It is particularly suitable for super large and thick workpieces and assemblies in the aluminum processing industry.

Key Features
  • Digital display provides intuitive readings with 0.1HBa resolution, significantly higher than traditional pointer-type Barcol Hardness Testers
  • Easy pressing needle replacement - when testing full scale, if indication is not at 100HBa, simply press the needle back to the pressure cylinder and use the Reset button to adjust to 100HBa
  • External calibration mode allows all adjustments (except pressure needle) without disassembling the casing, using adjustment screws and screen buttons on the instrument
Technical Specifications
End face diameter 0.157mm
Effective testing range 0-100HBa, equivalent to 25-135HBW
Resolution 0.1HBa
Indication error 81-88 HBa + 1 HBa
42-48 HBa + 2 HBa
Repeatability error 81-88 HBa + 1.5 HBa
42-48 HBa + 2.5 HBa
Weight 1 kg (Batteries not included)

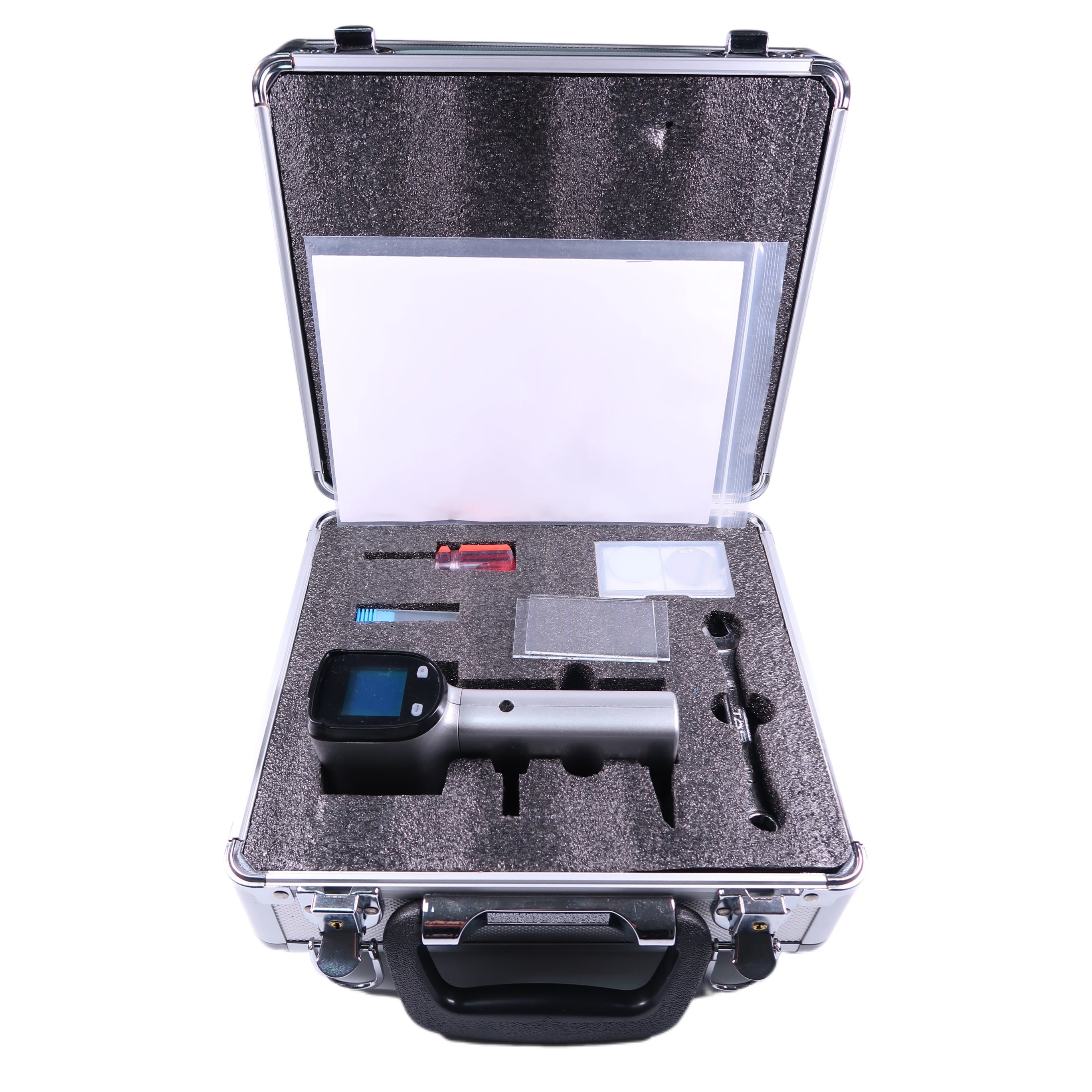

Standard Configuration
  • Host
  • Foot
  • 2 hardness blocks
  • 2 pressing needles
  • Wrench
  • Bolt driver
  • Instrument box
