High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
Specifications
Model Number :
THL600
Warranty :
2 years
MOQ :
1
Delivery Time :
7 work days
Dimensions :
120*60*31mm (main unit)
Brand Name :
TMTECK
Services :
OEM, ODM, OBM
Packaging Details :
Carton
Payment Terms :
T/T
Price :
Negotiation
Relative humidity :
≤90%
Supply Ability :
50 pieces within one week
Certification :
EN ISO 16859-2016
Hardness scale :
HL, HB, HRB, HRC, HRA, HV, HS
Place of Origin :
China
Measuring range :
HLD（170～960）
Description
High Precision Hardness Tester THL600
Product Overview

The THL600 High Precision Hardness Tester is a professional-grade instrument designed for accurate and reliable hardness testing across various metal materials and applications.

Key Features
  • 3-inch color display showing all functions and parameters
  • Converts to all common hardness scales (HV, HB, HRC, HRB, HRA, HS)
  • English display with easy and convenient menu operation
  • Powerful PC Software with USB 2.0 interface and USB Protective Membrane
  • 7 types of optional Impact Devices that don't require recalibration when changed
  • Memory capacity of 1200 data groups (impact times: 32-1)
  • Lower limit setting with sound alarm functionality
  • Added "cast steel" material type; HB values can be read directly when using D/DC impact device
  • Separate printer for on-demand printing of test results
  • Easy-to-change AA batteries for convenient transport
  • Inbuilt Software Calibration function
  • User-defined material curve function for special materials
  • Auto direction feature for simplified testing
Compliance Standards
  • National standard: GB/T 17394.1-2014; GB/T1172-1999
  • EU standard: DIN 50156-2007
  • ASTM standard: ASTM A956(2012)
Custom Material Curve Function

The custom material curve function allows adjustment of conversion tables based on actual measurement conditions, expanding the instrument's applicability and accuracy for special materials such as forged steel, rolled steel, alloy steel, or specially processed metal materials.

Auto Direction Feature
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
Customer Curve Interface
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
Calibration Options
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
Bluetooth Connectivity
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
Technical Specifications
Parameter Specification
Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS
Memory 48-600 groups (impact times: 32-1)
Measuring Range HLD(170-960)
Accuracy ±4HLD (760±30HLD) error of displayed value
Repeatability 4HLD (760±30HLD) repeatability of displayed value
Standard Impact Device D
Optional Impact Devices DC/D+15/G/C/DL/E
Max. Workpiece Hardness 996HV (For Impact Devices D/DC/DL/D+15/C)
Max. Workpiece Hardness 646HB (For Impact Device G)
Min. Radius of Workpiece Rmin = 50mm (with special support ring Rmin= 10mm)
Min. Workpiece Weight 2-5kg on stable support
Min. Workpiece Thickness 5mm (Impact Devices D/DC/DL/D+15)
Min. Workpiece Thickness 1mm (Impact Device C)
Min. Workpiece Thickness 10mm (Impact Device G)
Min. Thickness of Hardened Surface 0.8mm
Power AA battery
Continuous Working Time approx. 100 hours (no back light off)
Operating Temperature 0-40℃
Relative Humidity ≤90%
Overall Dimensions 120*60*31mm (main unit)

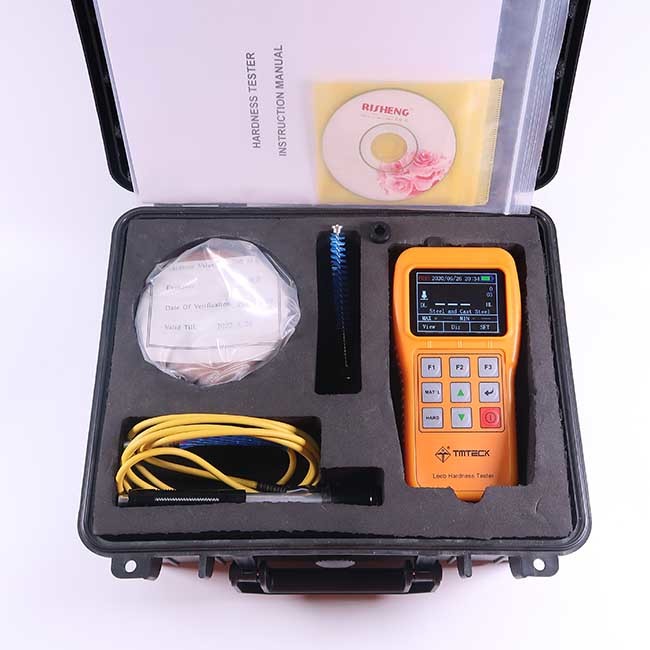

Standard Configuration
Seq Name Qty Remark
1 Main Unit 1 Standard configuration
2 Impact Device Type D 1 Standard configuration
3 Test Block Type D 1 Standard configuration
4 Cleaning Brush 1 Standard configuration
5 Supporting Ring 1 Standard configuration
6 Communication Cable 1 Standard configuration
7 Manual 1 Standard configuration
8 Carrying Case 1 Standard configuration
9 DataPro Software (USB) 1 Standard configuration
11 Bluetooth Printer 1 Optional configuration
High Precision Hardness Tester THL600 with 7 Types of Impact Device and 1200 Groups Data Memory
