Specifications
Model Number :
THL370
Warranty :
2 years
Packaging Details :
Carton
MOQ :
1
Delivery Time :
7 work days
Dimensions :
210mm*85mm*35mm
Brand Name :
TMTECK
Services :
OEM, ODM, OBM
Payment Terms :
T/T
Price :
Negotiation
Data memory :
600 groups max
Supply Ability :
50 pieces within one week
Certification :
EN ISO 16859-2016
Measuring range :
HLD（170～960)
Place of Origin :
China
Hardness scale :
HL,HB,HRB,HRC,HRA,HV,HS
Description
Portable Leeb Hardness Tester THL370
Product Overview

The THL370 Portable Leeb Hardness Tester represents the pinnacle of portable hardness testing technology, featuring the largest screen available in China and exceptional durability for industrial applications.

Key Advantages
  • 3-inch large screen display - the largest in China for easy reading and operation
  • Premium impact device with exceptional stability and aging resistance, tested for 2+ years of continuous use
  • 360-degree testing capability, including upside-down operation
  • Wide measuring range covering all metallic materials with direct display of HRB, HRC, HV, HB, HS, HL scales and strength values
  • Seven specialized impact devices with automatic identification
  • Large 600-group memory capacity with comprehensive data storage
  • Presettable upper and lower limits with automatic alarm system
  • Battery capacity indicator and charge status display
  • User calibration functionality
  • USB connectivity with multifunctional PC software
  • Integrated high-speed thermal printer for immediate data printing
  • NI-MH rechargeable battery with 150+ hours continuous operation
  • Auto power-off energy saving feature
  • 3-year guarantee with lifetime maintenance support
Main Applications
  • Mold die cavities and bearing components
  • Pressure vessel and steam generator failure analysis
  • Heavy workpieces and large-scale components
  • Permanently assembled machinery parts
  • Small hollow space surface testing
  • Metallic material identification in warehouse settings
  • Rapid testing across large workpieces with multiple measuring areas
Technical Specifications
Measuring Range HLD (170-960) HLD
Measuring Direction 360 degrees
Hardness Scales HL, HB, HRB, HRC, HRA, HV, HS
Display 3-inch screen
Data Memory 600 groups maximum
Printing Paper Width: 57.5±0.5mm, Diameter: 30mm
Battery Pack 6V NI-MH
Battery Charger 9V/500mA
Continuous Operation Approximately 150 hours
Communication Interface USB 1.1
Dimensions 210mm * 85mm * 35mm

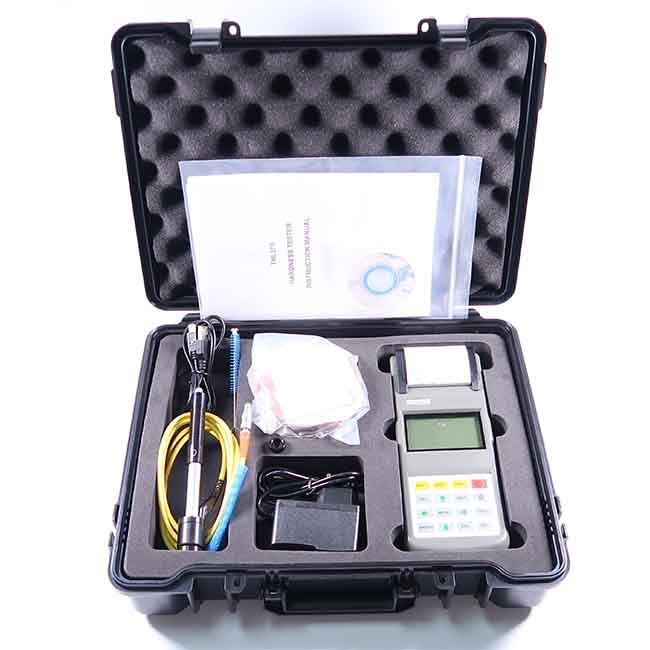

Standard Configuration
No. Item Quantity Remarks
1 Main Unit 1
2 D Type Impact Device 1 With cable
3 Standard Test Block 1
4 Cleaning Brush (I) 1
5 Small Support Ring 1
6 Battery Charger 1 9V 500mA
7 Paper for Printing 1
8 Manual 1
9 Instrument Case 1
10 Software 1
11 CD Cable 1
