Specifications
Model Number :
THL278
Warranty :
2 years
MOQ :
1
Delivery Time :
7 work days
Memory :
600 units
Brand Name :
TMTECK
Services :
OEM, ODM, OBM
Packaging Details :
Carton
Payment Terms :
T/T
Certification :
EN ISO 16859-2016
Hardness Scale :
HLD, HB, HRC, HRB, HV, HS
Price :
Negotiation
Power :
Li battery
Supply Ability :
50 pieces within one week
Place of Origin :
China
Accuracy :
±4HLD(760 ±30HLD)
Description

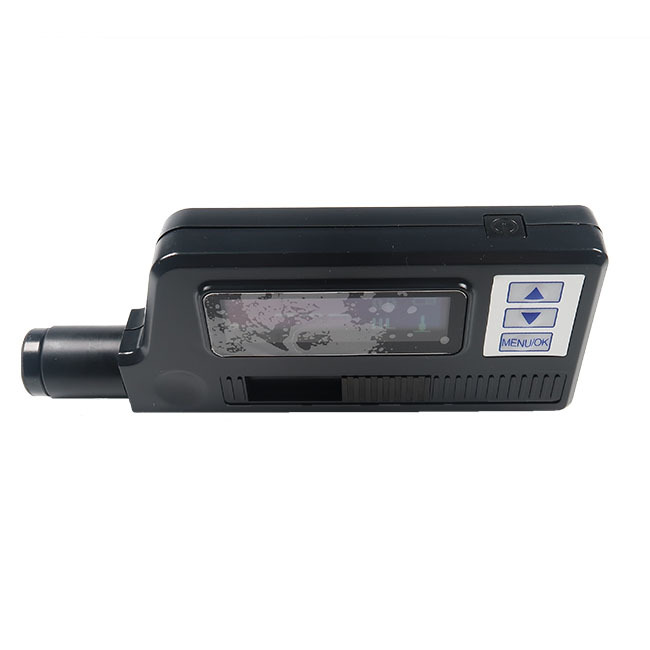

Leeb Hardness Tester THL278 with Bluetooth Function
Product Overview

The Leeb Hardness Tester THL278 is a professional-grade portable hardness testing instrument featuring Bluetooth connectivity and advanced measurement capabilities for industrial applications.

Key Features
  • OLED display with 128×32 matrix resolution
  • Converts to all common hardness scales (HL, HV, HB, HRC, HRB, HRA, HS)
  • Easy-to-use menu driven system
  • Mini USB interface with multiple communication modes
  • Memory capacity of 600 data groups
  • Preset upper and lower hardness limits with alarm function
  • Test value software calibration function
  • 3.7V rechargeable Li-ion battery power
  • Approximately 60 hours continuous working period
  • Compatible with impact devices: C, DC, G, D+15, DL, E
  • Smart and skid-proof ergonomic design
  • Charging indicator
  • THL270 model includes integrated D impact device
Technical Specifications
Parameter Specification
Model THL278
Impact Device D integrated
Hardness Scales HLD, HB, HRC, HRB, HV, HS
Accuracy ±4HLD (760 ±30HLD)
Memory 600 units
Output USB
Surface Roughness 1.6 μ (Ra)
Max Workpiece Hardness 900HLD
Min Radius (convex/concave) Rmin = 50mm (with support ring Rmin= 10mm)
Min Workpiece Weight 2~5kg on stable support, 0.05~2kg with compact coupling
Min Workpiece Thickness 5mm
Min Hardened Layer Thickness 0.8mm
Continuous Working Time 60 hours (without backlight)
Power Li-ion battery
Operating Temperature 0~40℃
Dimensions 155mm × 60mm × 23mm
Weight 200g
Main Applications
  • Assembled machinery and permanently installed parts
  • Die cavity of molds
  • Heavy workpieces
  • Failure analysis of pressure vessels, steam turbo-generator sets and other large equipment
  • Testing of parts in confined areas or on gear teeth
  • Bearings and other precision components
  • Material identification in metal material warehouses
Standard Configuration
Seq Item Quantity Remark
1 Main Unit 1
2 Small Supporting Ring 1
3 Standard Test Block 1
4 Cleaning Brush 1
5 Charger 1
6 Communication Cable 1
7 Data Software 1
8 Calibration Certificate 1
9 Warranty Card 1
10 Manual 1
11 Carrying Case 1
12 Bluetooth Printer 1
Optional Accessories
Seq Item Quantity Remark
13 Other Types Impact Device: C, DC, G, D+15, DL 1
14 All kinds of special support rings 1
Design Note: The product uses an internationally popular streamlined plastic shell with ergonomic design. Surface features anti-skid treatment for fine, soft feel. Lightweight and durable construction with excellent resistance to electromagnetic interference and vibration.
Compliance Standards
  • National Standard: GB/T 17394.1-2014; GB/T1172-1999
  • EU Standard: EN ISO 16859-2016
  • ASTM Standard: ASTM A956 (2012)
