TSW-20 Series Digital Display Webster Hardness Tester with 0-20HW Range for Portable Aluminum Alloy Testing
TSW-20 Series Digital Display Webster Hardness Tester with 0-20HW Range for Portable Aluminum Alloy Testing
TSW-20 Series Digital Display Webster Hardness Tester with 0-20HW Range for Portable Aluminum Alloy Testing
TSW-20 Series Digital Display Webster Hardness Tester with 0-20HW Range for Portable Aluminum Alloy Testing
TSW-20 Series Digital Display Webster Hardness Tester with 0-20HW Range for Portable Aluminum Alloy Testing
TSW-20 Series Digital Display Webster Hardness Tester with 0-20HW Range for Portable Aluminum Alloy Testing
TSW-20 Series Digital Display Webster Hardness Tester with 0-20HW Range for Portable Aluminum Alloy Testing
TSW-20 Series Digital Display Webster Hardness Tester with 0-20HW Range for Portable Aluminum Alloy Testing
TSW-20 Series Digital Display Webster Hardness Tester with 0-20HW Range for Portable Aluminum Alloy Testing
TSW-20 Series Digital Display Webster Hardness Tester with 0-20HW Range for Portable Aluminum Alloy Testing
Specifications
Accuracy :
±0.5HW
Model Number :
TSW-20/TSW-20a/TSW-20b
Service :
OEM, ODM, OBM
MOQ :
1
Delivery Time :
7 work days
Testing Range :
0-20HW
Brand Name :
TMTECK
Packaging Details :
Carton
Payment Terms :
T/T
Warranty :
2 years
Price :
Negotiation
Supply Ability :
50 pieces within one week
Display resolution :
0.1HW
Certification :
CE
Measuring range :
equivalent to 20~110HRE
Place of Origin :
China
Description
TSW-20 Series Digital Display Webster Hardness Tester
Digital Webster Hardness Tester

The TSW-20 series digital display Webster hardness tester (also known as clamp hardness tester) is a portable instrument designed for rapid on-site hardness testing of aluminum alloys. Testing is quick and straightforward—simply clamp the device, and the hardness value is displayed directly. This instrument is ideal for determining whether workpieces have undergone heat treatment, verifying heat treatment effectiveness, identifying inappropriate alloy usage, and testing large or assembled components that cannot be easily transported to a laboratory. Primarily used for measuring aluminum alloy hardness (1100~7075 series), it serves production inspection, acceptance testing, and quality supervision applications.

Key Features
  • Suitable for testing aluminum alloy profiles, pipes, and plates
  • Ideal for rapid, non-destructive qualification inspection at production sites, sales locations, or construction sites
  • Quick and direct hardness value display
  • Webster hardness values can be converted to Vickers, Rockwell, Brinell hardness, and tensile strength values
Technical Parameters
  • Range: 0-20HW
  • Accuracy: ±0.5HW
  • Display resolution: 0.1HW
  • Measuring range: Equivalent to 20~110HRE
TSW-20 Series Model Selection
Model Sample Size/Diameter (mm) Net Weight (Kg) Total Weight (Kg) Packaging Size (mm)
TSW-20 Plates with thickness ≤6, pipes with inner diameter ≥10 0.5 1.1 280×230×80
TSW-20a Plates with thickness ≤13, pipes with inner diameter ≥10 0.5 1.1 280×230×80
TSW-20b Plates with thickness ≤8, pipes with inner diameter ≥6 0.5 1.1 280×230×80

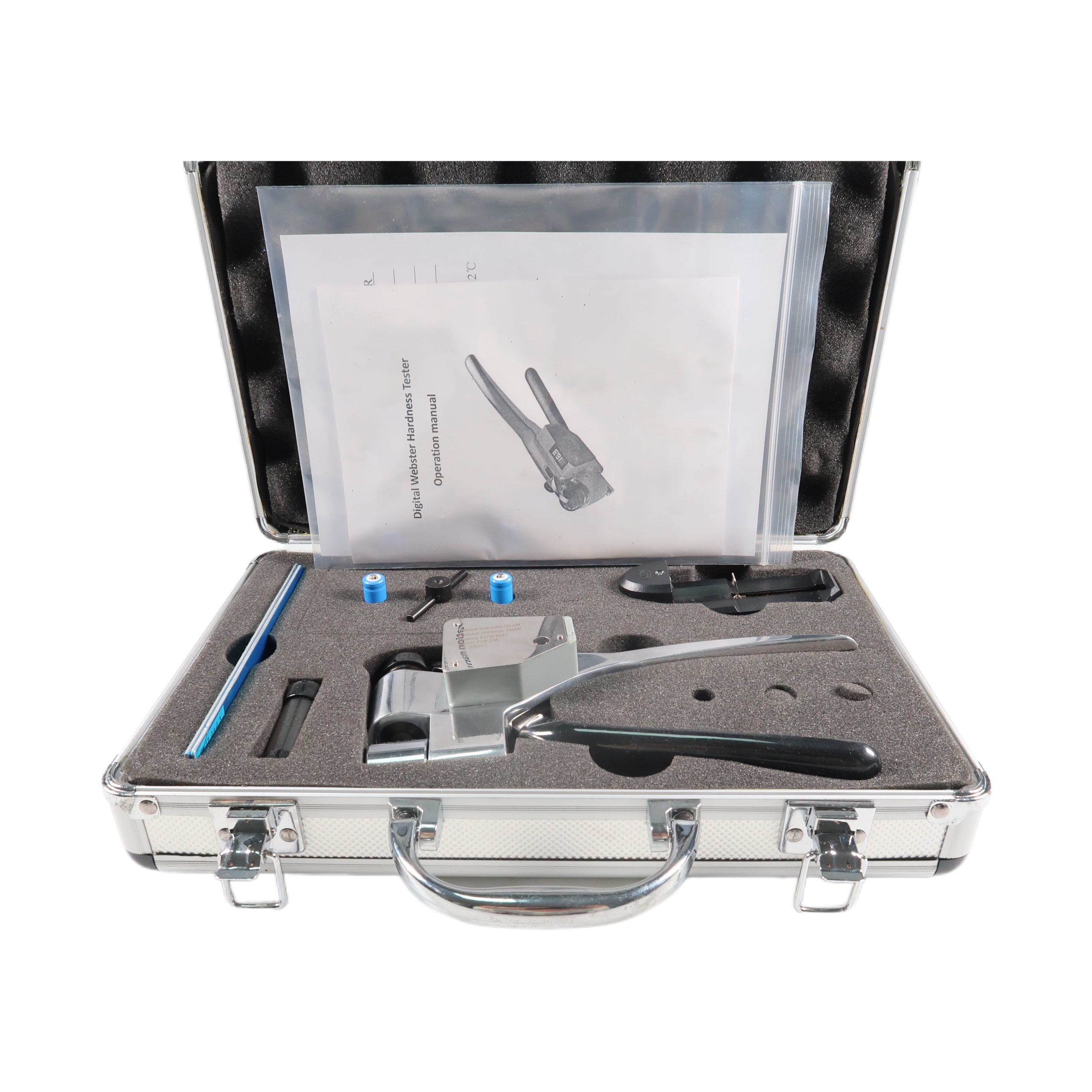

Standard Configuration
  • Host: 1 set
  • Standard hardness block: 2 pieces
  • Spare pressure needle: 1 stick
  • Correction wrench: 1
  • Charger: 1
  • Rechargeable Battery: 1
  • Instrument case: 1
  • Manual: 1
Optional Accessories
  • Pressure needle
  • Standard hardness block
