Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
Specifications
Services :
OEM, ODM, OBM
Model Number :
THL210
Memory :
48～600 groups （impact times: 32～1）
MOQ :
1
Packaging Details :
Carton
Payment Terms :
T/T
Brand Name :
TMTECK
Operating temperature :
0~40℃
Supply Ability :
50 pieces within one week
Delivery Time :
7 work days
Warranty :
2 years
Certification :
EN ISO 16859-2016
Standard Impact Device :
D
Price :
Negotiation
Hardness scale :
HL, HB, HRB, HRC, HRA, HV, HS
Place of Origin :
China
Description
Leeb Hardness Tester THL210

Professional Leeb hardness tester with advanced features for accurate material hardness measurement and analysis.

Key Features
  • 128*64 matrix LCD display with back-light showing all functions and parameters
  • Converts to all common hardness scales (HV, HB, HRC, HRB, HRA, HS)
  • English display with easy menu operation
  • Powerful PC software with USB 1.0 interface and protective membrane
  • 7 types of impact devices available without recalibration
  • Memory capacity of 600 data groups (impact times: 32-1)
  • Lower limit setting with sound alarm function
  • Added "cast steel" material type with direct HB value reading using D/DC impact device
  • Separate printer for on-demand test result printing
  • AAA battery operation with USB charging capability
  • Built-in software calibration function
Technical Specifications
Hardness Scale HL, HB, HRB, HRC, HRA, HV, HS
Memory 48-600 groups (impact times: 32-1)
Measuring Range HLD(170-960)
Accuracy ±4HLD (760±30HLD) error of displayed value
Standard Impact Device D
Optional Impact Devices DC/D+15/G/C/DL
Min. Radius of Workpiece Rmin = 50mm (with special support ring Rmin= 10mm)
Min. Workpiece Weight 2-5kg on stable support
0.05-2kg with compact coupling
Min. Workpiece Thickness 5mm (Impact Devices D/DC/DL/D+15)
1mm (Impact Device C)
10mm (Impact Device G)
Min. Thickness of Hardened Surface 0.8mm
Power Normal AA Battery
Continuous Working Time approx. 100 hours (no back light off)
Operating Temperature 0-40℃
Relative Humidity ≤90%
Overall Dimensions 125*67*31mm (main unit)
Weight 0.3kg (main unit)

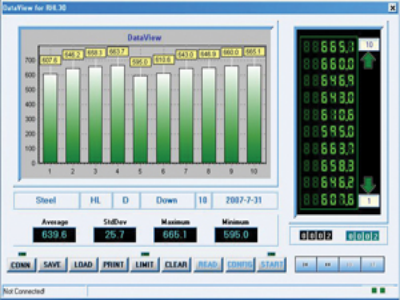

Data Pro Software
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface

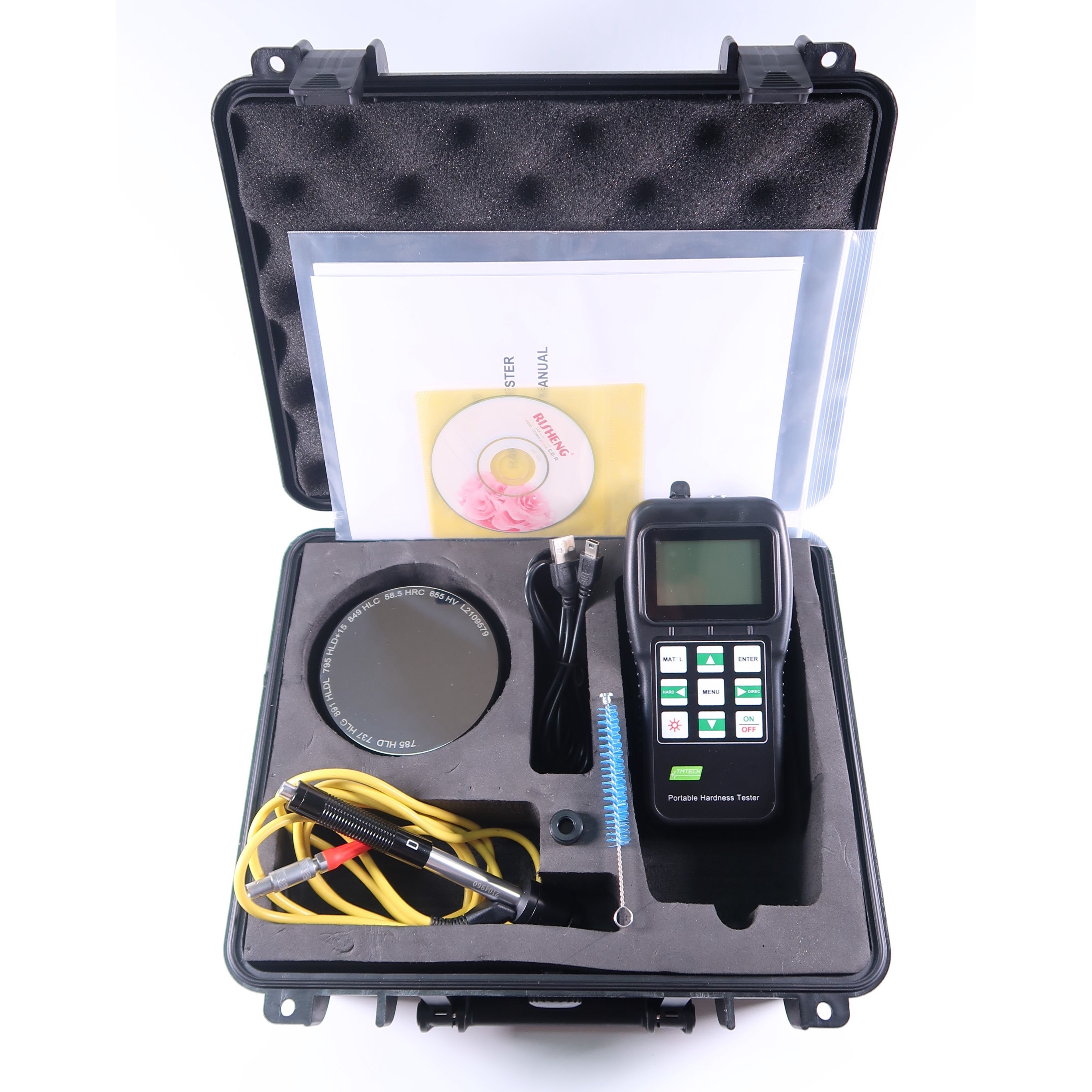

Standard Configuration
Seq Name Qty Remark
1 THL210 Main Unit 1 Standard configuration
2 Impact Device Type D 1 Standard configuration
3 Leeb Standard Test Block 1 Standard configuration
4 Cleaning Brush 1 Standard configuration
5 Supporting Ring 1 Standard configuration
6 Communication Cable 1 Standard configuration
7 Manual 1 Standard configuration
8 Carrying Case 1 Standard configuration
9 THL210 DataPro Software(USB) 1 Standard configuration
10 Mini-printer 1 Optional configuration
Leeb Hardness Tester THL210 with 600 Groups Data Memory, 7 Types of Impact Device, and USB Interface
