Specifications
Model Number :
TM282
MOQ :
1pc
Delivery Time :
3-5 working days
Service :
OEM, ODM, OBM
Brand Name :
TMTeck
Packaging Details :
Carton; 30*15*25cm; 2.5kg
Payment Terms :
T/T,Western Union,paypal
Material Velocity Range :
500 to 9999m/s(0.0197 to 0.3939 in/μs)
Units :
Inch or Millimeter
Price :
Negotiation
Operating Temperature :
-10℃ to +50℃(+10°F to +12°F )
Supply Ability :
100PCS/Two weeks
Rectify Mode :
RF+, RF-, HALF+, HALF-, FULL
Certification :
CE
Size :
158mm × 76mm × 37mm (H × W × D)
Place of Origin :
China
Description
TM282 Series Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software
Professional Ultrasonic Thickness Measurement Solution

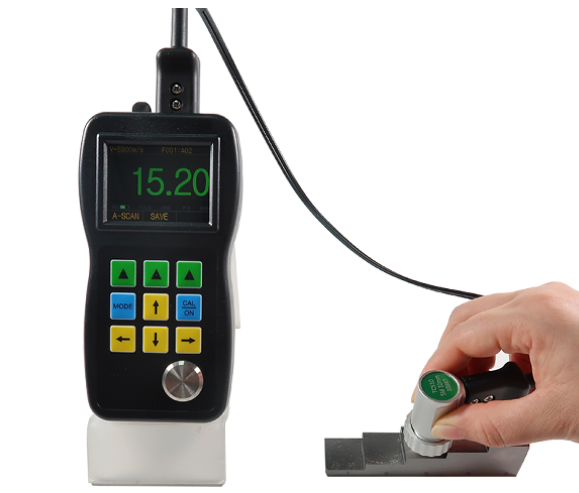

TM282 Color Screen A/B-Scan Ultrasonic Thickness Gauge is professionally designed for solving various difficult thickness measurement applications in industrial settings.

TM282 Series Ultrasonic Thickness Gauge with A&B Scan Through Coating and Software for Precise Thickness Measurement
Key Features
Live Color A-Scan
TM282 Series Ultrasonic Thickness Gauge with A&B Scan Through Coating and Software for Precise Thickness Measurement

Direct visualization of ultrasonic waveform (A-scan) in color on screen. Essential for verifying testing result accuracy and troubleshooting measurement issues. Adjustable GAIN, BLACKING, and GATE parameters for optimal readings.

Live Color B-Scan
TM282 Series Ultrasonic Thickness Gauge with A&B Scan Through Coating and Software for Precise Thickness Measurement

Time-based B-scan function displays cross-sectional profile of workpiece. Automatically captures minimum values with red triangle indicators. Point-to-point thickness measurement capability across the B-scan image.

Through Coating Function

Eliminates the need for coating removal. Achieved by measuring two continuous bottom surfaces of the substrate with significant advantages:

  • No zero calibration required
  • High stability - unaffected by probe pressure, coupling layer thickness, or surface dust
  • Zero drift prevention
Power-Cutting Function
TM282 Series Ultrasonic Thickness Gauge with A&B Scan Through Coating and Software for Precise Thickness Measurement

Dedicated power-cutting button extends battery life by conserving energy during extended periods of non-use.

Advanced Functionality
  • Difference/Reduction Rate: Displays variance from normal values and calculates thickness reduction percentage
  • Information Display: LOS, min, max, large reading, velocity, zero, calibration, units, freeze, battery life, gain levels, echo symbols
  • Max./Min. Capture: Simultaneous display of current, minimum, and maximum thickness values
  • Alarm Mode: Dynamic color changes for thickness readings during alarm conditions
  • Update Rate: Selectable 4Hz, 8Hz, and 16Hz for various application needs
  • Multi-Language Support: Chinese, English, Spanish, German
  • Echo to Echo: Measures metal thickness only, ignoring paint and coatings
  • Data Logger: 99,999 thickness data points with ID in linear or grid files (400 files capacity)
  • Output: USB 2.0 full speed connector with DataView report software
  • Display: 2.4" color OLED, 320 × 240 pixels, 10,000:1 contrast ratio
  • Dimensions: 156mm (L) × 76mm (W) × 38mm (H)
  • Weight: 285g
  • Operating Temperature: -10°C to 50°C

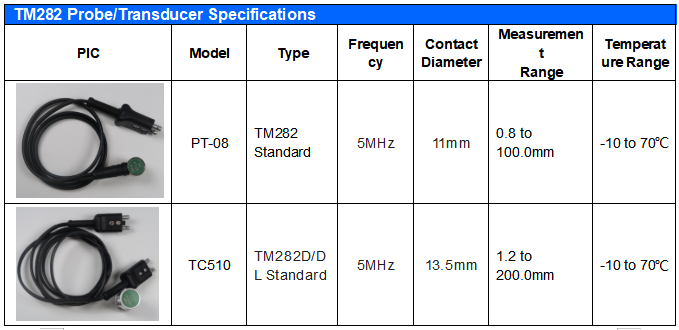

Standard TC510 Probe

High-performance piezoelectric ceramic chip with integrated metal die-casting shell. Features practical probe and cable separation design for maximum durability and performance.

TM282 Series Comparison
Feature TM282 TM282D TM282DL
Color Display ✓ ✓ ✓
Live A-Scan ✓ ✓ ✓
Time-based B-Scan ✓ ✓ ✓
Control of Gain and Gate ✓ ✓ ✓
Blanking ✓ ✓ ✓
Thru-paint & Coatings × ✓ ✓
Data Logger × × ✓
DataView Software × × ✓
TM282DL Technical Specifications
Display Type 2.4" color OLED, 320×240 pixels, display contrast 10,000:1
Operating Principle Pulse echo with dual element transducers
Measuring Range 0.50mm to 508mm (0.02" to 20.00"), depending on material, probe and surface condition; E-E Mode: 3-50mm under condition
Measuring Resolution Selectable 0.01mm, 0.1mm (selectable 0.001", 0.01")
Units Inch or Millimeter
Rectify Mode RF+, RF-, HALF+, HALF-, FULL
Display Mode Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction Automatic
Update Rate Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range 500 to 9999m/s (0.0197 to 0.3939 in/μs)
Languages English, French, German, Spanish, Chinese
Alarm Settings Minimum and Maximum alarms. Range of 0.25mm to 508mm (0.010" to 20.00"). Dynamic waveform color change on alarm
Power Requirements 2 AA size batteries
Operating Time Approximately 40 hours
Instrument Shut-off Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature -10℃ to +50℃ (+10°F to +12°F)
Size 158mm × 76mm × 37mm (H × W × D)
Weight 285g including batteries
Standard Delivery Contents - TM282DL
Component Quantity
Main body 1
Probe 1
Battery 1
Couplant 1
Carrying Case 1
Operating Manual 1
USB Cable 1
Software 1
