600r/Min TMS-6000 Metallographic Specimen Cutting Machine
600r/Min TMS-6000 Metallographic Specimen Cutting Machine
Specifications
Brand Name :
TMTeck
Model Number :
TMS-6000
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/month
Delivery Time :
7-15 days
Packaging Details :
1pc/carton box
Model :
TMS-6000
Moving frame stroke :
25MM
positioning accuracy :
0.01MM
Spindle revolution :
0-600r/min
Saw blade diameter :
Φ100*0.3*12.7mm
Power :
50W
Description

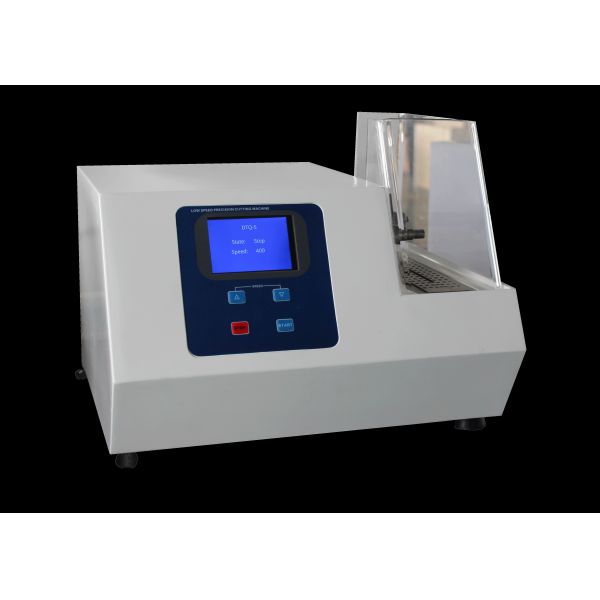

Metallographic low-speed cutting machine TMS-6000

600r/Min TMS-6000 Metallographic Specimen Cutting Machine

Purpose and characteristics of cutting machine

The TMS-6000 low-speed precision cutting machine is suitable for precise cutting of various hard materials, especially for the cutting of high-value brittle intraocular lenses.

The equipment is equipped with four fixtures, which can position and cut the processed object at the best angle. It is equipped with a limit switch to realize unattended processing. The spindle runs with high precision and can accurately fine-tune the horizontal feed position of the processed object. It will automatically shut down after cutting.

Main Specifications

  1. Moving frame stroke:25mm
  2. positioning accuracy:0.01mm
  3. Spindle revolution:0-600r/min
  4. Saw blade diameter:Φ100*0.3*12.7mm
  5. Power:50W
  6. Voltage:220V
  7. Dimensions:415*340*270mm
  8. Weight:18.5kg
