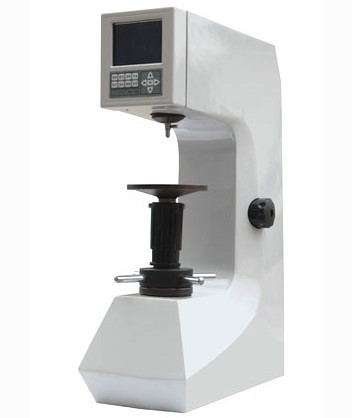

Analog Digital Rockwell Hardness Tester steady reliable Curved Surface testing
Analog Digital Rockwell Hardness Tester steady reliable Curved Surface testing
Specifications
Brand Name :
Tmteck
Model Number :
200HRS-150
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100pcs/month
Delivery Time :
5-8 days
Packaging Details :
1pc/wooden case
Price :
Negotiation
Min. scale value :
0.1HR
test force :
588.4, 980.7, 1471N (60,100,150kgf)
Max height of speciments :
210mm
Depth of throa :
165mm
Dimensions :
522 x 220 x 729mm
Power Supply :
220V AC or 110V AC, 50 or 60Hz
Description

200HRS-150 DIGITAL DISPLAY ROCKWELL HARDNESS TESTER

Feature & Use

* Optimized mechanical frame, automatic testing process, large LCD digital display

* RS232 data interface (optional)

* The measured hardness can be converted to HRA, HRB, HRC, HV, HR15N, HR30N, HR45N, HBW etc.

* It's steady and reliable for testing of curved surface

* Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

It's suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Specifications

Measuring range 20-88HRA, 20-100HRB, 20-70HRC
Test force 588.4, 980.7, 1471N (60,100,150kgf)
Max. height of test piece 210mm
Depth of throat 165mm
Unit for display 0.1HR
Power supply 220V AC or 110V AC, 50 or 60Hz
Dimensions 522 x 220 x 729mm
Net weight approx. 68 kg

Standard accessories

Large flat anvil 1 pc.
Small flat anvil 1 pc.
V-notch anvil 1 pc
Diamond cone penetrator 1 pc.
1/16" steel ball penetrator 1 pc.
Rockwell standardized block 5 pcs.
Printer 1 pc.
