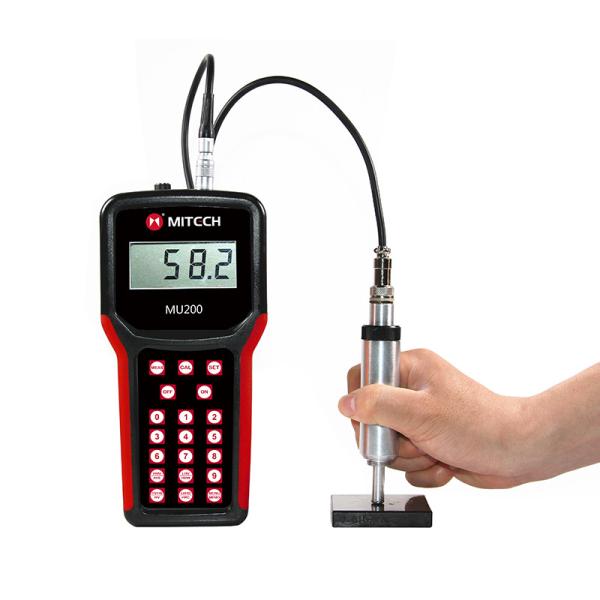

High Accuracy Ultrasonic Hardness Tester With Reasonable Internal Structure MU200
High Accuracy Ultrasonic Hardness Tester With Reasonable Internal Structure MU200
High Accuracy Ultrasonic Hardness Tester With Reasonable Internal Structure MU200
High Accuracy Ultrasonic Hardness Tester With Reasonable Internal Structure MU200
Specifications
Brand Name :
Mitech
Model Number :
MU200
Certification :
CE,GOST,ISO..
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
300 sets per month
Delivery Time :
After recieved payment
Packaging Details :
ABS instrument case in the carton box
Display precision :
0.1HRC
Measurement direction :
360 °（vertical, horizontal and slant）
Contact pressure :
evenly contact pressure 12N±1N(adjustable)
Adaptable Power :
AC220V ±10%, DC 5V chargeable batteries
Roughness :
Ra≤3.2
Main unit weight :
280g
Description

Mitech Ultrasonic Hardness Tester La dureza de ultrasonidos convert HB HRC HV Measurement scope and high accuracy

Applications

  • Mold cavity;
  • Bearings and other parts;
  • Failure analysis of pressure vessels, turbo-generator units and their equipment;
  • Heavy duty parts;
  • Installed mechanical or permanent assembly parts;
  • Test space being small;
  • Material distinction of Metal material;
  • Rapid test of large workpiece for multi-point measurement

High Accuracy Ultrasonic Hardness Tester With Reasonable Internal Structure MU200

Technical Parameters

Measurement scope

HRC(10-80) HB (200-550) HV (200-999)

Display precision

0.1HRC

Measurement precision

±1.5HRC

Measurement direction

360 °(vertical, horizontal and slant)

Roughness

Ra≤3.2

Configuration:

NUM. Name QUA. Tips
1 Standard config Main unit 1
2 Probe 1
3 Cable 1
4 Standard Block 2
5 Battery 1 Placed in the main unit
6 AC adapter 1
7 ABS case 1
8 Booklet 1
9 Optional config B-Probe 1 Other customized probes are also available.

Structure of Appearance

High Accuracy Ultrasonic Hardness Tester With Reasonable Internal Structure MU200

1 Instrument host 2 Probe

3 Operation button 4 Display screen

High Accuracy Ultrasonic Hardness Tester With Reasonable Internal Structure MU200
