MITECH Industrial NDT RT Testing Panoramic X-Ray Flaw Detector XXHA-2505

Product Overview
The X-ray Flaw Detector can be widely used in shipbuilding, machinery manufacturing, aviation, pressure vessels, boilers, oil pipe, chemical, defense industry and other departments for non-destructive testing. X-ray Flaw Detector is suitable to construction site operation and factory lab operation.

Glass Tube Circumferential Cone Target Series

Working Conditions
Environment temperature: -25℃-40℃
Relative humidity: no bigger than 85%
Safe work pressure: 0.35-0.50mPa
Note, Do not use when the pressure is under 0.35mPa

The Emission of X-ray

Figure 1 Figure 2

Figure 3 Figure 4

Figure 1:Glass tube circumferential target generator
Figure 2:Ceramic tube directional generator
Figure 3:Glass tube circumferential cone target generator
Figure 4:Glass tube directional generator



Generator Structure


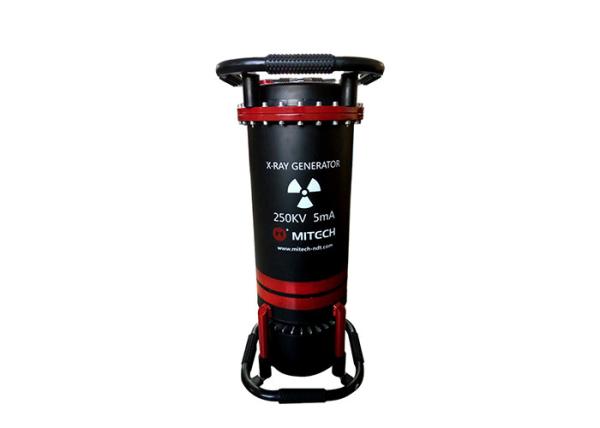

1 Gas pressure gauge 2 Cable line socket
3 Caution light 4 X ray generate area
5 Cooler fan

Controller Structure



1 Fault code and exposure chart 2 Standby light
3 HV light 4 Digital display
5 Time knob 6 KV presetting knob
7 “HV on” key 8 “HV off” key
9 Power switch 10 Connection cable socket
11 Power cable socket 12 Earthing wire
13 Fuse holder(3A)
