Selecting Probe Handheld Vibration Meter With 6F22 9v Packed Cells MV800
Selecting Probe Handheld Vibration Meter With 6F22 9v Packed Cells MV800
Specifications
Brand Name :
MITECH
Model Number :
MV800
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500 pieces per week
Delivery Time :
3-5 work days
Packaging Details :
Standard carton
Frequency range :
10Hz~10KHz
Output signal :
AC 2v(peak value, full measurement above 10k)
Sampling period :
1s
Measurement range(acceleration) :
0.1~199.9m/s2(peak value: valid value*√2)
Power model :
6F22 9v packed cells
Vibration pickup :
separated charge-amplifier and build-in acceleration transducer
Description

Select of Probe

The principle of selecting probe

When measure the displacement, speed, acceleration of low frequency 10Hz~1KHz, select long probe, when measure the displacement, speed, acceleration of high frequency of 1KHz~10KHz, select short probe, short probe also used to maintain the reliable accuracy, when there is a flat frequency above 1KHz, there is no need to use probe.

Short probe

Short probe is necessary for frequency of 10Hz~10KHz. It is more reliable.

Selecting Probe Handheld Vibration Meter With 6F22 9v Packed Cells MV800

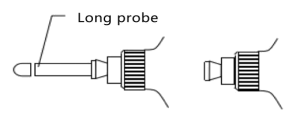

Long probe

When the short probe is hard to test, use 8cm long probe. In low frequency of 10~1KHz, long probe has good response, above 1KHz, the response will reduce.

Selecting Probe Handheld Vibration Meter With 6F22 9v Packed Cells MV800

No probe

It is ok when the surface is well connected, if the sensor and workpiece is not well connected, the response frequency can’t be guaranteed. If the surface is rough, cover some wax to guarantee the frequency response.

Technical Parameters

Vibration sensor separated charge-amplifier and build-in acceleration transducer
Measurement range(displacement) 0.001~1.999mm(Peak to peak: valid value*2√2)
Measurement range(speed) 0.1~199.9mm/s (valid value)
Measurement range(acceleration) 0.1~199.9m/s2(peak value: valid value*√2)
Measurement accuracy ±5% measured value
Indication error ±2
Frequency range 10Hz~10KHz
Display mode 3-digit Semi liquid crystal display
Sampling period 1s
Output signal AC 2v(peak value, full measurement above 10k)
Dimensions 185mm*68mm*30mm
Power model 6F22 9v packed cells
Battery life continuous use for 30 hours

Selecting Probe Handheld Vibration Meter With 6F22 9v Packed Cells MV800
