Handheld Industrial X Ray Equipment 6500K Limited Color Temperature LED Film Processing Machine
Handheld Industrial X Ray Equipment 6500K Limited Color Temperature LED Film Processing Machine
Handheld Industrial X Ray Equipment 6500K Limited Color Temperature LED Film Processing Machine
Handheld Industrial X Ray Equipment 6500K Limited Color Temperature LED Film Processing Machine
Handheld Industrial X Ray Equipment 6500K Limited Color Temperature LED Film Processing Machine
Handheld Industrial X Ray Equipment 6500K Limited Color Temperature LED Film Processing Machine
Specifications
Brand Name :
Mitech
Model Number :
MG100
Certification :
ISO9001
Place of Origin :
Beijing,China
MOQ :
1 set
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100 pieces per day
Delivery Time :
5-8 days
Packaging Details :
Metal box
Maximum brightness :
≥400，000LUX
The maximum blackness value can be observed :
≥5.0D
Uniformity coefficient :
g≥0.9
Scattering coefficient :
≥0.9
Work 12 hours continuously of maximum brightness, the surface temperature rise :
≤60℃
Observation window :
253mm*68mm
Description

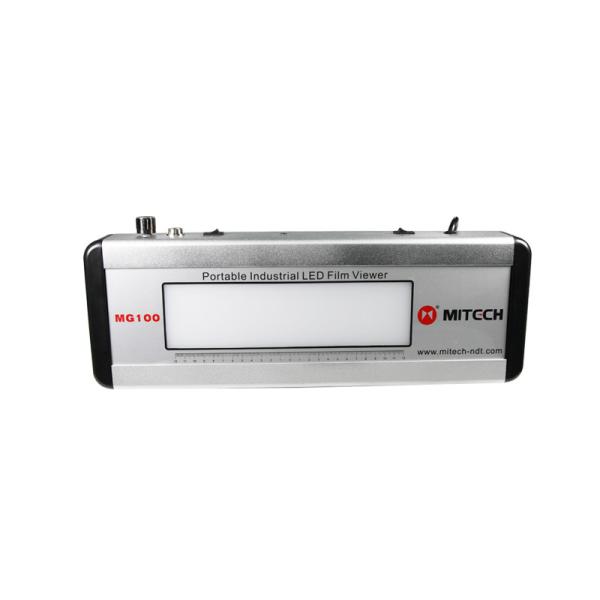

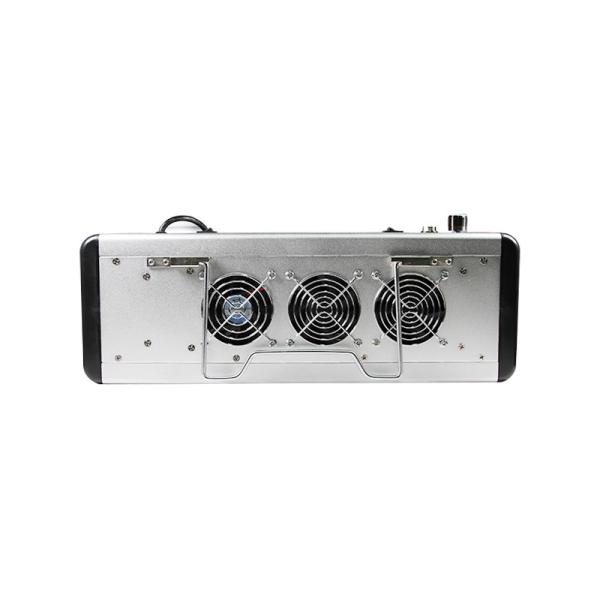

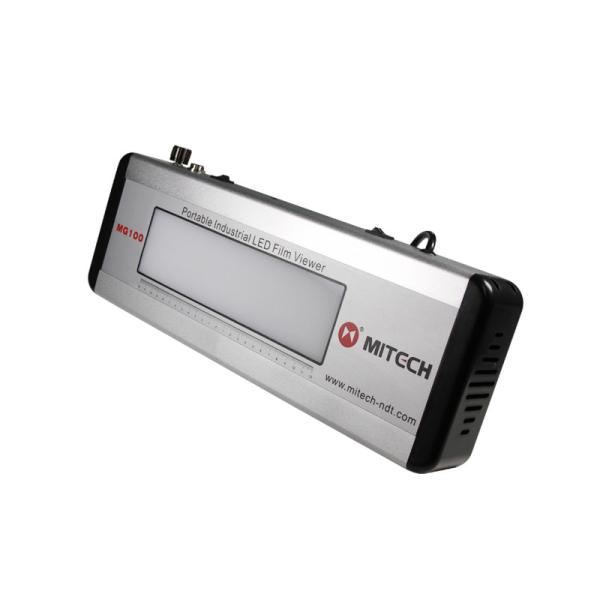

Overview of the Portable LED film viewer

Mitech MG100 portable LED film viewer,can check the X-ray film one by one. With high-power LED light source, surface observation screen acrylic material, stable performance, strong structure, high uniformity, simple operation, user-friendly LED limit temperature, stepless dimming, can meet the needs better,which is widely used in X Ray detection for film observation and evaluation.It is the necessary professional precision testing equipment for improving production efficiency and saving production costs.

Technical Parameters

Technical Specificatons Technical Parameters
Maximum brightness ≥400,000LUX
The maximum blackness value can be observed ≥5.0D
Uniformity coefficient g≥0.9
Scattering coefficient ≥0.9
Work 12 hours continuously of maximum brightness, the surface temperature rise ≤60℃
Observation window 253mm*68mm
Rated power 200W
Power supply AC170～240V,47～63Hz
Dimension 464*76*177mm
Total Weight 3.4kg

Features

  • Widely used in the field of industrial testing and evaluation of radiation film negatives;
  • Use high power LED light source, high brightness, uniformity is good;
  • Compact design, durable, suitable for field mobility work;
  • Use acrylic plate on the screen, good light transmission, diffuse scattering performance, durable;
  • Can clearly observe the 5.0D above the black film on the small defects, which meet the daily needs;
  • limited color temperature within 6500K LED,do not hurt the eyes,Long time use is not easy to fatigue；
  • Through the low-voltage electronic pulse width modulation, can achieve brightness stepless dimming, more to protect the safety of users;
  • The use of advanced constant current drive, greatly extending the service life (up to 50,000 hours or more);
  • With pedal mode and manual mode, to meet the different working habits, energy saving and environmental protection;
  • Consistent with JB/T4730-2005,GB/T 19802-2005 and other relevant domestic and foreign standards.Handheld Industrial X Ray Equipment 6500K Limited Color Temperature LED Film Processing Machine
