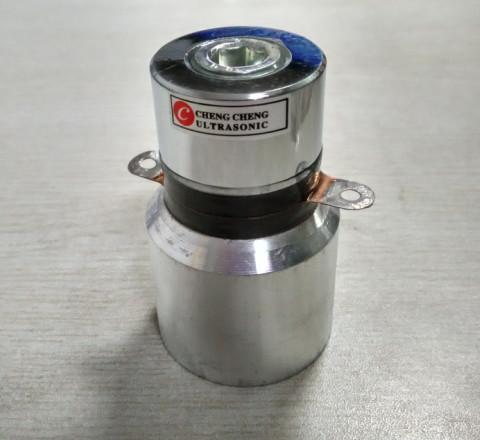

Cleaner 25k 100w Piezoelectric Ultrasonic Transducer
Cleaner 25k 100w Piezoelectric Ultrasonic Transducer
Specifications
Brand Name :
BJCCWY
Model Number :
100w 28k
Certification :
ISO9001, CE, RoHs
Place of Origin :
China
MOQ :
1pc
Price :
5.8-7.5USD
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000000
Delivery Time :
3-5 days
Packaging Details :
Carton or wooden case
Products :
Ultrasonic cleaning transducer
Frequency :
25K
Power :
100W
Material :
Aluminum, Stainless steel
Usage :
Cleaner
Height :
66mm
Description

Cleaner Piezoelectric Transducer Ultrasound transducer Senor

Features

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt.Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.

Naming methods as following

Type

Length(mm)

Weight (g)

Frequency(KHz)±4%

Resonance Impedance

(Ω)

Static Capacity

(pF)±10%

Input Power(W)

CCH-7145D-20LA PZT-8

94

900

20

≤20

5200

100
CCH-6645D-25LB PZT-4

77

717

25

≤20

6800

100
CCH-6650D-28LB PZT-4

69

746

28

≤20

 7900

120
CCH-6645D-28LB PZT-8

66

625

28

≤20

5200

100
CCH-6645D-28LB PZT-4

66

614

28

≤20

6800

100
CCH-6645D-30L PZT-8

64

551

30

≤20

 5200

100
