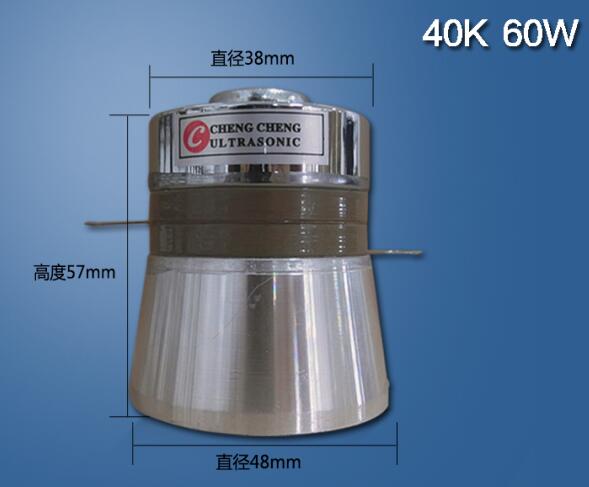

40Khz 60W Ultrasonic Cleaning Transducer With Screw Hole , High Efficiency
40Khz 60W Ultrasonic Cleaning Transducer With Screw Hole , High Efficiency
Specifications
Brand Name :
CCWY
Model Number :
CCWY
Certification :
CE ROSH TUV
Place of Origin :
CN
MOQ :
1PCS
Payment Terms :
T/T
Supply Ability :
20.000.000 PER MONTH
Delivery Time :
On stock
Packaging Details :
CARTON
Item :
CCH-6850D-28LB Pzt-4
Length(mm) :
66
Weight(g) :
720
Frequency(KHZ) :
28
Resonance Impedance :
10-20 Ω
Input Power(w) :
120
Description

40Khz 60W Ultrasonic Cleaning Transducer With Screw Hole , High Efficiency

Quick Detail

40khz 60w ultrasonic cleaning transducer:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.

Description

ultrasonic cleaning transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.

Applications

widely used in ultrasonic cleaning machine and high-power industry cleaning devices.

Naming methods as following:

40Khz 60W Ultrasonic Cleaning Transducer With Screw Hole , High Efficiency

40Khz 60W Ultrasonic Cleaning Transducer With Screw Hole , High Efficiency

Specifications

28khz100w ultrasonic cleaning transducer:

Type

Length

(mm)

Weigh

(g)

Frequency

(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-4838D-40LB

PZT-4

56

310

40

10-20

5400

60

Competitive Advantage

ultrasonic cleaning transducer:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:

40Khz 60W Ultrasonic Cleaning Transducer With Screw Hole , High Efficiency
