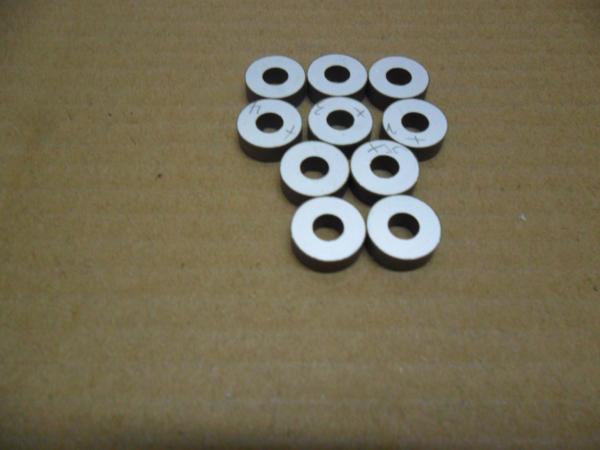

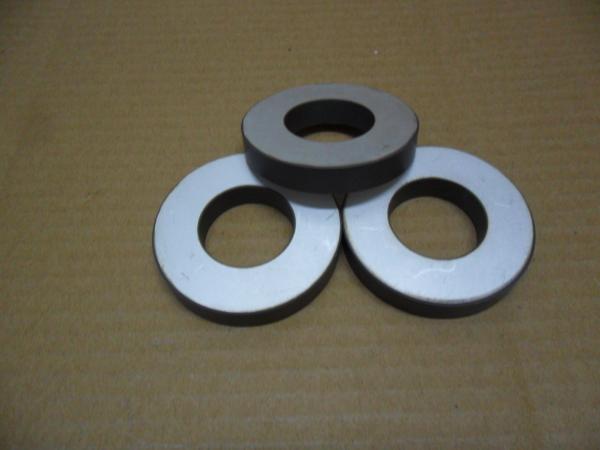

30/10/5 ring Piezoelectric Ceramic pzt8 for medical machine.cleaning and welding
30/10/5 ring Piezoelectric Ceramic pzt8 for medical machine.cleaning and welding
30/10/5 ring Piezoelectric Ceramic pzt8 for medical machine.cleaning and welding
30/10/5 ring Piezoelectric Ceramic pzt8 for medical machine.cleaning and welding
Specifications
Place of Origin :
CN
Brand Name :
CCWY
Certification :
CE ROSH TUV
Model Number :
CCWY
MOQ :
1PCS
Price :
$50--$120
Packaging Details :
CARTON
Delivery Time :
On stock
Payment Terms :
T/T
Supply Ability :
20.000.000 PER MONTH
Description

30*10*5 Ring Piezoelectric Ceramic

Quick Detail of 30*10*5 Ring Piezoelectric Ceramic:

all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.
the materials have the pzt4,pzt5 ,pzt8 or other required material.

Description of 30*10*5 Ring Piezoelectric Ceramic:


◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.


Applications of 30*10*5 Ring Piezoelectric Ceramic:


widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on



Specifications of 30*10*5 Ring Piezoelectric Ceramic:


Dimensions
(mm)

Capacity
C (pF)

Weak field dissipation
Tgδ (12v)

Strong field dissipation
Tg δ (400v)

Radial frequency
Fr(KHz)

Resonance impedance
Zm (∩ )

Thick frequency
Ft (KHz)

Coupling modulus
Kr (%)

Quality factor
Qm

Φ30*Φ10*5

1150±10%

≤0.5%

≤1.0%

58.4±5%

≤15

410

≥45

≥800





Competitive Advantage of 30*10*5 Ring Piezoelectric Ceramic:

◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
