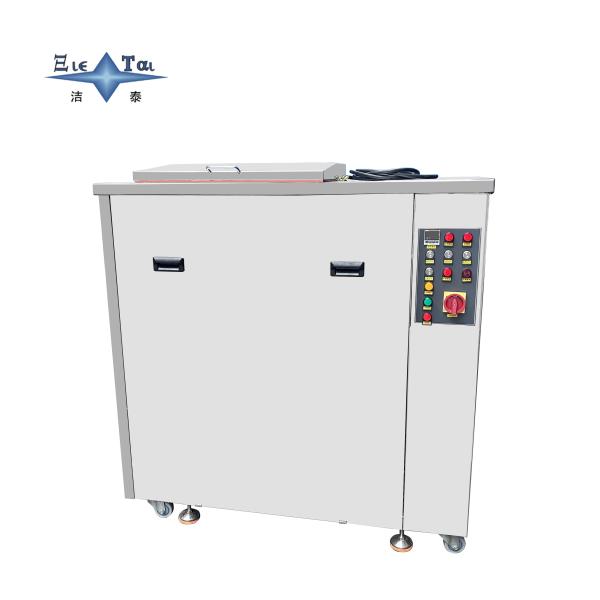

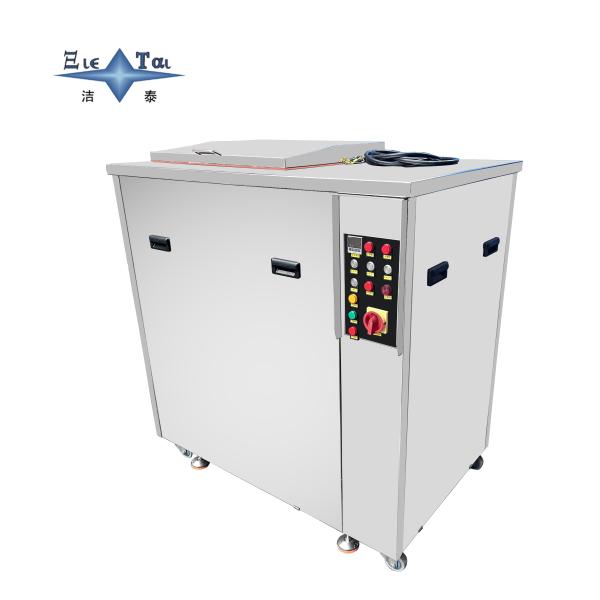

40KHZ 12KW Electronics Ultrasonic Cleaner Customized Steam Bath Washing And Cooling And Drying
40KHZ 12KW Electronics Ultrasonic Cleaner Customized Steam Bath Washing And Cooling And Drying
40KHZ 12KW Electronics Ultrasonic Cleaner Customized Steam Bath Washing And Cooling And Drying
40KHZ 12KW Electronics Ultrasonic Cleaner Customized Steam Bath Washing And Cooling And Drying
Specifications
Brand Name :
Jietai
Model Number :
JTV-1036FD
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥38000
Payment Terms :
T/T
Supply Ability :
CE, FCC, ROHS, etc.
Delivery Time :
30-60work days
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film. Dimensions: 1.5M*0.8M*1.2M
Name :
Electronics Ultrasonic Cleaner
Overall dimensions :
1.5M*0.8M*1.21M
Weight :
800 KG
Cleaning frequency :
40KHZ
horsepower :
Twelve kilowatts
Cleaning temperature :
36-45℃
Number of tanks :
1
Type :
Vapor phase cleaning machine
Description


Jietai / Ultrasonic Cleaning + Steam Bath Washing + Cooling And Drying



Technical Advantages: Triple Breakthroughs in Efficiency, Cleanliness, and Reliability
  1. Fully Integrated Compact Design
  • Multi-tank Collaborative Operation: Equipped with an ultrasonic cleaning tank (300L), steam bath washing tank (150L), and drying chamber (0.8m³ capacity), occupying only 4.5m² of floor space—50% less than traditional split-type equipment;
  • Automated Transmission System: Intelligent robotic arms precisely grasp workpieces, supporting fully automated loading/unloading and tank switching to reduce secondary contamination caused by human contact.
  1. Intelligent Process Control System
  • PLC + Touchscreen: A 12-inch color screen real-time monitors 20+ parameters such as temperature, frequency, and pressure, supporting storage of 200 process recipes for one-click switching between different workpiece types (e.g., PCBs, surgical forceps, engine valve plates);
  • Online Detection Module: Integrates a conductivity sensor (accuracy ±0.1μS/cm) and particle counter (detects ≥0.3μm particles) to real-time feedback cleaning effects, with unqualified products automatically recycled for re-cleaning.
  1. Industrial-grade Durability Configuration
  • Corrosion-resistant Chamber: The entire body is made of 316L stainless steel (5mm wall thickness), passing a 2,000-hour salt spray test, suitable for strong acid/alkali environments (e.g., post-etch cleaning in semiconductor manufacturing);
  • Energy-saving Technology: The ultrasonic module uses an IGBT frequency conversion power supply (efficiency ≥95%), and the steam system is equipped with a waste heat recovery device, reducing comprehensive energy consumption by 35% compared to traditional equipment.

    Compliance and Safety

    • ISO 16232 & VDA 19.1 Certification: Meets strict automotive and aerospace cleanliness standards, ensuring particle count ≤130,000 particles/1000cm² (5-100μm) and no particles ≥1,500μm 残留 (residue).
    • Safety Interlock Devices: Equipped with dual overload protection, pressure relief valves, and leakage detection sensors to eliminate operational hazards.

    Customization and Versatility

    • Modular Design: Supports customization of tank volume (100L-1000L) and ultrasonic frequency (25-120kHz) to adapt to different workpiece sizes and material requirements.
    • Multi-Industry Applicability:
      • Medical Field: Sterile cleaning of surgical instruments and implants;
      • Automotive Industry: Cleaning of engine components, transmission parts, and new energy motor assemblies;
      • Aerospace: Cleaning of turbine blades, fuel nozzles, and avionic connectors;
      • Electronics Industry: Precision cleaning of PCB boards, semiconductor components, and optical lenses.

    Three Reasons to Choose This System

    1. Leading Efficiency: Fully automated integration of three processes reduces labor costs and cycle time by 50%.
    2. Environmental Responsibility: Closed-loop recycling system and energy-efficient drying technology minimize water and solvent consumption.
    3. Precision Assurance: Achieves submicron-level particle removal to meet the most stringent industry standards.
      • Aerospace: Removal of lubricants and oxide layers from turbine blades;
      • Electronics: Precision cleaning of microchips and optical components.

    Technical Whitepaper Access

    Download the detailed guide "Optimizing Precision Cleaning with Multi-Stage Ultrasonic and Steam Technology" to learn how this system addresses cleaning challenges in modern manufacturing.

    Factory-Direct Support

    We provide end-to-end customization services from tank design to software programming, backed by 24/7 technical support and a global network of service centers.

    Request a Demo

    Schedule an on-site demonstration to experience the system’s cleaning capabilities for your specific workpieces.40KHZ 12KW Electronics Ultrasonic Cleaner Customized Steam Bath Washing And Cooling And Drying40KHZ 12KW Electronics Ultrasonic Cleaner Customized Steam Bath Washing And Cooling And Drying
