- 5-Inch Touchscreen: Real-time display of power waveforms, temperature curves, and remaining time. Password protection for parameter settings (prevents accidental adjustments), ideal for multi-user environments.
- Energy-Saving Mode: Automatically enters sleep mode after 10 minutes of inactivity (power consumption ≤5W). Combined with a double-layer insulated tank, reduces heat loss by 30% and achieves a 30°C temperature rise in ≤8 minutes.
- Tiny PCB Components: 40KHz + 40% power removes solder flux residues from 0402-sized resistors/capacitors without damaging pads (cleanliness meets IPC-A-610E Class 2 standard).
- Mobile Camera Modules: Pulsed mode (5-second intervals) + 60°C warm water cleans lens fingerprints/oils while preserving AR coatings (yield rate improves to 99.2%).
- Diamond Jewelry: 40KHz + 30% power paired with neutral cleaners removes dust and cosmetic residues from settings without damaging precious metal plating (gloss recovery ≥98%).
- Mechanical Watch Movements: Dual-frequency alternation (28KHz for 5 mins + 40KHz for 10 mins) removes gear oil while protecting nickel plating, meeting Swiss watchmaking cleanliness standards.
-
Dental Orthodontic Devices: 40KHz + 50% power + medical-grade cleaner eliminates food debris and plaque from brackets in 15 minutes (bacterial residue ≤10 CFU/device).
-
Lab Glassware: 28KHz + 70% power hot wash (60°C) rapidly removes chemical residues (e.g., agar, paraffin) from beaker walls, boosting lab efficiency by 30%.
Note: Technical specifications are subject to factory calibration. Contact us for customized solutions tailored to your specific needs.
Digital Power Adjustment Series | | | | | | | |
Model | Capacity | Ultrasonic power | Heating power | Cleaning tank size | Overall dimensions of the machine | Gross Weight | Large box size |
L | W | W | (LⅹwⅹH)mm | (LⅹwⅹH)mm | KG | (LⅹwⅹH)mm |
JPS-20AL | 3L | 50~120 | 100 | 240x135x100 | 270x170x210 | 4.1 | 410×355×345(2Table) |

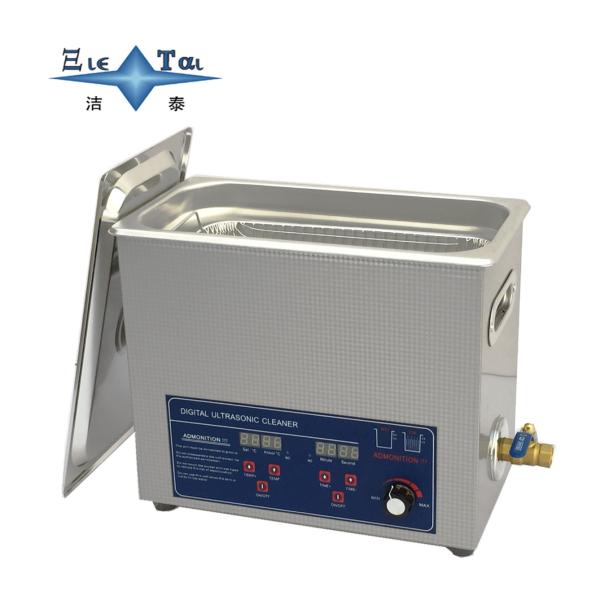

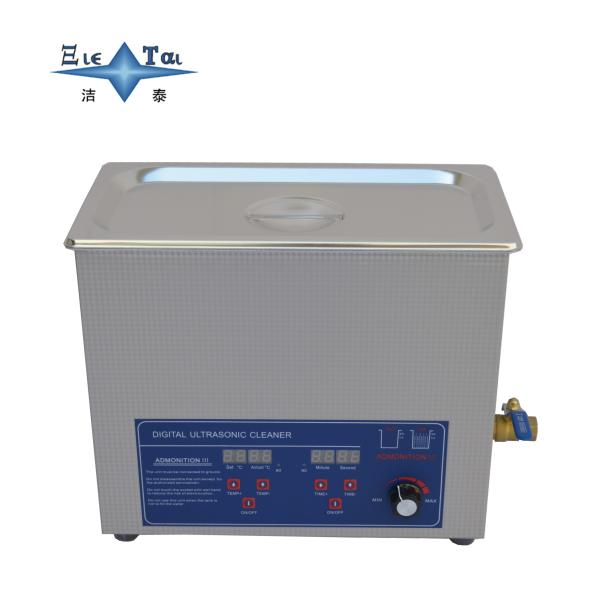

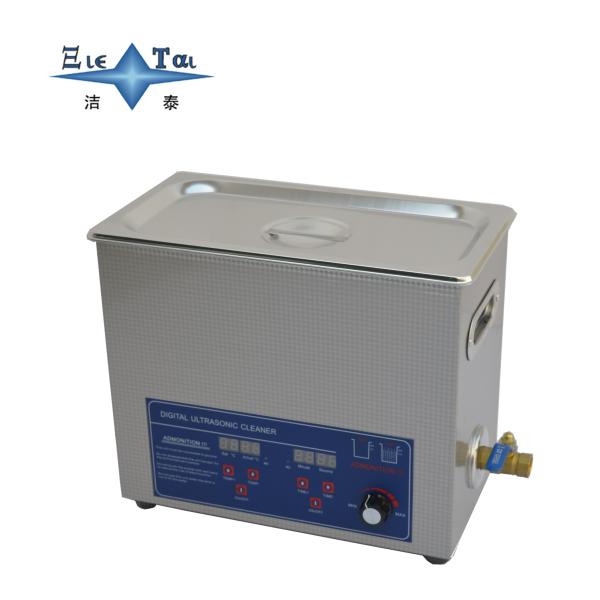

JPS-30AL | 6L | 70~180 | 300 | 300x150x150 | 330x180x270 | 6.3 | 555×435×390(2Table) |
JPS-40AL | 10L | 100~240 | 300 | 300x240x150 | 330x270x270 | 8.5 | 735×435×380(2Table) |
JPS-50AL | 14L | 120~300 | 300 | 300×240×200 | 330×270×320 | 10.5 | 420×360×420(1Table) |
JPS-60AL | 15L | 150~360 | 300 | 330×300×150 | 360×330×270 | 10.5 | 450×420×370(1Table) |
JPS-70AL | 19L | 170~420 | 300 | 330×300×200 | 360×330×320 | 12.0 | 460×420×420(1Table) |
JPS-80AL | 22L | 200~480 | 600 | 500×300×150 | 550×330×270 | 14.0 | 625×420×370(1Table) |
JPS-100AL | 30L | 240~600 | 600 | 500×300×200 | 550×330×320 | 16.0 | 625×420×420(1Table) |
