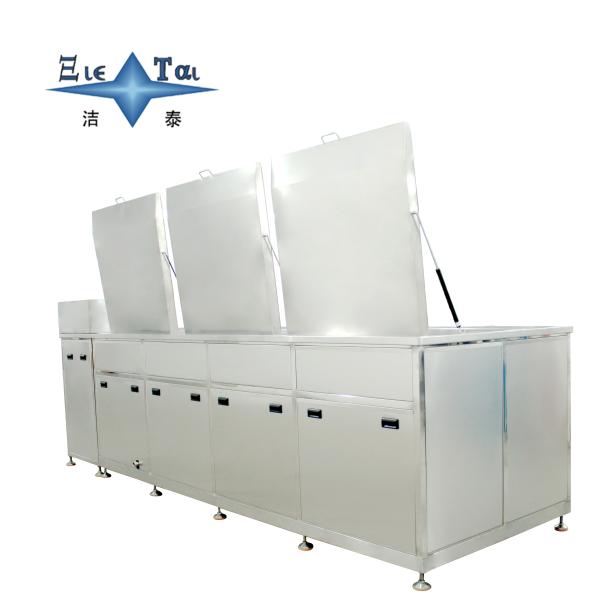

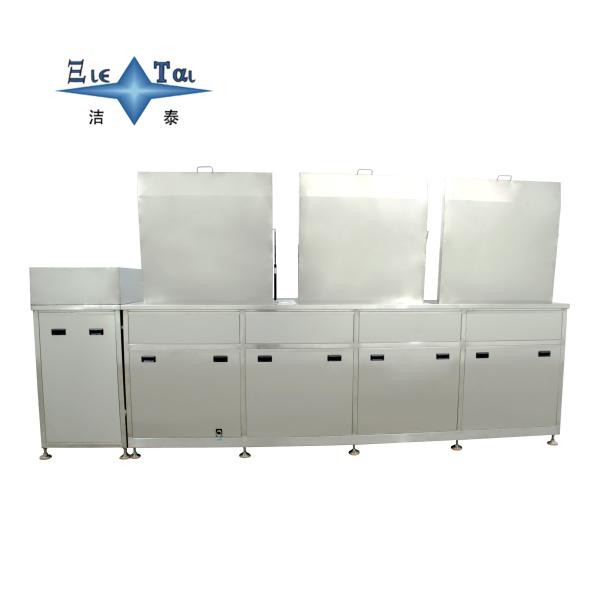

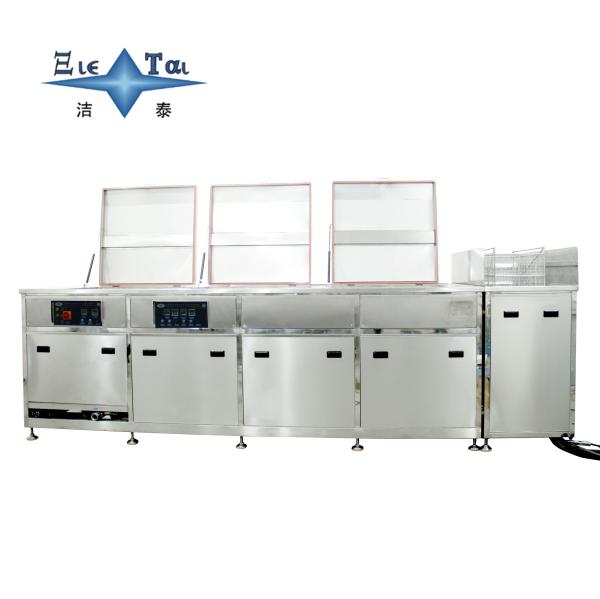

Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade
Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade
Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade
Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade
Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade
Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade

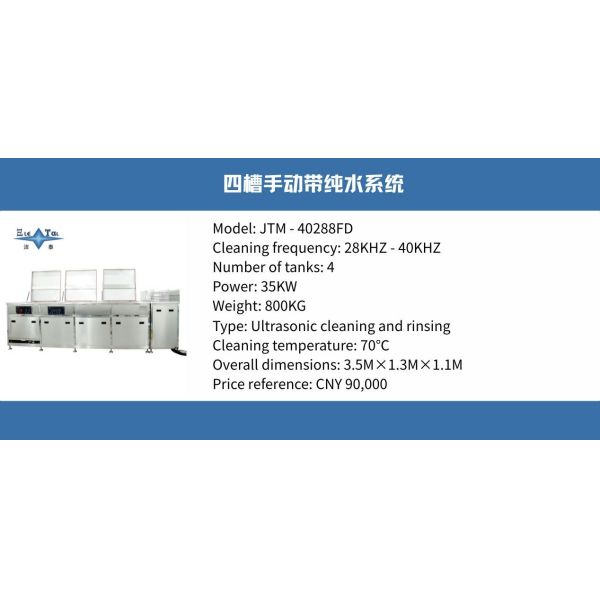

Specifications
Brand Name :
Jietai
Model Number :
JTM-40288FD
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥90000
Payment Terms :
T/T
Supply Ability :
One unit. It will take 30 to 60 days.
Delivery Time :
30-60work days
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film. Dimensions: L3500mm*W1300mm*H1100mm
Name :
Ultrasonic Cleaning Equipment
power :
35KW
Model :
JTM - 40288FD
Number of tanks :
4
Cleaning frequency :
28KHZ - 40KHZ
Weight :
800KG
Cleaning temperature :
70℃
Price reference :
CNY 90,000
Description

Industrial-Grade Four-Tank Manual Ultrasonic Cleaning Machine With Pure Water System, An Efficient Cleaning Equipment For Oil Removal And Rust Removal.

I. Product Overview

This high-efficiency precision cleaning equipment is specially designed for the hardware industry, combining the ultrasonic cavitation effect with the flexibility of manual operation to thoroughly remove oil stains, iron filings, rust, grinding paste, and oxides from the surface of various hardware parts. It is suitable for batch cleaning of small and medium-sized parts, maintenance of precision components, and mold maintenance, making it an ideal choice for industries such as hardware processing, automotive manufacturing, and electronics.

II. Core Technologies

High-Frequency Ultrasonic Cleaning

Adopts 28/40kHz dual-frequency conversion technology to meet different cleaning needs:
  • 28kHz: Strong penetration, suitable for removing stubborn stains
  • 40kHz: Fine frequency, protects the surface of precision parts
    The ultrasonic power density is as high as 0.8W/cm², with uniform and strong cavitation effects.

Intelligent Temperature Control System

  • Temperature control range: Room temperature ~ 80°C, PID precise temperature control ±2°C
  • High-quality stainless steel heating elements, corrosion-resistant and fast-heating

User-Friendly Operation Design

  • Mechanical timer: Adjustable from 0-30 minutes
  • Manual lifting cleaning basket: Made of 304 stainless steel, resistant to acid and alkali
  • Drain valve design: Convenient for liquid discharge and cleaning

III. Product Advantages

Efficient Cleaning Capability

  • Rapid penetration into gaps within 15 seconds, providing all-around and 死角 - free (no-dead-angle) cleaning
  • Optional specialized cleaning agents for different contaminants to improve cleaning efficiency
  • Surface cleanliness of parts after cleaning exceeds 99.2%

Durable Structural Design

  • Thickened 304 stainless steel tank body, resistant to acid and alkali corrosion
  • Shell made of SECC cold-rolled steel plate with electrostatic spray treatment on the surface
  • Anti-vibration foot pads at the bottom ensure stable operation and low noise (<65dB)

Economic and Energy-Saving

  • Saves 85% of cleaning time compared to traditional immersion cleaning
  • Cleaning solution can be recycled, reducing consumable costs
  • Low power consumption of only 1200W, 20% more energy-efficient than similar products
Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade

Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade

Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade

Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade

Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade

Four Tank Ultrasonic Cleaning Equipment 35KW Manual Ultrasonic Cleaner Industrial Grade
