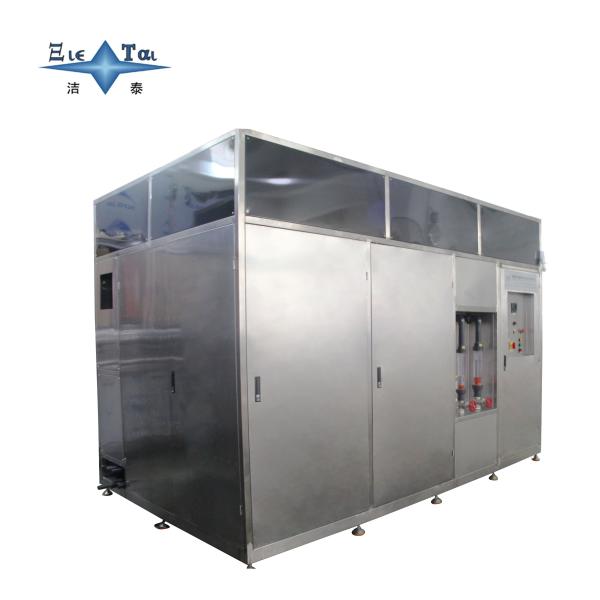

40 Ton Industrial Water Treatment Systems Ultrasonic Wastewater Treatment Equipments 182KW
40 Ton Industrial Water Treatment Systems Ultrasonic Wastewater Treatment Equipments 182KW
40 Ton Industrial Water Treatment Systems Ultrasonic Wastewater Treatment Equipments 182KW
40 Ton Industrial Water Treatment Systems Ultrasonic Wastewater Treatment Equipments 182KW
Specifications
Brand Name :
Jietai
Model Number :
JTF-ECD3-40A
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥3500000
Payment Terms :
T/T
Supply Ability :
One unit. It will take 30 to 60 days.
Delivery Time :
30-60work days
Packaging Details :
Packaging: Wooden case, wooden frame, stretch film.
Name :
Industrial Water Treatment Systems
Power :
182KW
Cleaning frequency :
There is nothing.
Number of Tanks :
None
Type :
Full-automatic membrane system for industrial wastewater treatment
Weight :
10.2 tons
Cleaning temperature :
Normal temperature
Cleaning Temperature :
Ambient temperature
Description

Ultrasonic Wastewater Treatment (Fuchi 40T Wastewater Treatment Equipment)

Targeting recalcitrant organic pollutants—such as pharmaceuticals, pesticides, and industrial solvents—the Ozone-Based Advanced Oxidation Process (AOP) leverages hydroxyl radicals (•OH, oxidation potential 2.8 V) to mineralize non-biodegradable compounds into CO₂ and H₂O. Ozone (O₃), generated via corona discharge (air/oxygen feed), is either used alone or combined with UV light (UV/O₃) or hydrogen peroxide (O₃/H₂O₂) to enhance radical production.​
Mechanism & Components​
  1. Ozone Generation: High-voltage electrodes split O₂ molecules into O atoms, which react with O₂ to form O₃ (yield: 10–15% by weight).​
  1. Contactor Reactor: Bubble columns or spiral reactors maximize gas-liquid contact, with residence times of 10–30 minutes.​
  1. Destructor: Unreacted ozone is decomposed into O₂ to meet safety standards.​
Performance & Use Cases​
  • Rapid Degradation: Oxidizes 90% of micropollutants (e.g., bisphenol A, sulfamethoxazole) within 15–60 minutes, critical for wastewater reuse in semiconductors and healthcare.​
  • Zero Residues: Ozone decomposes completely, avoiding secondary pollution unlike chlorine-based methods.​
  • Synergistic Effects: UV/O₃ systems achieve 50% higher radical yields, reducing ozone demand by 30% in treating landfill leachate (removing ammonia and recalcitrant organics).​
Challenges​
  • Cost Intensity: High capital (USD 1,500–2,500/m³) and operational costs (electricity 1–2 kWh/kg O₃, corrosion-resistant materials like 316L stainless steel).​
  • pH Sensitivity: Optimal performance at pH 7–9; acidic conditions (pH < 6) reduce radical formation.​
  • Safety Risks: Requires explosion-proof environments and ozone leak detection systems due to its high reactivity.
