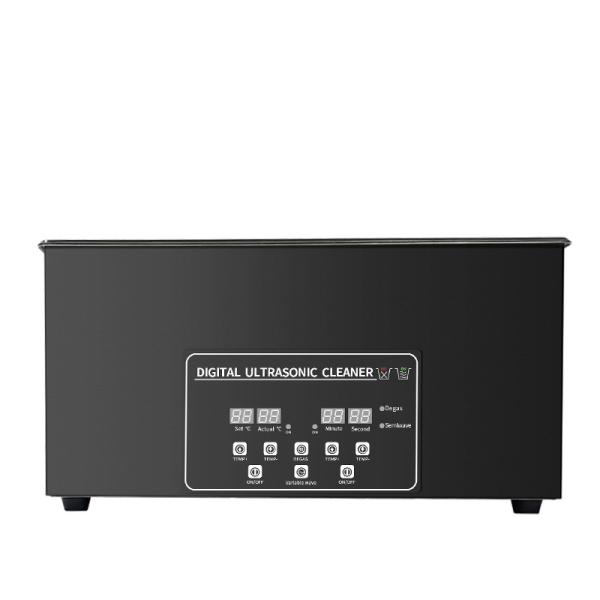

Black Titanium 22 Liter Ultrasonic Cleaner 480W Ultrasonic Cleaning Unit Multi Frequency Adjustable
Black Titanium 22 Liter Ultrasonic Cleaner 480W Ultrasonic Cleaning Unit Multi Frequency Adjustable
Black Titanium 22 Liter Ultrasonic Cleaner 480W Ultrasonic Cleaning Unit Multi Frequency Adjustable
Black Titanium 22 Liter Ultrasonic Cleaner 480W Ultrasonic Cleaning Unit Multi Frequency Adjustable
Black Titanium 22 Liter Ultrasonic Cleaner 480W Ultrasonic Cleaning Unit Multi Frequency Adjustable
Black Titanium 22 Liter Ultrasonic Cleaner 480W Ultrasonic Cleaning Unit Multi Frequency Adjustable
Black Titanium 22 Liter Ultrasonic Cleaner 480W Ultrasonic Cleaning Unit Multi Frequency Adjustable
Black Titanium 22 Liter Ultrasonic Cleaner 480W Ultrasonic Cleaning Unit Multi Frequency Adjustable
Specifications
Name :
22 Liter Ultrasonic Cleaner
Model :
JPS-80AH
Large box size :
626×420×370（1Table）mm
Capacity :
22L
Ultrasonic power :
480W
Heating power :
600W
Cleaning tank size :
488×288×151mm
Overall dimensions of the machine :
550×330×271mm
Product Series :
Digital Black Titanium Series
Gross Weight :
29KG
Brand Name :
JieTai
Model Number :
JPS-80AH
Certification :
CE, FCC, ROHS, etc.
Place of Origin :
Dongguan, Guangdong
MOQ :
1
Price :
￥1950
Supply Ability :
One unit, with a weight of 29 kilograms.
Delivery Time :
About one week to one month
Packaging Details :
Packaging: Carton Machine dimensions: 550×330×270 mm
Payment Terms :
T/T
Description

22L Flagship Ultrasonic Cleaning Machine Black Titanium Material + Multi-Frequency Adjustable Industrial Cleaning Expert

Black Titanium Series —— Crafting High-End Cleaning Experiences with Details

Double Breakthrough in Material and Craftsmanship
Black Titanium Surface Treatment:

  • Using PVD (Physical Vapor Deposition) technology, a dense titanium plating layer is formed on the stainless steel substrate. Its weather resistance is 3 times better than ordinary baking t processes, and it does not rust during short-term outdoor storage.
  • The surface feels warm rather than cold, reducing fingerprint residue by 70% compared to ordinary metal casings, keeping the equipment always clean and tidy.
  • Seamless Cleaning Tank: Adopts one-piece stamping technology (for 6L/10L models), eliminating welding weak points, improving impact resistance by 40%, and ensuring no leakage risk for long-term liquid storage.

Intelligent Configuration to Meet Professional Cleaning Needs
Precision Temperature Control System:

  • Equipped with a German imported temperature sensor, which real-time displays the water temperature in the tank with an error of ±1°C.
  • Supports free switching between "normal temperature cleaning" and "heated cleaning" modes, adapting to various cleaning agents such as water-based and solvent-based types.
    Adaptive Ultrasonic Power: Automatically identifies the load. When there are many workpieces, it intelligently increases the power (up to 100%); when idle, it drops to 40% for energy-saving operation, with power fluctuation ≤±3%.
    Optimized Drainage System: The drain outlet of models above 6L is raised by 1cm to avoid residual liquid accumulation. Combined with a 304 stainless steel ball valve, it has a corrosion-resistant service life of over 5 years.

Scenario-Based Design for Diverse Industry Needs

Application Field Core Configuration Advantages Typical Cleaning Effect
Watch Repair 40kHz high frequency + 30℃ constant temperature cleaning Removes oil sludge from watch movement gears without damaging plating
Medical Devices 316L stainless steel inner tank + 75℃ high-temperature cleaning Inactivates bacteria on surgical instruments, complying with WS310 disinfection standards
Hardware Electroplating Pretreatment 28kHz low frequency + 60℃ hot alkaline solution cleaning Removes oxide scale from screw surfaces, increasing electroplating adhesion by 25%
Laboratory Glassware Seamless tank + neutral cleaning agent 100% removal of residual reagents, meeting trace analysis requirements

Service and Support
Imported Component Quality: Core components such as ultrasonic transducers, temperature control modules, and drain valves are CE and FCC certified, with a service life of over 100,000 start-stop cycles.
Nationwide Warranty Service: Provides a 2-year comprehensive warranty (excluding consumables), 48-hour on-site repair, and sufficient spare parts inventory to ensure zero delay in fault response.
Customization Support: Offers value-added services such as LOGO laser engraving, voltage adaptation (110V/220V), and special size customization according to customer needs.
Digital Black Titanium Series
Model Capacity Ultrasonic power Heating power Cleaning tank size Overall dimensions of the machine Gross Weight Large box size
L W W (LⅹwⅹH)mm (LⅹwⅹH)mm KG (LⅹwⅹH)mm
JPS-08AH 1.3L 60 100 150×140×65 180×170×140 3.2 526×524×308(4Table)
JPS-10AH 2L 80 100 150x140x100 180x170x180 4.1 526×524×338(4Table)
JPS-20AH 3L 120 100 240x135x100 270x170x210 4.5 410×335×345(2Table)
JPS-30AH 6L 180 300 300x150x150 330x180x270 9.8 555×435×390(2Table)
JPS-40AH 10L 240 300 300x240x150 330x270x270 17.5 735×435×380(2Table)
JPS-50AH 14L 300 300 300×240×200 330×270×320 21.5 420×360×420(1Table)
JPS-60AH 15L 360 300 330×300×150 360×330×270 21.5 450×420×370(1Table)
JPS-70AH 19L 420 300 330×300×200 360×330×320 24.5 460×420×420(1Table)
JPS-80AH 22L 480 600 488×288×150 550×330×270 29.0 625×420×370(1Table)
JPS-100AH 30L 600 600 488×288×200 550×330×320 33.0 625×420×420(1Table)
