10L Upgraded Frequency Sweeping Ultrasonic Cleaning Machine / Meeting Industrial Cleaning Needs Of Factories - Direct From The Manufacturer

1. Black Titanium Industrial Aesthetics, Big Wisdom in Small Volume —— The All-Around Approach of the Standard Series Cleaning Machine
   Hardcore Performance with Light Luxury Appearance
   Black Titanium Anti-Oxidation Coating: Passed the 1,000-hour salt spray test, fingerprint-resistant and oil-resistant. Even with long-term contact with hand sanitizer or jewelry cleaning solution, it does not yellow, keeping the equipment looking as good as new.

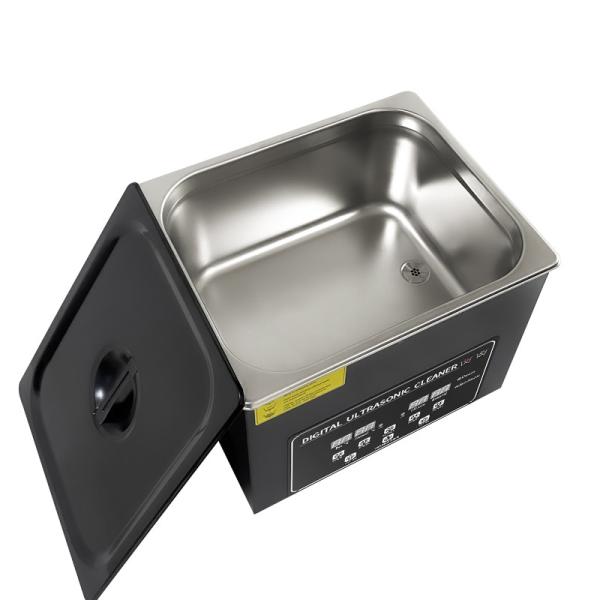

   No Blind Spot Cleaning Design:
   • The bottom of the cleaning tank is designed with a 3° diversion angle, combined with rounded edges, ensuring 99.9% of stains are discharged with the water flow.
   • Ultrasonic transducers are arranged in a matrix (spacing ≤5cm), with adjustable power density of 0.6-1.2W/cm², achieving full-surface cavitation effect coverage for "corners - grooves - blind holes".
     Modular Components: Transducers, temperature controllers, and drain valves all adopt quick-release designs, reducing maintenance time by 50% compared to traditional models and lowering downtime costs.

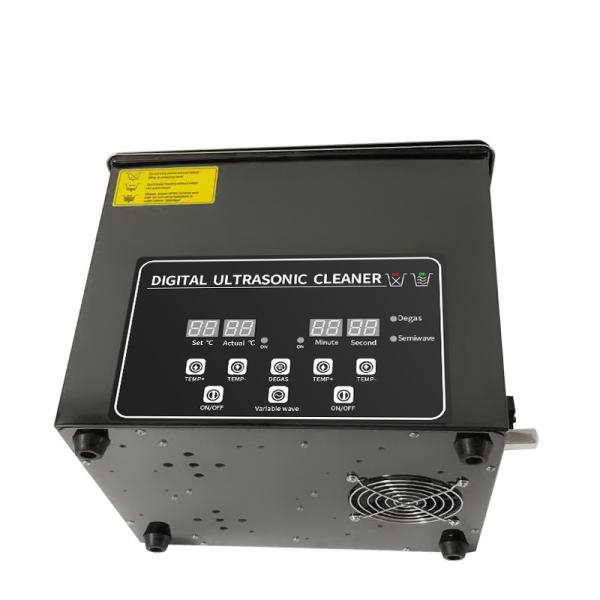

   Intelligent Control: Unlock Professional Cleaning with One Button
   Dual-Frequency Switching Technology (Some Models):
   • Low-Frequency Mode (28kHz): Suitable for removing carbon deposits and cutting fluids from hardware tools and mechanical parts, breaking down stubborn stains in 5 minutes.
   • High-Frequency Mode (40kHz): Aimed at gaps in eyeglass lenses and watch straps, micro-bubble blasting technology achieves 0.1mm-level precision cleaning without scratch risks.
     Intelligent Memory Function: Can store 3 groups of commonly used parameters (time, temperature, frequency), which can be called with one button at startup, suitable for repeated cleaning scenarios (e.g., batch cleaning of 200 jewelry pieces daily).
     Dual Guarantee of Safety and Energy Saving:
   • The system automatically enters sleep mode when idle, with standby power consumption <1W.
   • Automatic power-off after timeout (up to 30 minutes) to avoid dry burning risks caused by forgetfulness.
   Full-Scene Adaptation from Small Precision to Batch Processing
   6L/10L Desktop Models:
   • Suitable for personal studios and eyewear stores, capable of cleaning 10 pairs of glasses + 5 jewelry pieces at a time. The drain ball valve design facilitates daily waste liquid disposal.
   • The black titanium body with a magnetic transparent upper cover allows observation of the cleaning process during operation, enhancing the customer experience.
     22L/30L Industrial Models:
   • 1.5mm thick welded basin (stamped without welding seams), with a load-bearing capacity of 15kg, meeting the needs of small processing plants for batch cleaning of hardware parts such as bearings and gears.
   • Built-in high-efficiency cooling fan, supporting continuous operation for 4 hours without overheating, suitable for high-frequency use scenarios.
   Focus on User Value
   • Jewelry Industry: Compared with traditional manual scrubbing, cleaning efficiency is increased by 80%, jewelry gloss recovery rate reaches 95%, and consumable costs are reduced by 30%.
   • Electronics Industry: The cleaning yield of precision components is increased from 90% to 97%, avoiding short-circuit problems caused by residual impurities.
   • Household Scenarios: Deep cleaning of baby bottles, razor heads, and makeup brushes, with constant temperature sterilization at 60°C to protect family health.

   Digital Black Titanium Series
   Model	Capacity	Ultrasonic power	Heating power	Cleaning tank size	Overall dimensions of the machine	Gross Weight	Large box size
   	L	W	W	(LⅹwⅹH)mm	(LⅹwⅹH)mm	KG	(LⅹwⅹH)mm
   JPS-08AH	1.3L	60	100	150×140×65	180×170×140	3.2	526×524×308(4Table)
   JPS-10AH	2L	80	100	150x140x100	180x170x180	4.1	526×524×338(4Table)
   JPS-20AH	3L	120	100	240x135x100	270x170x210	4.5	410×335×345(2Table)
   JPS-30AH	6L	180	300	300x150x150	330x180x270	9.8	555×435×390(2Table)
   JPS-40AH	10L	240	300	300x240x150	330x270x270	17.5	735×435×380(2Table)
   JPS-50AH	14L	300	300	300×240×200	330×270×320	21.5	420×360×420(1Table)
   JPS-60AH	15L	360	300	330×300×150	360×330×270	21.5	450×420×370(1Table)
   JPS-70AH	19L	420	300	330×300×200	360×330×320	24.5	460×420×420(1Table)
   JPS-80AH	22L	480	600	488×288×150	550×330×270	29.0	625×420×370(1Table)
   JPS-100AH	30L	600	600	488×288×200	550×330×320	33.0	625×420×420(1Table)
