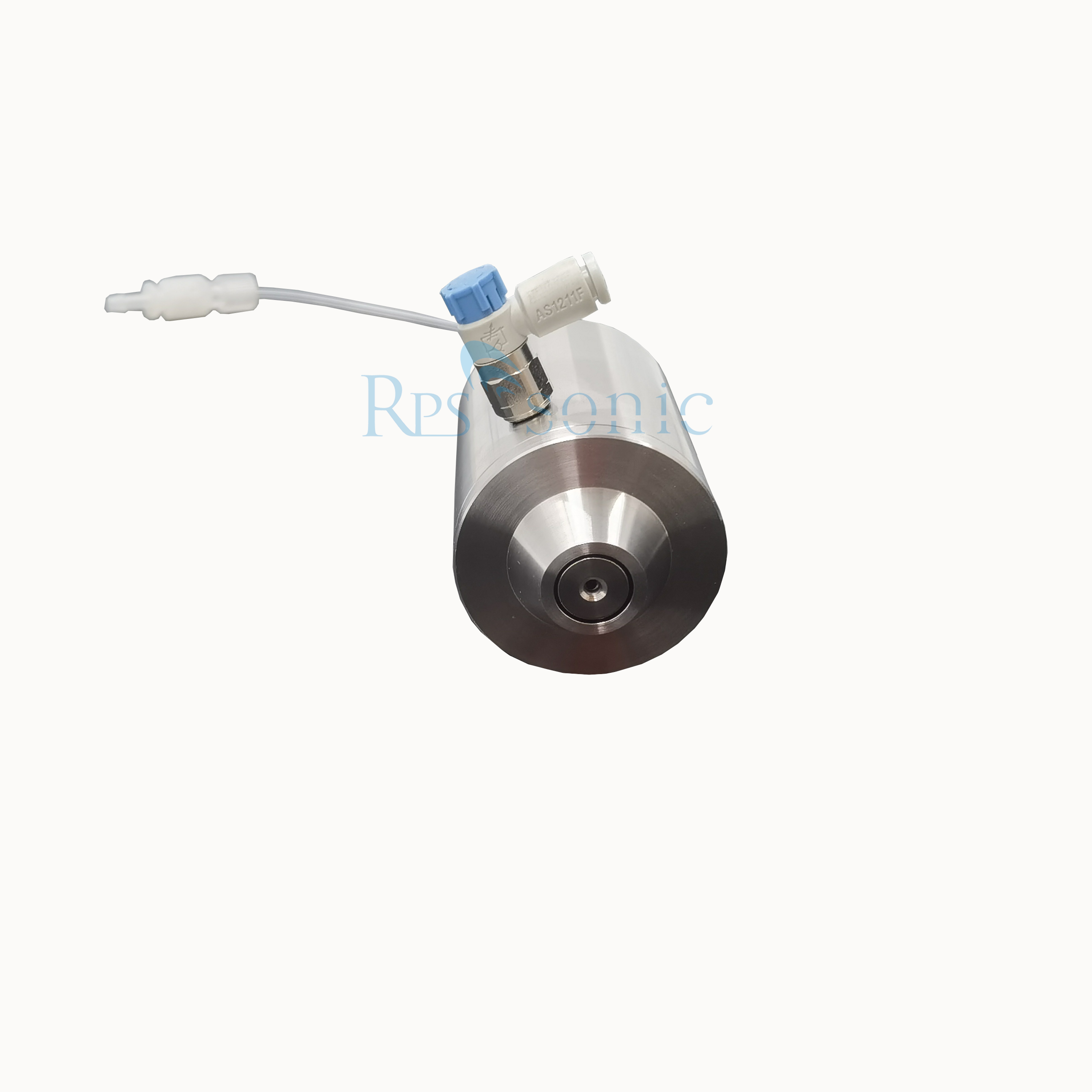

High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
High Uniformity Ultrasonic Spray Nozzles 60Khz 30w For Fuel Cell
Specifications
Brand Name :
Rps-sonic
Model Number :
RPS-AT60
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
200PCS/MONTH
Delivery Time :
1DAYS
Packaging Details :
CARTON
Frequency :
60Khz
Power :
30w
Flow Rate :
＜20ml/min
Generator :
2000E/2000C
Solution Utilization :
98%
Weight :
10kg
Description

60Khz 30w High Uniformity Ultrasonic Thin Film Spray Coating System For Fuel Cell

Paramater

Item Parameter
Frequency 60Khz
Power3 30w
FLOW RATE (ml/min) 0~20ml/min
Spray width 2~200mm
Solution utilization above 98%

Description

Ultrasonic nozzles operate by converting high frequency sound waves into mechanical energy that is transferred into a liquid, creating standing waves. As the liquid exits the atomizing surface of the nozzle, it is broken into a fine mist of uniform micron sized droplets.

Unlike pressure nozzles, ultrasonic nozzles do not force liquids through a small orifice using high pressure in order to produce a spray. Liquid is fed through the center of a nozzle with a relatively large orifice, without pressure, and is atomized due to ultrasonic vibrations in the nozzle.
Every ultrasonic nozzle operates at a specific resonant frequency, which dictates the median droplet size. For example, a 60 kHz nozzle produces ,a median drop size of 20 microns (when spraying water). The higher the frequency, the smaller the median drop size.

Advantages
* Uniform spraying: ultrasonic can make particles to micron or even nanometer level, smaller particles ensure more uniform spraying effect.
* Layer thickness controllable: ultrasonic spraying can accurately control the flow rate, so as to control the thickness of the layer.
* Saving materials and environmental protection: ultrasonic low flow rate spraying can reduce 80% of the use of spraying materials, workers do not need to directly contact the spraying materials, more environmental protection.
* High efficiency and energy saving: the liquid is transmitted to the spray head through self gravity or low pressure pump and continuous or intermittent atomization, no blockage, no wear, no noise, no pressure, no moving parts, no need for cooling water in atomization, little energy consumption, simple equipment, low failure rate, ultrasonic sprinkler has self-cleaning function and maintenance free.
Applications
*Fuel cells
*Thin film photovoltaic cells
*Thin film solar coatings
* Perovskite solar cells
* Graphene coating
* Silicon photovoltaic cells
* Glass coating
* Electronic circuits
* The spray head can be applied to various solutions, sewage, chemical liquid and oil mucus can also be atomized.
