50Khz 30w Ultrasonic Atomizer For Coating Of Inner Wall Of Vacuum Blood Collection Tube

50Khz Ultrasonic Atomizer for Coating of inner wall of vacuum blood collection tube and syringe tube

Paramater

Description

Ultrasonic spraying, also known as ultrasonic spraying, is a spraying process using ultrasonic atomization technology. The material to be sprayed is first in a liquid state, and the liquid can be solution, sol, suspension, etc. The liquid coating is first atomized into fine particles by an ultrasonic atomizing device, and then uniformly coated on the surface of the substrate by a certain amount of carrier gas. , thereby forming a coating or film. The biggest difference between ultrasonic spraying and traditional single-fluid or two-fluid spraying is that the atomizing device or atomizing nozzle adopts an ultrasonic atomizing device, that is, an ultrasonic nozzle.
"RPS-SONIC" ultrasonic spray equipment, with its gentle spray characteristics, greatly reduces overspray, thereby reducing costs and pollution to the surrounding air. At the same time, this new technology also expands more application fields, such as, Ideal when low flow rates are required to be sprayed. For substrate spraying, atomizing humidification, thin film coating, spray drying, flux spraying, film spraying, fine line spraying and other industrial and R&D applications, "RPS-SONIC" ultrasonic spraying equipment will produce better than other technologies Effect.

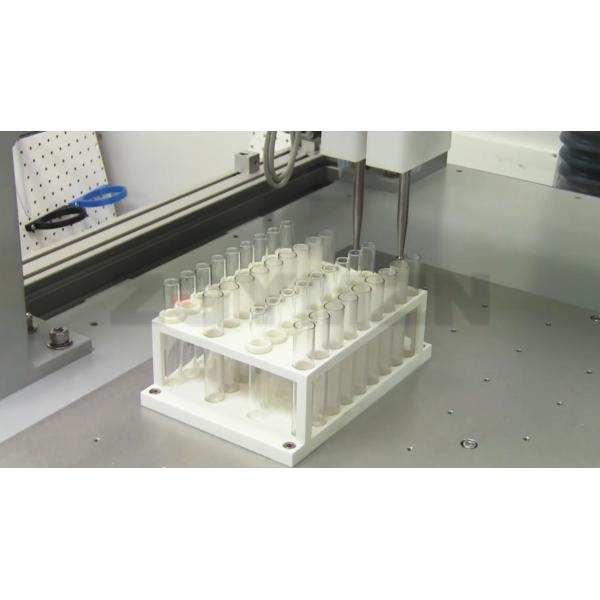

RPS-SONIC has the domestic leading and international first-class ultrasonic spraying technology. The penetrating ultrasonic spray head is especially suitable for the coating spraying of the inner wall of the tube. For the typical inner wall of vacuum blood collection tubes, such as anticoagulant coating, syringe lubricant coating, etc. Spraying has significant advantages. Oriental Jinrong provides a complete ultrasonic atomization solution for vacuum blood collection tube spraying including ultrasonic nozzles, ultrasonic control, metering liquid supply, etc. The special compact design can be quickly installed in the existing blood collection tube production line. A typical spraying system of 10 groups of nozzles can be used. Realize the spraying production speed of blood collection tubes up to 12,000 pieces/hour.

Unique ultrasonic atomization technology uniformly atomizes liquid particles
Ultrasonic vibration uniformly disperses solid particles in suspension
Highly uniform inner wall coating
Self-cleaning nozzles greatly reduce maintenance costs
Optionally spray the inner wall area of the tube

Applications

*Fuel cells
*Thin film photovoltaic cells
*Thin film solar coatings
* Perovskite solar cells
* Graphene coating
* Silicon photovoltaic cells
* Glass coating
* Electronic circuits
* The spray head can be applied to various solutions, sewage, chemical liquid and oil mucus can also be atomized.
