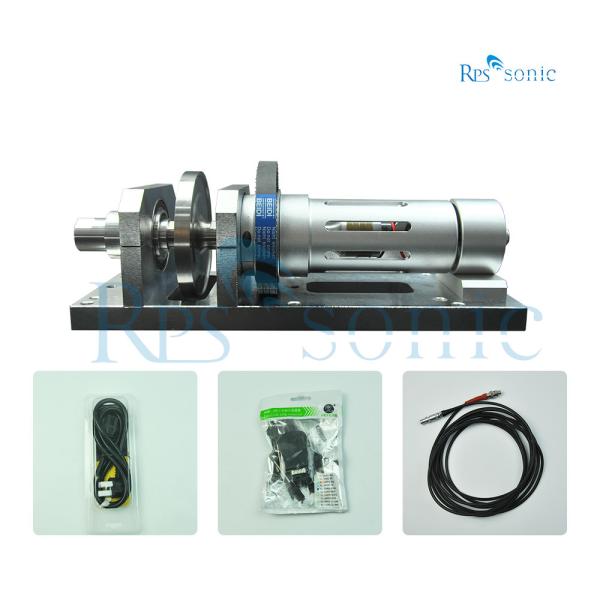

35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine
Specifications
Brand Name :
RPS-SONIC
Model Number :
RPS-R35
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
to be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-7 WORK DAYS
Packaging Details :
CARTON
Model :
RPS-R35
Frequency :
35KHZ
Power :
800W
Ceramice chips :
4chips
Running speed :
20m/min in max
Welding width :
15mm in max
Welding horn :
35Khz rotary horn
Description

35khz 800W Rotary Ultrasonic Sonotrade In Seamless Underwear Lace Machine

35kHz 800W Rotary Ultrasonic Sonotrode in Seamless Underwear Lace Machine

Model RPS-R35
Frequency 35khz
Power 800W
Ceramice chips 4chips
Running speed 20m/min in max
Welding width 15mm in max
Welding horn 35Khz rotary horn
Generator digitial generator

35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine

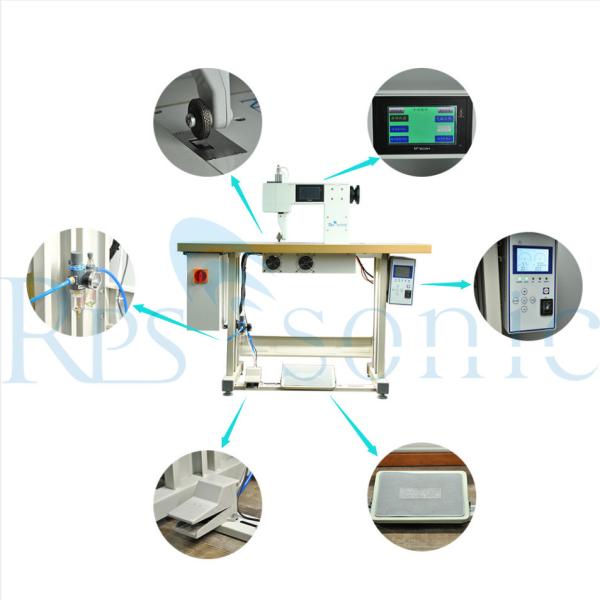

work method of Seamless sewing part is completely imitating traditional sewing machine. The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth. Which will make the sewed point of the cloth are even, flat and fastness. Through suitable design, it can reach perfect sewing effectiveness.

35khz 800W Rotary Ultrasonic Sonotrode In Seamless Underwear Lace Machine


Applications:
Apply to lace clothing, ribbon,trim,Filter, Lacing and quilting,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.

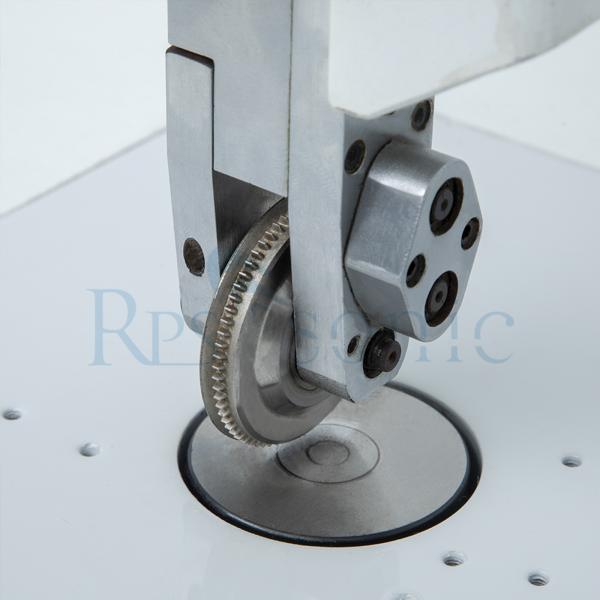

Usually used in clothing industry is the ultrasonic lace machine, which is mainly used in cutting and welding cloth. Owing to its transmit horn is a plane, so it only can turn its own geometric center and cant turn the same direction with the cloth. Which make the sewed point of the cloth is unevenness. The transmit horn of Seamless sewing part is a circumference horn, and can turn around . For the cloth, it is jointing with the cloth and working at the same time. The ultrasonic seamless sewing part advance ultrasonic lace machine and its market prospects are very bright.
