Ultrasonic Analyzer / Ultrasonic Testing Equipment For Piezoelectric Ultrasonic Components
Ultrasonic Analyzer / Ultrasonic Testing Equipment For Piezoelectric Ultrasonic Components
Ultrasonic Analyzer / Ultrasonic Testing Equipment For Piezoelectric Ultrasonic Components
Ultrasonic Analyzer / Ultrasonic Testing Equipment For Piezoelectric Ultrasonic Components
Specifications
Brand Name :
RPS-SONIC
Model Number :
RPS-T520
Place of Origin :
CHINA
MOQ :
1SET
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram, PAYPAL,
Supply Ability :
500 SETS PER MONTH
Delivery Time :
3DAYS
Packaging Details :
FOAM AND CARTON
Certification :
CE
Name :
Ultrasonic Analyzer
Test precision :
< 0.1%
Frequency precision :
±10ppm
Phase resolution :
0.15
Power :
30w
Suitable sub :
Transducer/ Horn/ booster/generator
Description

Ultrasonic Analyzer For Piezoelectric Ultrasonic Components And Equipment

Introduction:

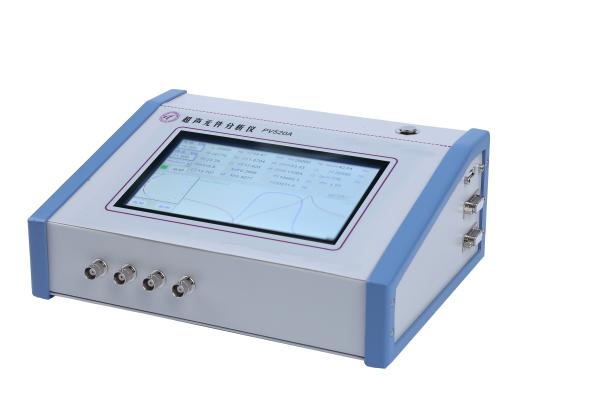

Ultrasonic Analyzer PV520A used for piezoelectric ultrasonic components and equipment for a comprehensive solution.

1. Size: 24cm*14cm*(front 5cm/behind 10cm),Weight 1.95kg, easy for taking.

2. Large touch screen, without physical buttons, graphic displayed all parameters and, more intuitive.

3. Fast test speed, test 2000point only need 10 seconds.

4. Connect the computer available.

5. The biggest test frequency up to 5 MHZ.

6. Warranty period: 2year.

Ultrasonic Analyzer / Ultrasonic Testing Equipment For Piezoelectric Ultrasonic Components

Ultrasonic Analyzer / Ultrasonic Testing Equipment For Piezoelectric Ultrasonic Components

For ultrasonic measurement, the key point is Admittance circle diagram and logarithmic graph, this two graph can Judge the ultrasonic good or bad. And also will have tens test data as reference:resonance frequency (Fs),conductance in max(Gmax),band width(F2-F1),anti-resonance frequency(Fp),quality factor (Qm),Free capacitance(CT),dynamic resistance(R1),dynamic inductance(L1),dynamic capacity(C1),direct capacitance(C0),effective electromechanical coupling (keff).

Ultrasonic Analyzer PV520A suit for all ultrasonic components and equipment,like: Piezoelectric ceramic, transducer, ultrasonic cleaning machines, ultrasonic plastic welding machine, acoustic and magnetostrictive materials, ultrasonic grinding mill, ultrasonic atomizer, ultrasonic teeth cleaning and reversing radar, ultrasonic distance measurement, ultrasonic emulsification, ultrasonic cleaning, ultrasonic motors, and other all use of piezoelectric and ultrasonic components and equipment.

Performance:

Item Performance T520A-s
Product advantage portable,Large touch screen
Size Length:24cm,width:19cm,front height:5cm,behind height:10cm
Frequency range 1KHz~1MHz
Test item Admittance circle diagram and logarithmic graph and other tens data
Test precision < 0.1%
Test speed 5second
Frequency precision ±10ppm
Phase resolution 0.15
Work temperature 10～40 degree centigrade
Impedance range 1Ω～1MΩ
Stepped frequency 0.1Hz～any
power AC100V～AC250V,50～60Hz, 30W
Usage All Ultrasonic Components And Equipment
