Rinco C20 20 Khz Ultrasonic Transducer , Ultrasonic Piezo Transducer For Welding Devices
Rinco C20 20 Khz Ultrasonic Transducer , Ultrasonic Piezo Transducer For Welding Devices
Rinco C20 20 Khz Ultrasonic Transducer , Ultrasonic Piezo Transducer For Welding Devices
Rinco C20 20 Khz Ultrasonic Transducer , Ultrasonic Piezo Transducer For Welding Devices
Specifications
Brand Name :
RPS-SONIC
Model Number :
RPS-RC20
Place of Origin :
China
MOQ :
5 sets
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200 Sets/month
Delivery Time :
2days
Packaging Details :
Foam+Carton
Certification :
CE
Frequency :
20Khz
name :
ultrasonic piezoelectric transducer
Ceramic chips :
4chips
Housing :
Open steel housing
Model :
RPS-RC20
Electrical connector: :
lemo25
Description

Rinco C20 20 Khz Ultrasonic Transducer , Ultrasonic Piezo Transducer For Welding Devices

  • Converters 20,30,35, 40 KhZ, built in special aluminium and titanium alloy;
  • Boosters 1/1 ,1/1.5, 1 /2,1/ 2.5 etc. available in alloys of aluminium and titanium;
  • Sonotrodes 20,30,35,40 KhZ, they can be made in titanium, aluminium and tempered steel.

RPS-SONIC specializes in ultrasonic technology and its related components for numerous industries. It offers a wide range of state-of-the-art, low maintenance welding machines assembled with high quality components and compliant with current ISO standards.

Contact our highly qualified technical department if you have any doubts regarding the proper machines for any practical request.

Branson Ultrasonic power converters – transducers with long life time – Upgrade and repair – reparieren or simple new quality made in China

We upgrade or repair all kinds of Branson Ultrasonic Transducers – converter – 15 kHz – 20 kHz – 30 kHz – 40 kHz.

Wir Reparieren – Serviceiren alle Arten von Bransonic Ultraschall Ultraschallwandler – Ultraschall-schwinger – Ultraschall Konverter – Wandler – 15 kHz – 20 kHz – 30 kHz – 40 kHz

We make our own design with HEX nut front (no more crack in the holes), or we do it also as the original design, both in aluminium or in Titanium.

    • Branson 102, 101-135-066R, Branson 103 Branson 402 101-135-014Converter – transducer, ,
    • Branson 108, 108-006-883, Branson 802, 101-135-034, Branson 804, Branson 803 Converter – Transuducer
    • Branson 502, 101-135-032 , 502 short model125-135-086 Converter – Transducer
    • Branson 902, Branson 922 Converter – transducer
    • Branson J20, 101-135-059, converter – transducer
    • Branson 4TH Transducer – Converter
    • Branson 4TJ Transducer – Converter
    • Branson 4TP Transducer – Converter
    • Branson 4TR Transducer – Converter
    • All others on request.

Piezo converter converts 20kHz electrical signal from ultrasonic welding device power supply into mechanical vibration. That is why converter is very essential part of ultrasonic welding.

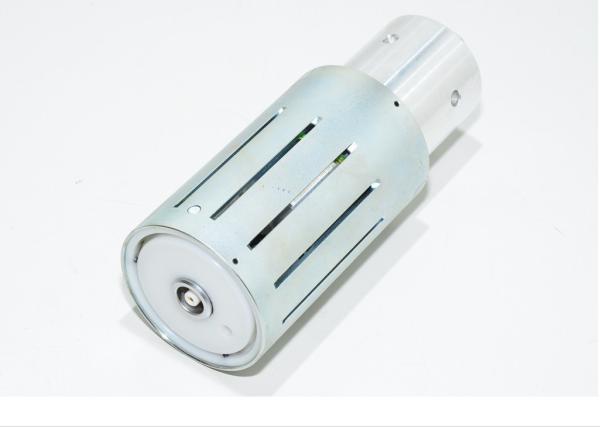

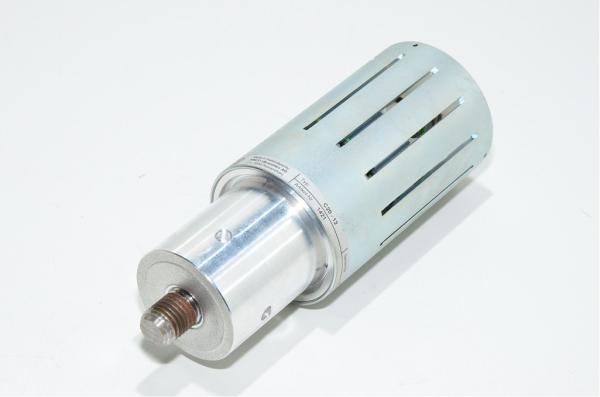

Piezoelectric transducer technical information:

  • Operating frequency:
    • 20kHz
  • Model:
    • RC20-12
  • Housing:
    • Open steel housing
  • Electrical connector:
    • Female coaxial cable connector Lemo ERA.2S
  • Air cooling:
    • Possible to add a connector which fits into a M5 threads. This connector can be connected into cooling air supply.
  • Max operating temperature:
    • 50°C, if used in warmer temperature or at constant use then converter requires air coolin.
  • Compatibility:
    • All Rinco ultrasonic generators (power supplies) which operate at 20kHz.
  • Ultrasonic booster amplifier connection:
    • M16x2 attachment

Advanced know how in.

Full Digital high power -Ultrasonic generators, Ultrasonic horn, ultrasonic sonotrode, sonotrode, Ultrasonic transducer, Ultrasonic booster, Ultrasonics welding, Ultrasonics welding technology, Ultrasonis cutting, Ultrasonics food slicing, Ultrasonics Food cutting, Ultrasonics Metal Welding, Ultrasonics Sealing, ultrasonics packaging, Food-cutting technologies, ultrasonic plastic processing, ultrasonics sieving, ultrasonic sealing technology, Ultrasonic Wastewater Treatment, ultrasonic bonding

Features
  • Poreless, high-density piezoceramics
  • Mechanically very strong and stable.
  • High mechanical quality factor
  • Excellent electro-acoustic conversion efficiency
  • Minimal thermal dissipation and power losses
  • High output amplitudes


Rinco C20 20 Khz Ultrasonic Transducer , Ultrasonic Piezo Transducer For Welding Devices

Rinco C20 20 Khz Ultrasonic Transducer , Ultrasonic Piezo Transducer For Welding Devices
