Specifications
Brand Name :
FUNSONIC
Model Number :
FSW-6001-L
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 unit per month
Packaging Details :
Packed by carton
Production Name :
Ultrasonic Widemist Spray Nozzle
Frequency :
60Khz
Max Power :
1-15w
Automized Particle Size Range :
15-40μm
Spray flow :
0.5-20ml/min
Liquid viscosity :
<30cps
Particle size :
<10μm
Application :
Ultra large area spraying Glass coating
Description

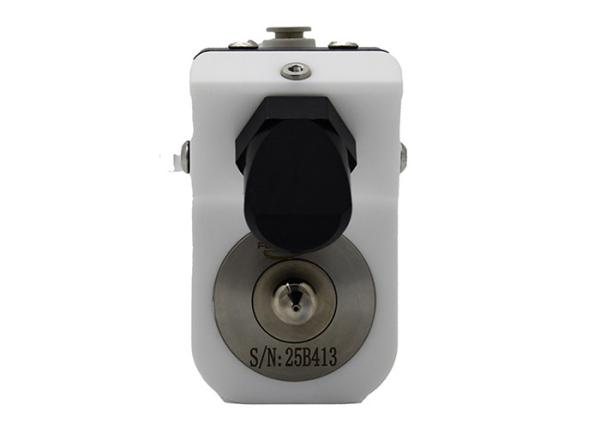

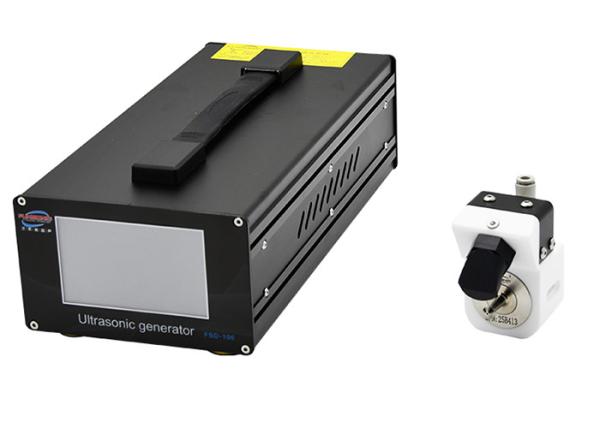

60Khz WideMist Ultrasonic Atomizing Nozzle

Description:

The ultrasonic wide width atomizing nozzle adopts a special airflow channel design and is a type of ultrasonic atomizing nozzle that can spray a large area. Ultrasonic nozzles use piezoelectric transducers to convert high-frequency sound waves into mechanical energy and perform longitudinal high-frequency vibration. This vertical upward and downward motion generates standing waves in the liquid film at the top of the ultrasonic nozzle. The liquid waves extend upward from the tip of the ultrasonic nozzle until they are separated into uniformly sized droplets with almost no kinetic energy, forming particles ranging from nanometer to micrometer sizes. The wide width nozzle sprays these liquid mist out in a fan-shaped manner, forming a large-area spraying.

Parameters:

Type FSW-6001-L
Name Ultrasonic Wide Type Spray Coating Nozzle
Frequency 60Khz (50/60/120Khz for selection)
Atomized particle size range (μm) 40-120
Spray width(mm) 30-60
Spray flow(ml/min) 0.5-20
Spray height(mm) 50-150
Permissible liquid viscosity(cps) <30
Allow particle size(μm) <10
Diversion pressure (Mpa) <0.05
Application Suitable for large-area spraying, such as proton exchange membranes, etc

Advantages :

1. Multiple combinations can be used to achieve a larger spraying width
2. Precise control of coating thickness: 20nm-100um
3. Uniformity: ≥ 95%
4. Having small and uniform droplets
5. Can work continuously for 24 hours
6. Non clogging and anti-corrosion ultrasonic nozzle
