Specifications
Brand Name :
FUNSONIC
Model Number :
FSJ-5050-H50
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 unit per month
Packaging Details :
Packed by Wooden Case
Production Name :
Heating vacuum adsorption platform
Type :
High temperature stainless steel Type
Heating plate size (mm) :
300*300（customized）
Net weight（kg） :
10.2
Power :
500-2500w
Control temperature range :
Within Normal Temperature 550℃
Continuous service life :
350℃ temperature controlled dry burning≥20000 hours
Heating plate material :
Stainless steel
Description

High Temperature Stainless Steel Heating Vacuum Adsorption Platform for Ultrasonic Precision Coating Machine


Description:

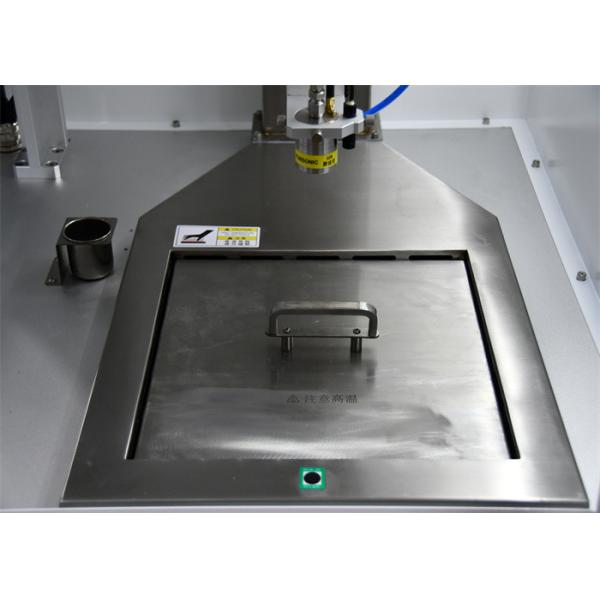

The vacuum heating adsorption platform is a vacuum heating adsorption device that integrates heating and vacuum functions. It solves the problem of traditional adsorption platforms not having heating functions and is very suitable for the research and development of fuel cell membrane electrodes. It is also an ideal positioning accessory for high-precision product rapid production.


Parameters:

Name Heating vacuum adsorption platform
Type Aluminum alloy small hole Type Ceramic micropores Type High temperature stainless steel Type
Heating plate size (mm) 300*300(customized) 300*300(customized) 300*300(customized)
Net weight(kg) 9.6 8 10.2
Power 500-2500w
Control temperature range Within Normal Temperature 250℃ Within 550℃
Continuous service life 350℃ temperature controlled dry burning≥20000 hours
Heating plate material Aluminum Ceramic Stainless steel
True pore suction 0.5-1.5mm 20-30μm No
Temperature controller control accuracy ±1℃
Temperature difference on the surface of the countertop ±1-2℃
Voltage 220V50hz
Vacuum pumping method Vacuum pump or vacuum generator


Product features:

1. The top surface of the heating table is distributed with rectangular or customer specified vacuum circular holes, and the diameter size can also be customized according to customer requirements

2. There are two ways to vacuum, pretending to be a vacuum generator internally to achieve vacuum negative pressure; External reserved interface, to be purchased by the customer for installation of the vacuum machine

3. Adopting high-quality digital temperature control instrument, with high accuracy, safe, simple, clear, and convenient operation

4. Adopting high-quality stainless steel electric heating coils, easy and fast maintenance, and low failure rate

5. The inner cavity can be pumped into a negative pressure state, so that the small circular holes on the surface have the function of adsorbing flat film products

6. Controlled by microcomputer and microcontroller, automatic constant temperature, using the electronic industry for sealing and dispensing operations
