Specifications
Brand Name :
FUNSONIC
Model Number :
FS1005
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
T/T,Western Union
Supply Ability :
1000 unit per month
Packaging Details :
Packed by Wooden Case
Production Name :
Balloon Catheter Ultrasonic Precision Spraying Machine
Frequency :
100Khz (120khz or 150khz for select)
Max Power :
10w
Continuous Spraying Volume Max :
0.01-l/min
Effective Spraying Width :
1-5mm
Spray Uniformity :
<5%
Solution Viscosity :
≤10cps
Input Voltage :
220V±10%/50-60Hz
Description

Arterial Network Balloon Spray Ultrasonic Precision Gathering Type Coating



Description:

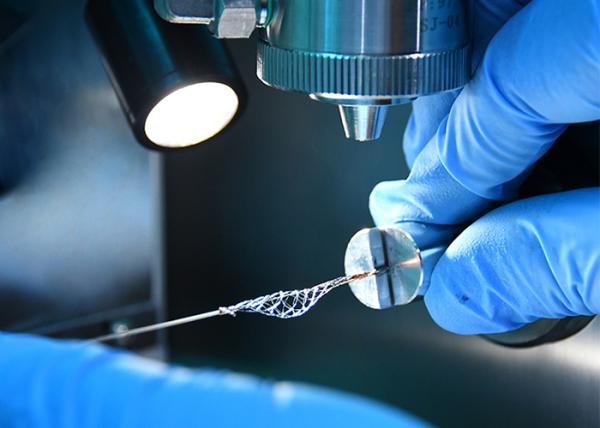

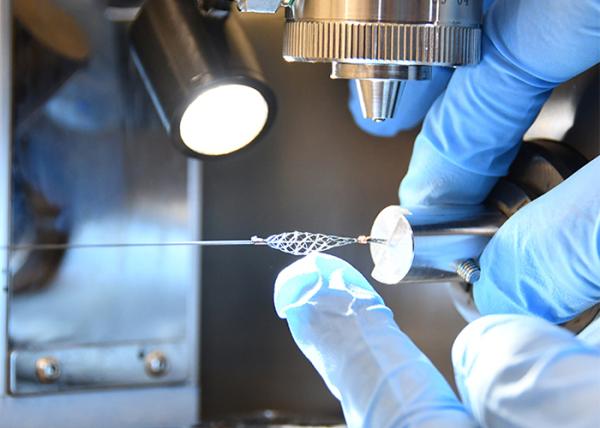

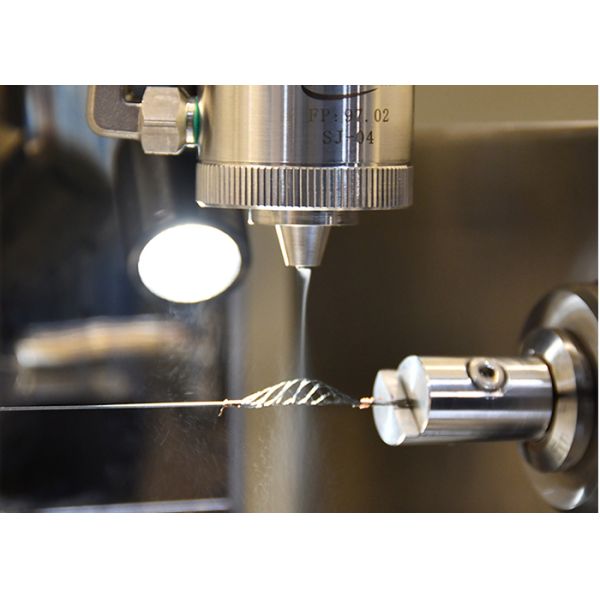

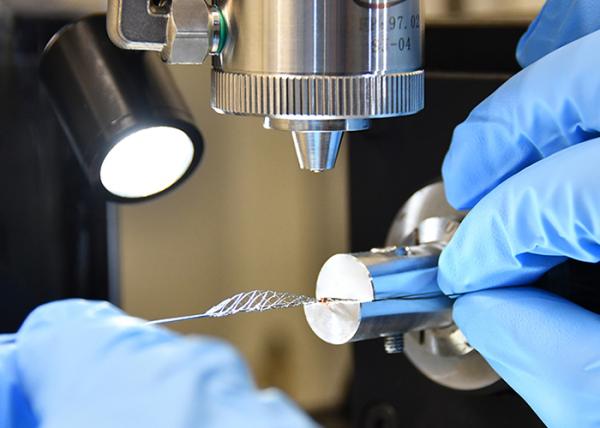

Arterial balloon angioplasty, which involves implanting stents into arteries, is a widely accepted technique in the treatment of arterial diseases. In order to prevent the stent from being attacked by the human immune system and causing arterial occlusion again, the surface of the stent needs to be sprayed. The balloon catheter spray developed by FUNSONIC uses both line spray and convergent atomizing nozzles, which can generate extremely low flow rates, precise spray shapes, low-speed delivery, and relatively small droplets. By placing the balloon catheter on the spindle connected to the rotating shaft, and installing the nozzle above the balloon catheter. The axis can not only rotate but also translate, allowing the balloon catheter to be fully sprayed.



Parameters:


Product Type

Laboratory desktop

FS620

Pilot type vertical

FS650

Online production type

FS680

 FS1005
Spray nozzle operating frequency 20-200KHz 100KHz (120KHz或150KHz for select)
Nozzle power 10-100W 2~ 10W
Continuous spraying volume max 20-1200ml/h/pcs,Scalable 0.01-l/min
Effective spraying width 2-260mm/pcs,Scalable 1-5mm
Spray uniformity <5% <5%
Solution conversion rate ≥95% ≥95%
Dry film thickness 20nm-100μm 20nm-1μm
Solution viscosity ≤50cps ≤10cps
temperature range 1-60℃ 1-60℃
Atomized particles (median value) 10-45μm (Distilled water), determined by the frequency of the nozzle 10-25μm(Distilled water), determined by the frequency of the nozzle
Diversion pressure max ≤0.15MPA ≤0.05MPa
input voltage 220V±10%/50-60Hz 220V±10%/50-60Hz



Production Process:


1. Cleaning and preparation: Clean the balloon catheter before spraying to ensure that the surface is free of contamination.
2. Spraying process: Spraying is carried out in a controlled environment to reduce the impact of external factors on the quality of the coating.
3. Curing and testing: After spraying, perform curing treatment and necessary performance testing.
