Specifications
Brand Name :
FUNSONIC
Model Number :
FS620
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
Negotation
Payment Terms :
T/T,Western Union
Supply Ability :
1000 unit per month
Packaging Details :
Packed by Wooden Case
Production Name :
Ultrasonic Precision Spraying Machine
Frequency :
60khz
Max Power :
1-15W
Continuous Spraying Volume Max :
20-1200ml/h/pcs，Scalable
Effective Spraying Width :
2-260mm/pcs，Scalable
Spray Uniformity :
≥95%
Solution Viscosity :
≤30cps
Input Voltage :
220V±10%/50-60Hz
Description
New Precision Ultrasonic Coating Technology Graphene Spray Coater
Description:

Graphene coating refers to a layer of graphene compound covering the surface of an object with a thickness of several micrometers to tens of micrometers.

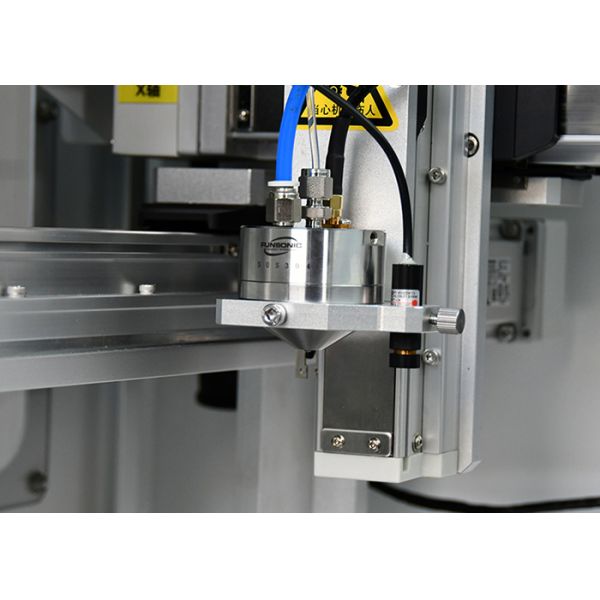

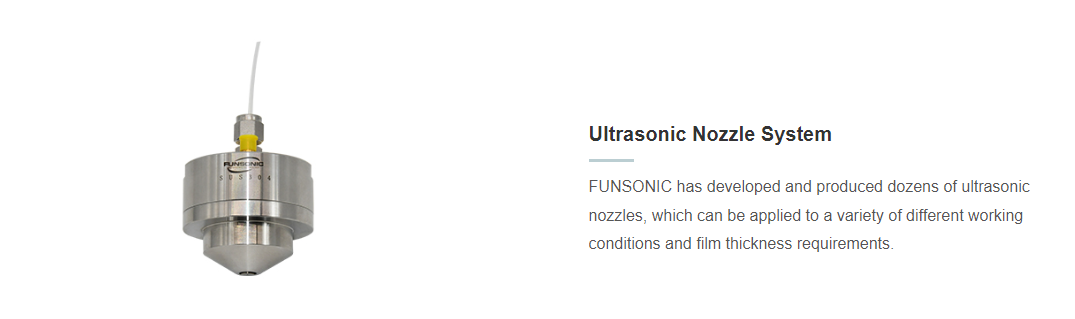

New Precision Ultrasonic Coating Technology Graphene Spray Coater uses ultrasonic transducers to generate tens of thousands of vibrations per second (20KHZ-120KHZ). Once the solution passes through the ultrasonic integrated atomizing nozzle, it will form uniform micrometer sized droplets (adjustable between 10-45 μ m), which will then adhere to the surface of the coated substrate under the guidance of high-speed airflow.

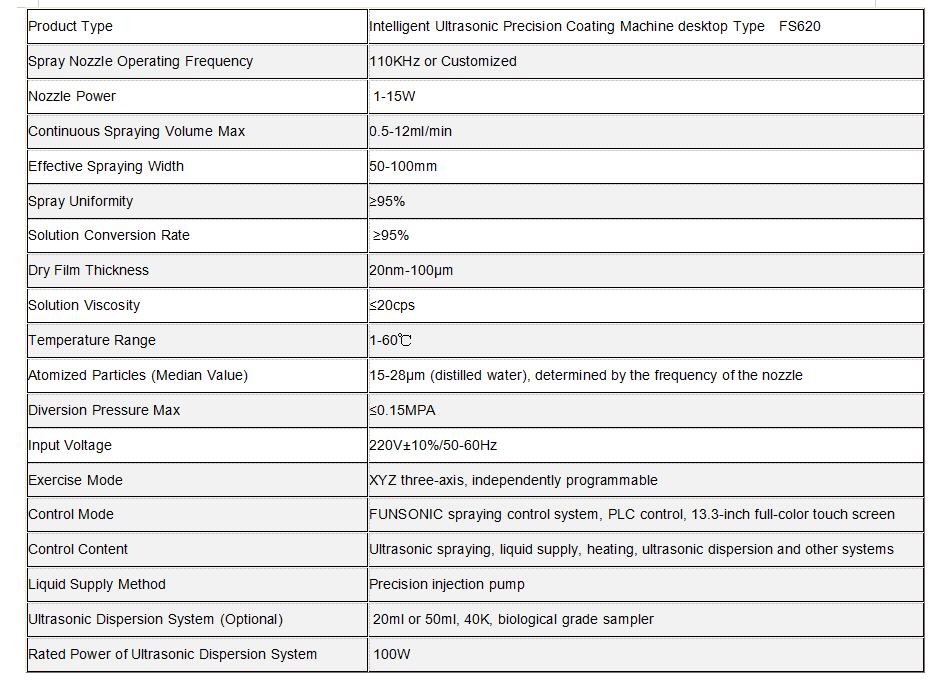

Technical Parameters
110khz Frequency Precision Ultrasonic Spray Coater with 95% Spray Uniformity and 0.5-12ml/h Spraying Volume

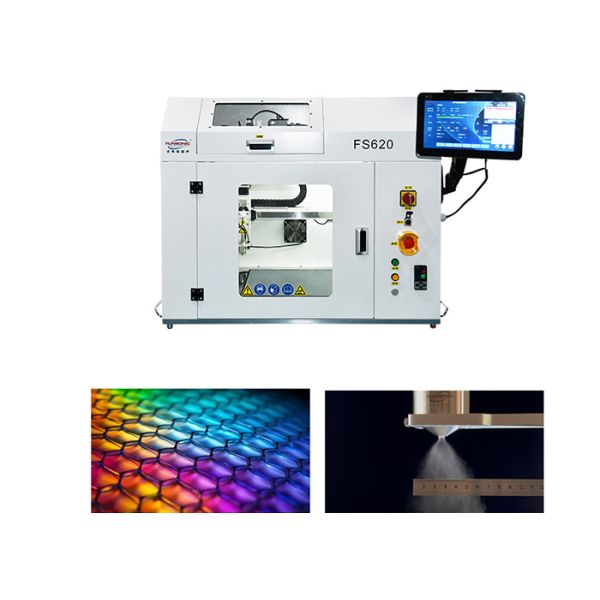

Concept of Graphene Coating:

Graphene: It is a finished product made from graphite with a single layer of hexagonal honeycomb lattice. Graphene has excellent optical, electrical, and mechanical properties, and has important application prospects in materials science, micro nano processing, energy, biomedical, and other fields. It is considered a revolutionary material in the future. It exhibits superior performance in terms of high mechanical strength, thermal conductivity, optical properties, and carrier mobility. After mixing graphene with different solutions and undergoing FUNSONIC ultrasonic dispersion treatment, graphene special coatings are prepared, which can effectively prevent the surface of objects from oxidation and erosion after coating. At present, graphene powder and slurry are often formulated into various raw materials in China, and have achieved good results in medical, industrial, electronic, military, metallurgical, vehicle, textile fabric, chemical, power, building and other fields.


110khz Frequency Precision Ultrasonic Spray Coater with 95% Spray Uniformity and 0.5-12ml/h Spraying Volume

110khz Frequency Precision Ultrasonic Spray Coater with 95% Spray Uniformity and 0.5-12ml/h Spraying Volume

110khz Frequency Precision Ultrasonic Spray Coater with 95% Spray Uniformity and 0.5-12ml/h Spraying Volume

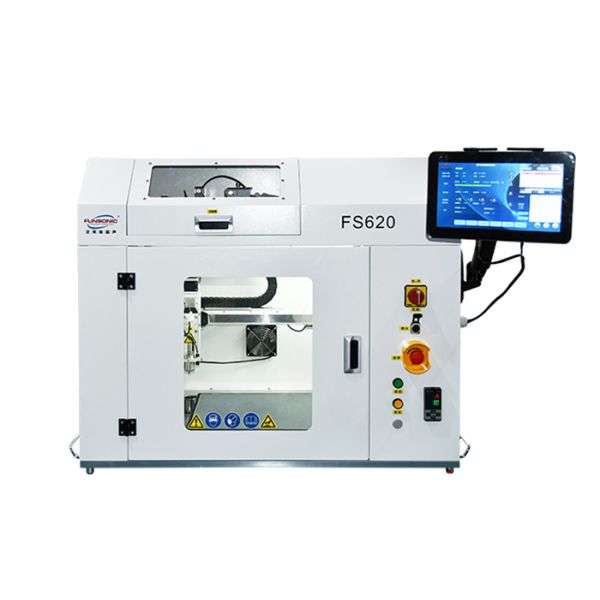

New Precision Ultrasonic Coating Technology Graphene Spray Coater

110khz Frequency Precision Ultrasonic Spray Coater with 95% Spray Uniformity and 0.5-12ml/h Spraying Volume

110khz Frequency Precision Ultrasonic Spray Coater with 95% Spray Uniformity and 0.5-12ml/h Spraying Volume
