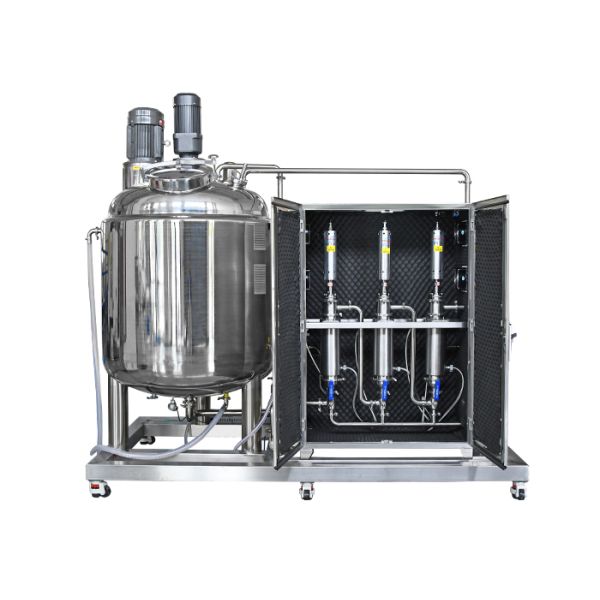

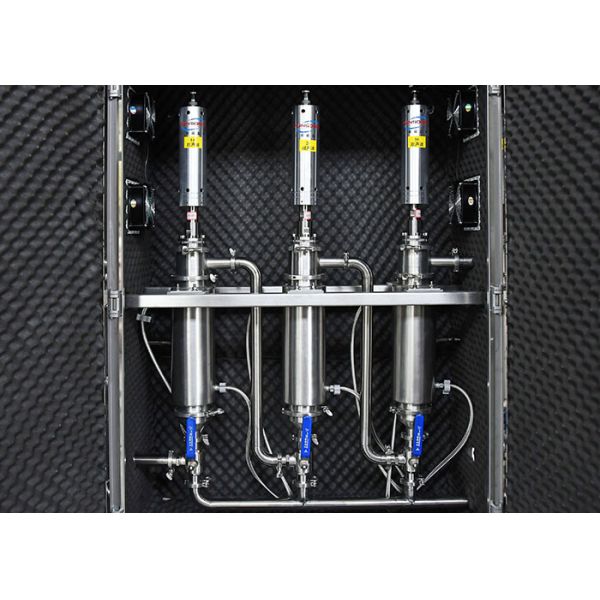

Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type
Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type
Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type
Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type
Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type
Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type
Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type
Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type
Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type
Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type
Specifications
Brand Name :
FUNSONIC
Model Number :
FSD-2030-P1
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotation
Payment Terms :
T/T,Western Union
Supply Ability :
1000 unit per month
Delivery Time :
5-8 work days
Packaging Details :
Packed by Wooden Case
Name :
20Khz Industrial Liquid Ultrasonic Processing
Frequency :
20Khz
Power :
3000w
Input Voltage :
220V±10%，50/60Hz
Emitter Materials :
Titanium Alloy
Diameters of Emitter Tip :
Φ38mm, Φ50mm
Durable Temperature :
0-80℃
Application :
Ultrasonic extraction, dispersion, emulsification, defoaming, crushing, stirring
Description

Ultrasonic Sonochemical Industrial Production Line 3-in-1 Combination Type


Description:

The 3-in-1 combination industrial grade ultrasonic sonochemical production line can generate a series of nearly extreme conditions in the medium of chemical reactions. Energy can not only excite or promote many chemical reactions, accelerate the speed of chemical reactions, but also change the direction of many chemical reactions to produce unexpected effects and effects. The sonochemical phenomenon caused by high temperature and high pressure generated by ultrasonic cavitation reaction is a unique form of energy and substance exchange in sonochemistry. So ultrasonic sonochemical equipment has been increasingly widely used in various chemical and biological fields, such as extraction, crushing and mixing, emulsification, dispersion and stirring, defoaming and degassing, accelerating reactions, etc



Parameters:

Model FSD-2030-PI-3
Name

20Khz Industrial Liquid Ultrasonic Processing
Frequency 20Khz
Power 10Kw
Input Voltage 220V±10%,50/60Hz
Emitter Materials Titanium Alloy
Diameters of Emitter Tip Φ38mm, Φ50mm or Customized
Durable Temperature 0-80℃
Application Ultrasonic extraction, dispersion, emulsification, defoaming, crushing, stirring



Advantages :

1. Efficient and convenient: The cavitation effect brings high temperature (about 4500 ℃) and high pressure (50MPa) at the molecular level, producing rapid effects in an instant
2. Wide range of applications: Processing capacities ranging from a few milliliters in the laboratory to several tons in industrial production can be effectively achieved
3. Environmentally friendly and pollution-free: The entire process does not require the addition of other chemical components, improving production efficiency while effectively reducing chemical pollution
