Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Specifications
Frequency :
20-150khz
Model Number :
FS2000X
Max Power :
15W
Certification :
CE
Solution Viscosity :
≤30cps
Payment Terms :
T/T,Western Union
Spray Uniformity :
≥95%
Price :
Negotation
Input Voltage :
220V±10%/50-60Hz
Supply Ability :
100 unit per month
Effective Spraying Width :
2-100mm
MOQ :
1 UNIT
Packaging Details :
Packed by Wooden Case
Continuous Spraying Volume Max :
0.01-50ml/min，Scalable
Place of Origin :
CHINA
Production Name :
Ultrasonic Precision Spraying Machine
Brand Name :
FUNSONIC
Description
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
The FS2000X Film Coater, a production-grade ultrasonic spray coating machine, adopts piezoelectric ultrasonic nozzles vibrating at 20–150 kHz high frequency. This process atomizes coating solutions into uniform ultra-fine droplets ranging from 10 to 90 μm, with directional deposition realized via low-pressure shaping gas and electrostatic assistance.

Equipped with multiple spray nozzles for high-efficiency spraying. Upgraded on the basis of FS2000 model with an automatic spraying production line to realize non-stop continuous production. on flexible roll materials such as thin films, non-woven fabrics and metal foils.

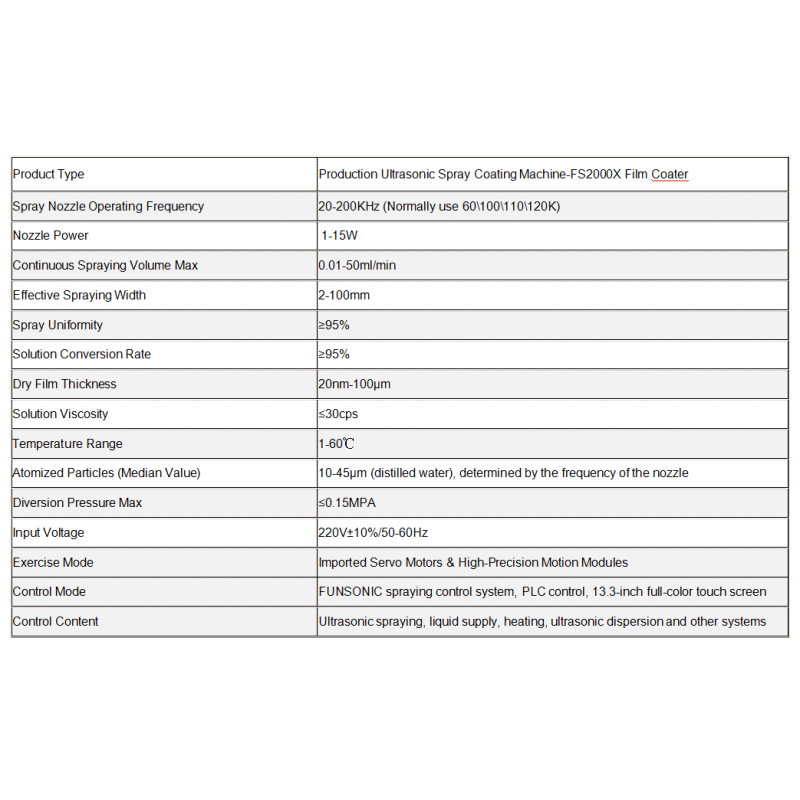

Technical Specifications
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
Key Advantages
  1. Excellent coating precision: Coating thickness can be precisely adjusted from 20 nm to 80 μm, delivering a film thickness uniformity of over 95%. The finished coating features a flawless surface with no orange peel defects, pinholes or thick edge issues.
  2. Superior material utilization rate: The equipment effectively reduces overspray loss, greatly cutting material costs when applying high-value precious metal catalysts and ceramic slurries.
  3. Soft atomization with no substrate penetration: The gentle atomization process avoids slurry soaking on non-woven fabrics and porous membranes, perfectly preserving the substrates’ original air permeability and porous structure.
  4. Anti-clogging nozzle design: Without high-pressure air impact, the nozzle adapts well to high-solid-content and particle-containing slurries, enabling stable and long-duration continuous production.
  5. Eco-friendly and low-consumption operation: It requires no high-pressure gas supply. Waste liquid can be recycled, resulting in extremely low exhaust emissions and greener production.

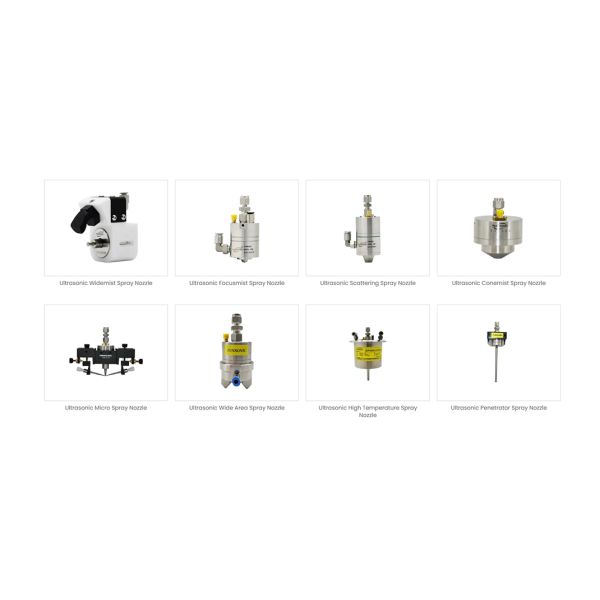

Nozzle Options
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater

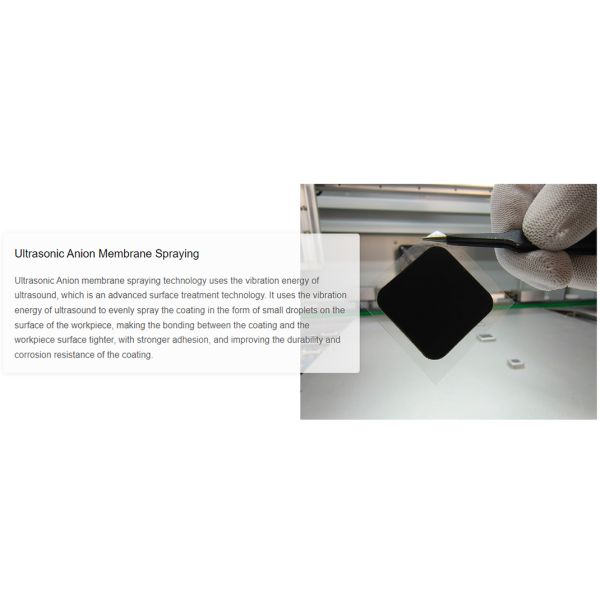

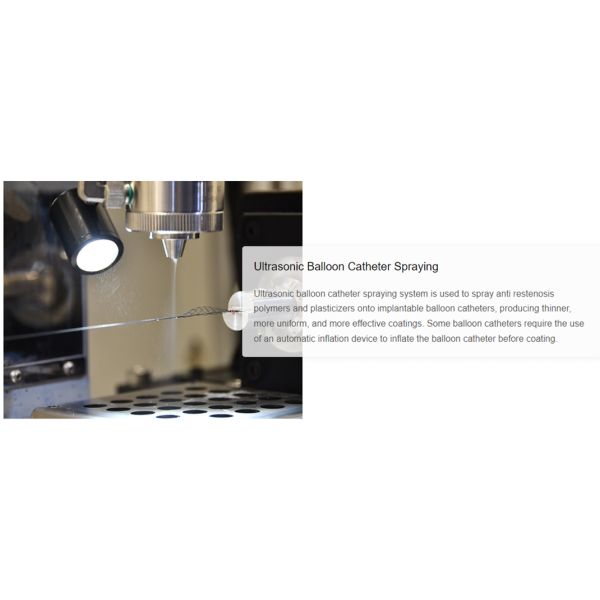

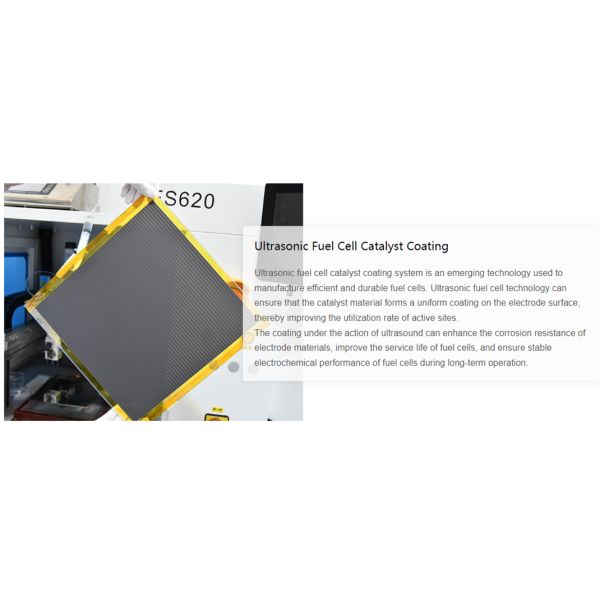

Industrial Applications
Production Ultrasonic Spray Coating Machine-FS2000X Film Coater Production Ultrasonic Spray Coating Machine-FS2000X Film Coater Production Ultrasonic Spray Coating Machine-FS2000X Film Coater Production Ultrasonic Spray Coating Machine-FS2000X Film Coater
