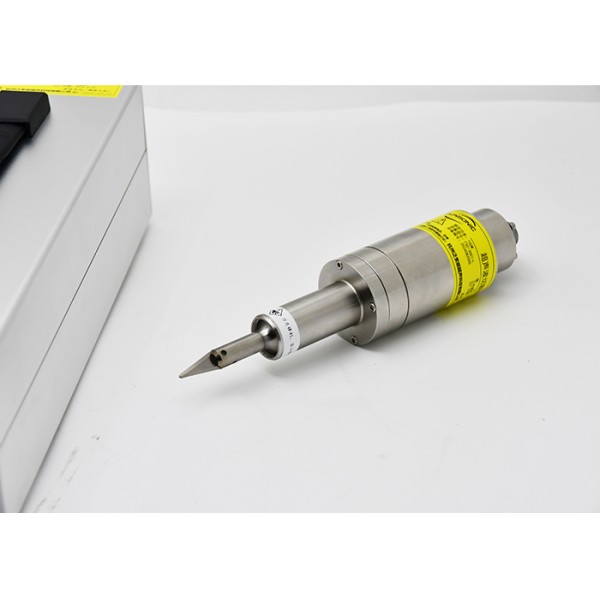

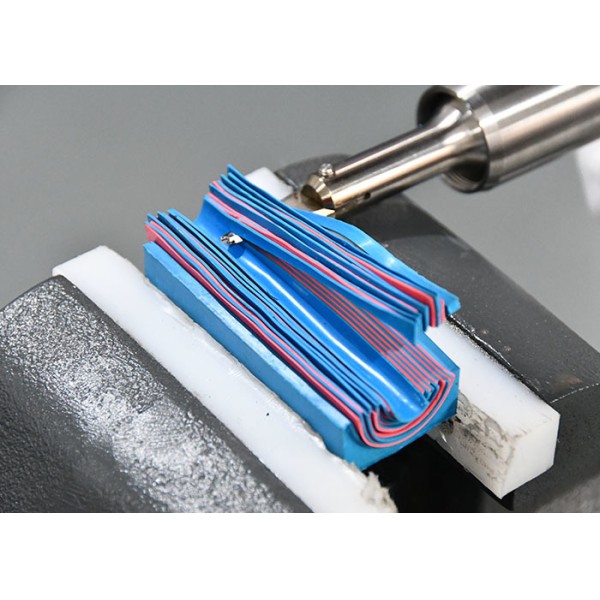

Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz
Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz
Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz
Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz
Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz
Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz
Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz
Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz
Specifications
Model Number :
FSC-3001-L
Supply Ability :
1000 unit per month
Name :
30Khz Ultrasonic Fabric Cutter
Cutting Thickness :
m(according to Materials)
Payment Terms :
T/T,Western Union
Frequency :
30Khz
Cutter Materials :
Alloy Steel
Price :
Negotation
Power :
800w
MOQ :
1 UNIT
Delivery Time :
5-8 work days
Application :
Fabric Cutter
Place of Origin :
China
Packaging Details :
Packed by Wooden Case
Certification :
CE
Brand Name :
FUNSONIC
Description

Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz



Description:


Ultrasonic Cutting Knife for Shockproof Rubber Gaskets, we also named Ultrasonic Rubber Cutter for Vibration Isolation Pads and Handheld Ultrasonic Rubber Slitting Knife.


The ultrasonic generator converts electrical energy into high-frequency longitudinal mechanical vibration at 20kHz/40kHz. The vibration is transmitted through the transducer and booster to the titanium alloy cutting blade. The blade reciprocates tens of thousands of times per second at high frequency, generating slight frictional heat on the contact surface with rubber to locally soften the molecular layer of the rubber material. Material separation can be achieved with minimal applied pressure under a quasi-cold cutting process.
It overcomes the common drawbacks of conventional utility knives and die-cutting methods, including tensile deformation of soft rubber, curled and burred cutting edges, compression damage to the internal buffering structure of gaskets, and large dimensional tolerances.



Parameters:


Model FSC-3001-L
Name

30Khz Ultrasonic Cutter
Frequency 30Khz
Power 800w
Input Voltage 220V±10%,50/60Hz
Cutter Materials Alloy Steel
Cutting Thickness m(according to Materials)
Application Fabric Cutter



Advantages:


1. Superior Stability
The ultrasonic generator converts electromagnetic vibration into consistent mechanical vibration and delivers it to the cutter head and workpiece. This mechanical cutting method does not rely on ultra-sharp blade edges, greatly reducing blade wear. The cutter head is also fully replaceable for easy maintenance.


2. Safe & Eco-Friendly Operation
The cutter head temperature stays below 50°C during operation. No smoke or pungent odors are generated throughout the cutting process, effectively avoiding operational injuries and fire hazards for safer production.


3. Flawless & Tidy Cutting Results
High-frequency ultrasonic vibration enables non-stick cutting with minimal pressing force. It perfectly processes soft and fragile materials without deformation or surface damage. For textile fabrics, the cutting finish comes with automatic edge sealing and zero material chipping.


4. Simple & Flexible Operation
Paired with a standard 220V power supply, the ultrasonic cutting system is ready for use instantly. It supports two working modes: handheld manual cutting and fixed mounting cutting, adapting to diverse processing scenarios.


5. Versatile Application
This ultrasonic cutting device works for a wide range of materials, including vulcanized and unvulcanized rubber and latex, various textiles, plastic sheets, and food materials.



Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz


Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz


Ultrasonic Cutting Knife for Shockproof Rubber Gaskets 30Khz
