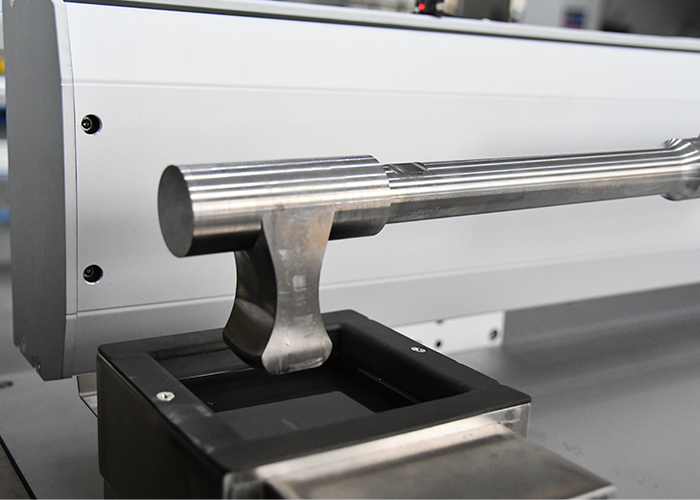

30Khz Fully Automatic Ultrasonic Inner Circle Indium Coating Machine with Titanium Alloy Coated Head
30Khz Fully Automatic Ultrasonic Inner Circle Indium Coating Machine with Titanium Alloy Coated Head
30Khz Fully Automatic Ultrasonic Inner Circle Indium Coating Machine with Titanium Alloy Coated Head
30Khz Fully Automatic Ultrasonic Inner Circle Indium Coating Machine with Titanium Alloy Coated Head
30Khz Fully Automatic Ultrasonic Inner Circle Indium Coating Machine with Titanium Alloy Coated Head
30Khz Fully Automatic Ultrasonic Inner Circle Indium Coating Machine with Titanium Alloy Coated Head
30Khz Fully Automatic Ultrasonic Inner Circle Indium Coating Machine with Titanium Alloy Coated Head
30Khz Fully Automatic Ultrasonic Inner Circle Indium Coating Machine with Titanium Alloy Coated Head
Specifications
Model Number :
FSY-3008-PL
Frquency :
30Khz（28/20Khz for optional)
Brand Name :
FUNSONIC
Production Name :
30Khz Ultrasonic Flat Indium Coating
MOQ :
1 UNIT
Packaging Details :
Packed by carton
Working Amplitude :
3-20μm
Payment Terms :
T/T,Western Union
Indium Coated Head Material :
Titanium Alloy
Price :
Negotation
Input Voltage :
220V± 10%，50/60Hz，4A
Supply Ability :
1000 unit per month
Application Direction Flat, inner hole, outer circle, etc :
Flat, inner hole, outer circle, etc
Certification :
CE
Max Power :
800W
Place of Origin :
CHINA
Temperature Range :
150-400℃
Description
30Khz Ultrasonic Fully Automatic Inner Circle Indium Coating Machine
Description:

The 30Khz ultrasonic fully automatic inner circle indium coating machine (also known as the rotating target inner wall ultrasonic indium coating machine, cylindrical target binding indium coating equipment) is a specialized automation equipment in the PVD sputtering target material industry. It is specifically designed for uniformly coating metal indium on the inner wall of the back tube of cylindrical/tubular rotating targets, and is used for low-temperature bonding of ITO, indium oxide, ceramic rotating targets and metal back tubes, replacing traditional manual indium scraping process.

Parameters Of Ultrasonic System:
Model FSY-3008-PL
Name 30Khz Ultrasonic Flat Indium Coating
Frequency 30Khz(28/20Khz for optional)
Power 800w
Temperature Range 150-400℃
Working Amplitude 3-20μm
Input Voltage 220V±10%,50/60Hz, 4A
Working Mode Intermittent/Continuous Switchable
Control Mode Support I/O or 485 communication control, can be integrated with automation operations
Advantages:
  • Stable coating quality
    There are no ripples or blind spots on the inner wall, and the adhesion of the indium layer is extremely strong. The target material is not easily detached or delaminated after binding, greatly reducing the scrap rate of sputtering production.
  • Save indium and reduce costs
    Ultra thin and uniform coating reduces indium consumption by more than 30% compared to manual methods, and excess indium can be recycled and reused.
  • Fully automated and labor-saving
    The inner wall of the long tube does not require manual operation, and the CNC sets the stroke, speed, and vibration frequency. One person can be on duty for multiple machines, making it suitable for mass production.
  • Helpless soldering flux environmentally friendly process
    No chemical flux residue, avoiding later corrosion and bubble delamination, suitable for high-end display and semiconductor high-purity target production.
  • Adapt to difficult to stick substrates
    Indium can be stably coated on various metal/non-metal inner walls such as stainless steel, titanium, ceramic ITO, silicon dioxide, etc.
