120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
120kHz High-Frequency Ultrasonic Scattering Spray Equipment
Specifications
Payment Terms :
T/T,Western Union
Max Power :
10w
Liquid viscosity :
<10cps
Model Number :
FSW-1202-L
Application :
widely applied in MEMS, semiconductor wafers, PEM fuel cells, sensors, medical balloon catheters and optical thin films
Brand Name :
FUNSONIC
Production Name :
120Khz Scattering Ultrasonic Nozzle Atomization
MOQ :
1 UNIT
Packaging Details :
Packed by carton
Particle size :
<5μm
Spray flow :
0.5-20ml
Place of Origin :
CHINA
Price :
Negotation
Automized Particle Size Range :
10-35μm
Supply Ability :
1000 unit per month
Frequency :
120Khz
Certification :
CE
Description

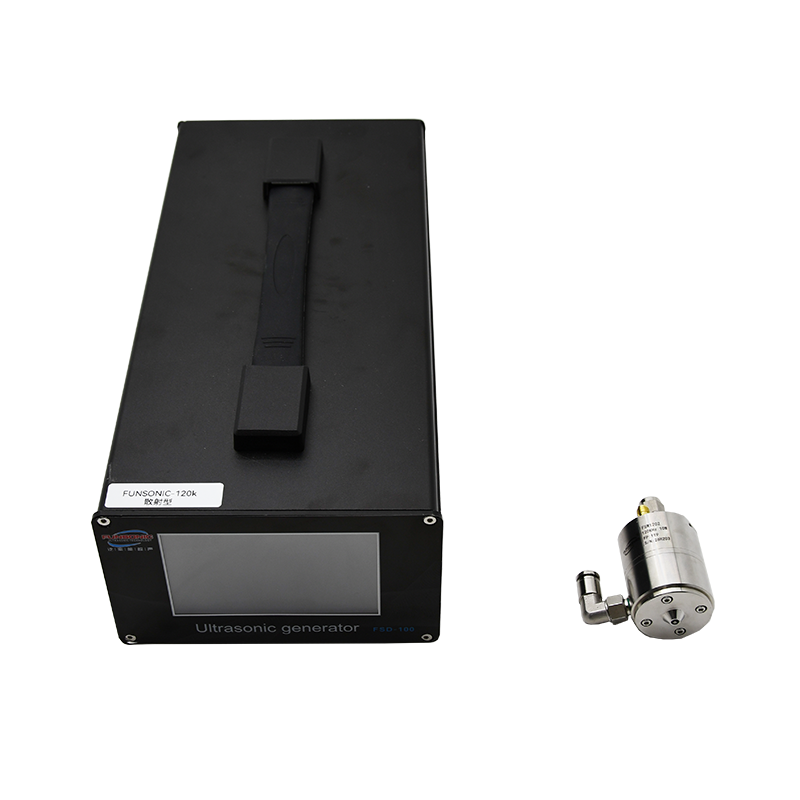

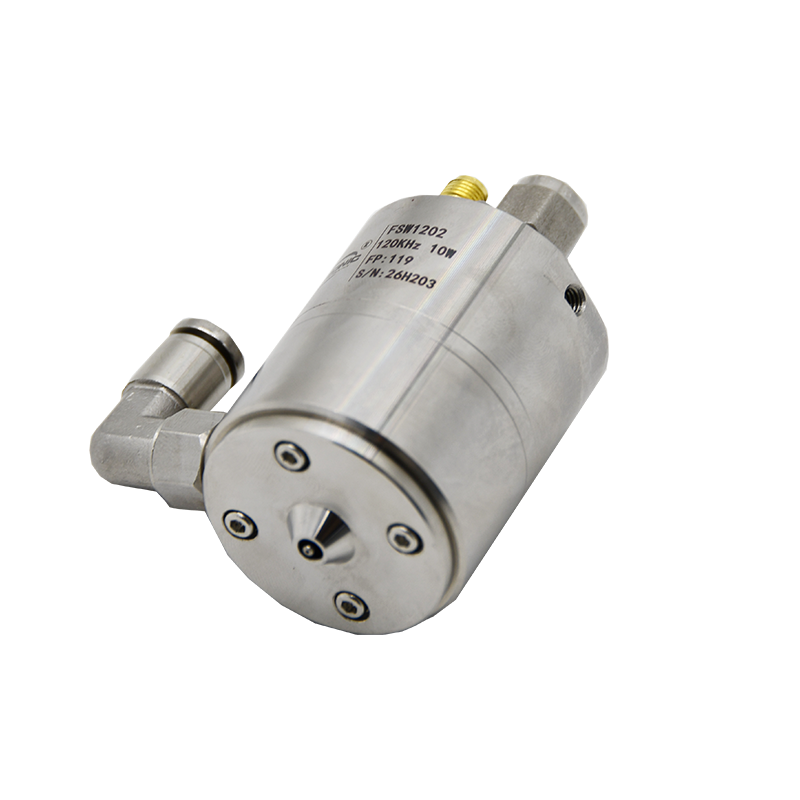

120kHz High-Frequency Ultrasonic Scattering Spray Equipment



Description:


The 120kHz high-frequency ultrasonic scattering spray equipment leverages the 120kHz high-frequency resonance of piezoelectric transducers to gently atomize liquid feedstock into fine, uniformly dispersed micron-sized droplets. Featuring a built-in vortex flow channel inside the nozzle, the carrier gas forms a rotating wide-angle scattering spray field, endowing the aerosol stream with excellent flow-wrapping capability.

It delivers conformal, integrated and uniform coating for workpieces with planar surfaces, steps, trenches, sidewalls, curved surfaces and other diverse 3D microstructures. It addresses a long-standing industry limitation of conventional focused ultrasonic nozzles: poor wetting on sidewalls and uneven film thickness on substrates with complex topography.

The complete system integrates a precision micro-liquid feeding unit, carrier gas pressure regulation system, and XYZ three-axis motion platform, with an optional temperature control module. The spray features soft kinetic energy without high-pressure impact, which reliably protects delicate precision substrates. It drastically reduces overspray and slurry splashing, achieving far higher material utilization than traditional two-fluid spraying. The nozzle boasts superior anti-clogging performance and lower long-term operation and maintenance costs.

Coating thickness can be precisely tuned from tens of nanometers to tens of microns, delivering outstanding film uniformity. Compatible with low-viscosity solutions and nano-suspensions, it is widely applied in fuel cell MEAs, semiconductor wafers, MEMS devices, sensing elements, medical balloon catheters, optical thin films, electronic insulating coatings and more. It satisfies ultra-thin film fabrication demands ranging from cutting-edge R&D to pilot-scale production.



Parameters:


Model FSW-1202-L
Name 120Khz Scattering Ultrasonic Nozzle Atomization
Frequency 120Khz
Atomized particle size range(μm) 10-35
Spray width(mm) 40-80
Spray flow(ml/min) 0.5-20
Spray height(mm) 30-80
Liquid viscosity (cps) <10
Particle size (μm) <5
Diversion pressure (Mpa) <0.05
Application widely applied in MEMS, semiconductor wafers, PEM fuel cells, sensors, medical balloon catheters and optical thin films



Core Advantages :


✅ 120kHz high-frequency atomization generates droplets with uniform particle size, balancing fine atomization quality and spraying efficiency

✅ Vortex wide-angle scattering spray enables conformal coating on 3D trenches, steps, curved surfaces and sidewalls

✅ Low-kinetic soft spray safeguards fragile precision substrates and effectively suppresses slurry agglomeration

✅ Nanoscale film thickness control with stable and consistent coating performance

✅ High raw material utilization reduces liquid waste; nozzle resists clogging for easy maintenance

✅ Modular integrated architecture, expandable with heating stages, vacuum chucks and fully automatic motion platforms
