Specifications
Payment Terms :
T/T,Western Union
Particle size :
<10μm
Model Number :
FSW-6003-L
Frequency :
60Khz
MOQ :
1 UNIT
Packaging Details :
Packed by carton
Spray flow :
0.5-10ml/min
Brand Name :
FUNSONIC
Production Name :
Ultrasonic Spraying Nozzle
Price :
Negotation
Liquid viscosity :
<30cps
Supply Ability :
1000 unit per month
Application :
Larger Solid Particles and Higher Solid Content Slurries
Certification :
CE
Max Power :
50w
Place of Origin :
CHINA
Automized Particle Size Range :
15-40μm
Description

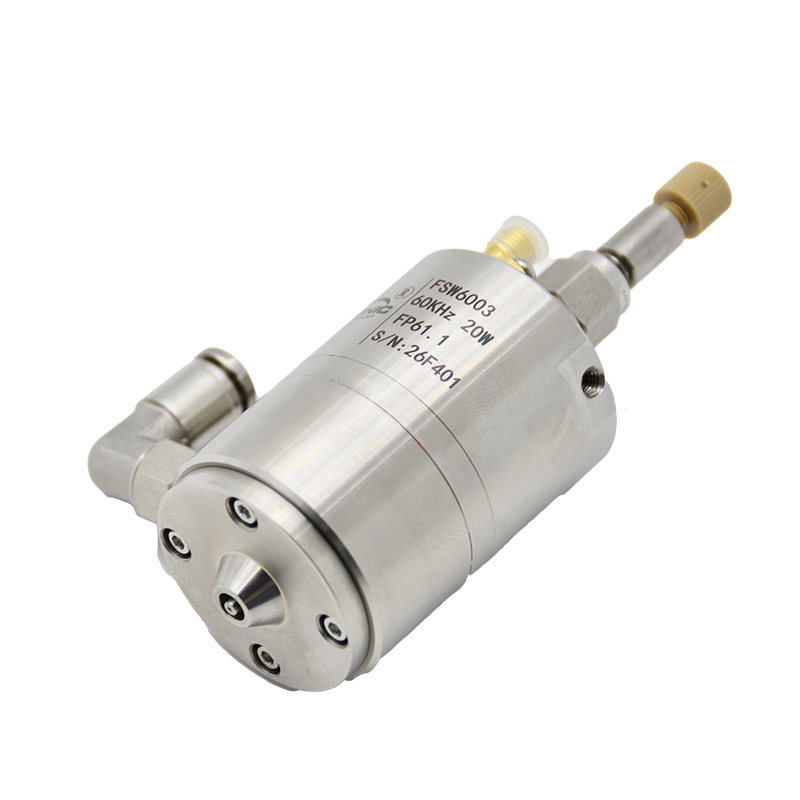

60kHz Ultrasonic Capillary Needle Convergent Spray System



Description:


This 60kHz ultrasonic capillary needle convergent spray system features replaceable capillary liquid feeding needles. It is engineered for slurries prone to clogging, with precise micro liquid supply ranging from 0.001 to 1 ml/min.

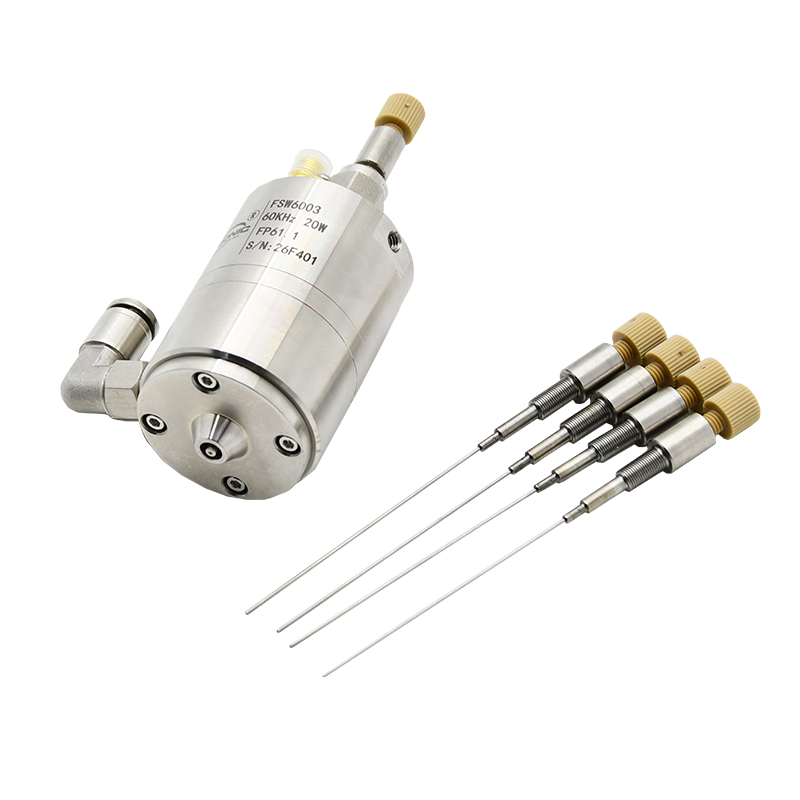

Liquid is delivered through the independent capillary needle and atomized on the ultrasonic vibrating surface instead of extruding through tiny orifices, which effectively avoids particle jamming. The replaceable capillary tube allows quick swap when blockage occurs, without disassembling the entire spray head, greatly cutting downtime and maintenance costs.

Equipped with convergent shaping gas, the system generates concentrated spray plume with clear coating boundaries. Low-speed droplets prevent substrate impact and splash-back, improving material utilization. The 60kHz high-frequency atomization delivers uniform micron-sized droplets for smooth, consistent thin films.

It is widely applied in fuel cell MEA, perovskite solar cells, semiconductor functional coatings, biosensor and medical functional coating, ideal for laboratory R&D and small-batch precision thin-film deposition.



Parameters:


Model FSW-6003-L
Name Aggregation type ultrasonic nozzle
Frequency 60Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 2-20
Spray flow(ml/min) 0.5-10
Spray height(mm) 10-30
Liquid viscosity (cps) <30
Particle size (μm) <10
Maximum solid content (%) 15%
Diversion pressure (Mpa) <0.05
Application Suitable for larger solid particles and higher solid content slurries
