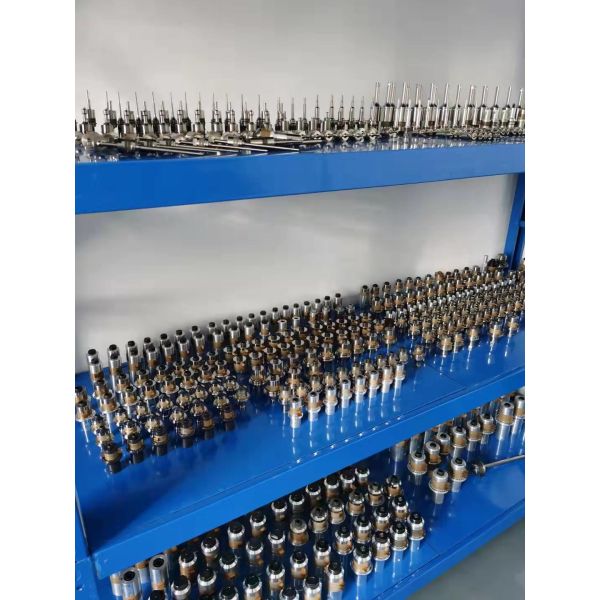

PZT 20Khz Ultrasonic Transducer with 4pcs ceramic discs
PZT 20Khz Ultrasonic Transducer with 4pcs ceramic discs
PZT 20Khz Ultrasonic Transducer with 4pcs ceramic discs
PZT 20Khz Ultrasonic Transducer with 4pcs ceramic discs
PZT 20Khz Ultrasonic Transducer with 4pcs ceramic discs
PZT 20Khz Ultrasonic Transducer with 4pcs ceramic discs
PZT 20Khz Ultrasonic Transducer with 4pcs ceramic discs
PZT 20Khz Ultrasonic Transducer with 4pcs ceramic discs
Specifications
Brand Name :
QRsonic
Model Number :
QR-5020-4BZ
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Ceramic Transducer
Frequency :
20 khz
Output power :
1500 w
Joint bolt :
M18
Ceramic disc Diameter :
50mm
Ceramic discs :
PZT8
Capacitance :
11000-12000 pf
Application :
Spare Part of Mask Making Machine
Description

Types of Ultrasonic Ceramic 20Khz Transducers Price China PZT Manufacrurers

Description:

The transducer consists of a shell, a matching layer, a piezoelectric ceramic disc transducer, a backing, a lead-out cable and a Cymbal array receiver.

This transducer has played a key role in the application of ultrasonic mask welding technology. Ultrasonic mask welding transfers high-frequency vibration to the mask non-woven fabric to achieve connection. When the mask non-woven fabric material passes between the ultrasonic welding heads, the non-woven fabric will vibrate and quickly generate heat. This heat melts and solidifies the synthetic fibers of the non-woven fabric, forming a seam that will not fray or tear, completely replacing traditional manual sewing.

Specifications:

Model QR-5020-4BZ
Frequency 20khz
Output power 1500 watt
Joint bolt M18*1.5
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-12nf
Amplitude 10 um
Application Mask welding machine

Parameters:

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

 Capacitance

Input power (W)
Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100

Types of Ultrasonic Ceramic 20Khz Transducers Price China PZT Manufacrurers

PZT 20Khz Ultrasonic Transducer with 4pcs ceramic discs

PZT 20Khz Ultrasonic Transducer with 4pcs ceramic discs
