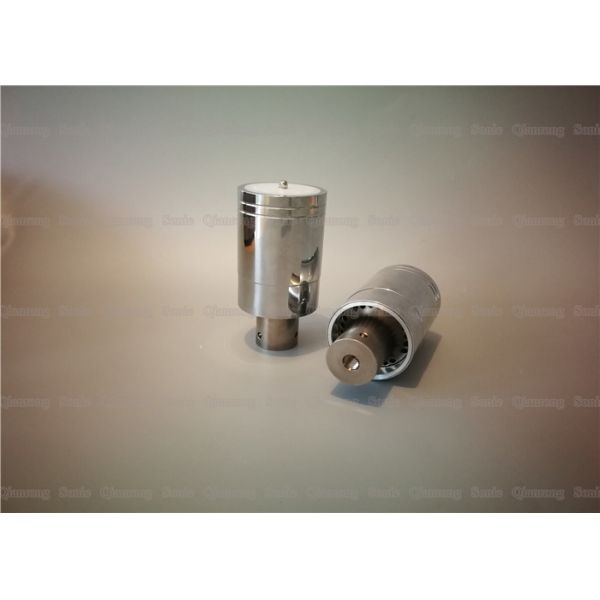

Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter
Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter
Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter
Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter
Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter
Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter
Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter
Exquisite Ultrasonic Welding Transducer With Metal Sheel Branson Replacement CJ20 Converter
Specifications
Brand Name :
QRsonic
Model Number :
QR-5020-CJ20
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Replacement Converter
Frequency :
20 khz
Output power :
3300 watt
Joint bolt :
1/2-20UNF
Ceramic disc Diameter :
50mm
Capacitance :
18-20nf
Amplitude :
10um
Application :
Ultrasonic plastic welding machine
Description

Exquisite High Imitation Transducer with Metal Sheel Branson Replacement CJ20 Converter

Description:

Ultrasonic transducer is a device that realizes the conversion of electrical, mechanical or acoustic energy from one form of energy to another form of energy. It is called a transducer, also called an active transducer.The more mature and reliable one is the piezoelectric effect. The device that realizes the conversion of electrical energy and acoustic energy is also called a piezoelectric transducer. The transducer produced by our company adopts imported piezoelectric ceramics and titanium alloy variable rods. The main features are high efficiency: the board has a high quality factor, and it can work at the resonance frequency to obtain extremely high electroacoustic conversion efficiency. The amplitude is large: the structure optimized by the computer has a high vibration speed ratio, a large front cover vibration, and a large power: Under the action of the prestressed rod, the energy of the ceramic sheet is maximized and the heat is good: the transducer has a small impedance, a small amount of heat, a wide temperature range, and high reliability and long life.

Specifications:

Model QR-5020-CJ20
Frequency 20 khz
Output power 3300 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 18-20nf
Amplitude 10 um
Application Plastic welding machine

Specification:

Item No

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

 Input Power Machine
1-QR-BCJ20 1/2-20UNF 50 6 20 3300

Branson

2000 series
2-QR-BCR20 1/2-20UNF 50 6 20 3300

Branson

2000 series
3-QR-B502 1/2-20UNF 50 4 20 2000

Branson

5170, 8800
4-QR-B402 1/2-20UNF 40 4 20 900

Branson

8200, 8400
5-QR-B803 1/2-20UNF 50 4 20 2000

Branson

8700
6-QR-B902J 1/2-20UNF 50 4 20 900

Branson

910W or IW+
7-QR-B4TH M8 25 4 40 800 40khz Branson welders
8-QR-B4TR M8 25 4 40 800 40khz Branson welders
9-QR-D20 1/2-20UNF 50 2 20 2000 20khz Dukane Heavy Duty
10-QR-D41S30 1/2-20UNF 50 4 20 2000 Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
11-QR-D41C30 1/2-20UNF 50 4 20 2000
12-QR-D110-3122 1/2-20UNF 50 4 20 2000
13-QR-D110-3168 1/2-20UNF 50 4 20 2000 Dukane Model 43B18
14-QR-D41C28 M8 35 2 40 800 40khz Dukane welders
15-QR-D41C29 M8 35 2 40 800 40khz Dukane welders
16-QR-R3510 M8 25 4 35 800 35Khz Rinco Welders
17-QR-R35 M8*1.25 25 2 35 500 35khz Rico Welders
18-QR-R20 1/2-20UNF 50 2 20 1200
19-QR-J3506 M8 25 4 35 800
20-QR-J3710 M8 25 4 37 500 CV231
21-QR-J3706-W1 M8 25 4 37 500
22-QR-J3706-W2 M8 32 2 37 400 CV3510
23-QR-T35 M8 25 4 35 800 35khz Telsonic Machine
24-QR-H20 1/2-20UNF 50 6 20 3000

Special Items can be customized.
