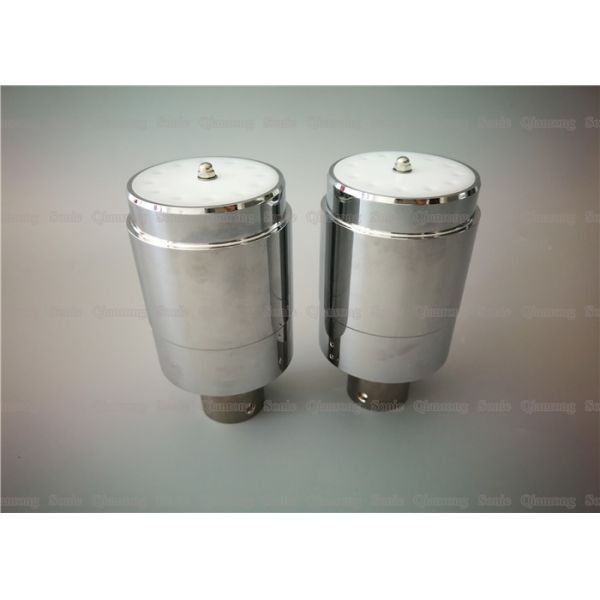

Replacement 20Khz 2000W Branson Ultrasonic Converter Model 922JA For 920IW Welder
Replacement 20Khz 2000W Branson Ultrasonic Converter Model 922JA For 920IW Welder
Replacement 20Khz 2000W Branson Ultrasonic Converter Model 922JA For 920IW Welder
Replacement 20Khz 2000W Branson Ultrasonic Converter Model 922JA For 920IW Welder
Replacement 20Khz 2000W Branson Ultrasonic Converter Model 922JA For 920IW Welder
Replacement 20Khz 2000W Branson Ultrasonic Converter Model 922JA For 920IW Welder
Replacement 20Khz 2000W Branson Ultrasonic Converter Model 922JA For 920IW Welder
Replacement 20Khz 2000W Branson Ultrasonic Converter Model 922JA For 920IW Welder
Specifications
Brand Name :
QRsonic
Model Number :
QR-B922JA
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Replacement Converter
Frequency :
20 khz
Output power :
2000 watt
Joint bolt :
1/2-20UNF
Ceramic disc Diameter :
50mm
Capacitance :
11-12nf
Amplitude :
10um
Application :
Ultrasonic plastic welding machine
Description

Replacement 20Khz 2000W Converter for Branson Model 922JA for Using with 920IW Welder

Description:

All of the components used in construction of these Branson 922J replacement converters are all new, not recovered from scrapped units. T

Replacement converter for Branson model 922JA (101-135-049), for use with 920IW or IW+ model integrated benchtop welders or 920 D/M (2000 watt) power supplies using actuator or assembly stand These converters are made in a highly controlled and repeatable manner to duplicate the performance of the OEM models.

Frequency matching is also very important. This is primarily because the ultrasonic transducer can only operate at its resonant frequency point, so the drive power, horn, and welding tool (tool head) should all operate at this frequency. In general, we hope that this difference does not exceed ±0.1 kHz at most, and it is better to be smaller. We strongly recommend that the frequency of the matching welding die (welding head) be lower than the vibration sub-frequency by about 0.1 kHz (small signal frequency). That is to say, if the frequency of the original vibrator small signal measurement is 14.85 kHz, it is most ideal to measure the frequency after connecting the mold to 14.75 kHz. At the same time, it should be considered that after the ultrasonic transducer is connected to the horn and the die head, the resonance frequency peak of the system becomes very sharp, that is, the bandwidth is very narrow, the mechanical quality factor is large, and the frequency offset will cause the impedance to be very high.

Specifications:

Model QR-B922JA
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-12nf
Amplitude 10 um
Application Plastic welding machine

Specification:

Item No

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

 Input Power Machine
1-QR-BCJ20 1/2-20UNF 50 6 20 3300

Branson

2000 series
2-QR-BCR20 1/2-20UNF 50 6 20 3300

Branson

2000 series
3-QR-B502 1/2-20UNF 50 4 20 2000

Branson

5170, 8800
4-QR-B402 1/2-20UNF 40 4 20 900

Branson

8200, 8400
5-QR-B803 1/2-20UNF 50 4 20 2000

Branson

8700
6-QR-B902J 1/2-20UNF 50 4 20 900

Branson

910W or IW+
7-QR-B4TH M8 25 4 40 800 40khz Branson welders
8-QR-B4TR M8 25 4 40 800 40khz Branson welders
9-QR-D20 1/2-20UNF 50 2 20 2000 20khz Dukane Heavy Duty
10-QR-D41S30 1/2-20UNF 50 4 20 2000 Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
11-QR-D41C30 1/2-20UNF 50 4 20 2000
12-QR-D110-3122 1/2-20UNF 50 4 20 2000
13-QR-D110-3168 1/2-20UNF 50 4 20 2000 Dukane Model 43B18
14-QR-D41C28 M8 35 2 40 800 40khz Dukane welders
15-QR-D41C29 M8 35 2 40 800 40khz Dukane welders
16-QR-R3510 M8 25 4 35 800 35Khz Rinco Welders
17-QR-R35 M8*1.25 25 2 35 500 35khz Rico Welders
18-QR-R20 1/2-20UNF 50 2 20 1200
19-QR-J3506 M8 25 4 35 800
20-QR-J3710 M8 25 4 37 500 CV231
21-QR-J3706-W1 M8 25 4 37 500
22-QR-J3706-W2 M8 32 2 37 400 CV3510
23-QR-T35 M8 25 4 35 800 35khz Telsonic Machine
24-QR-H20 1/2-20UNF 50 6 20 3000

Special Items can be customized.
