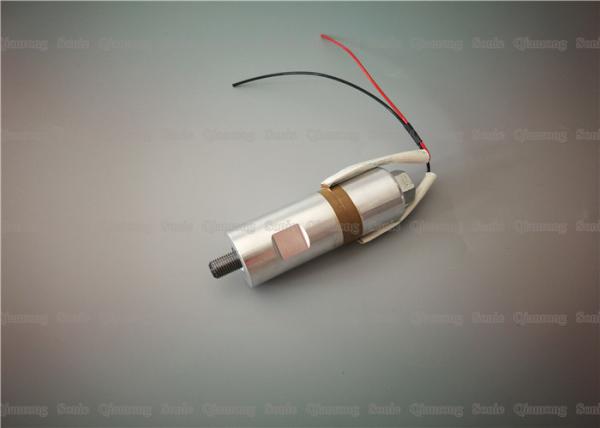

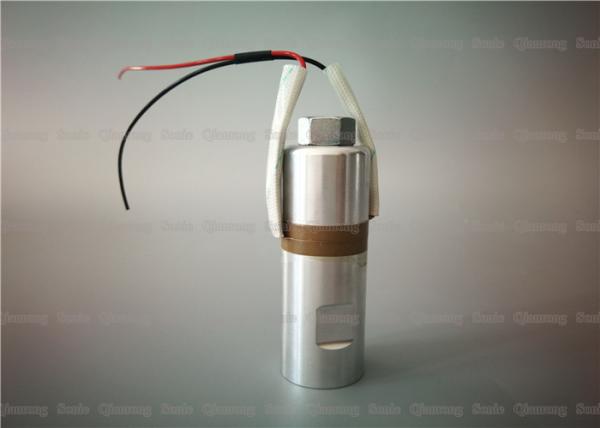

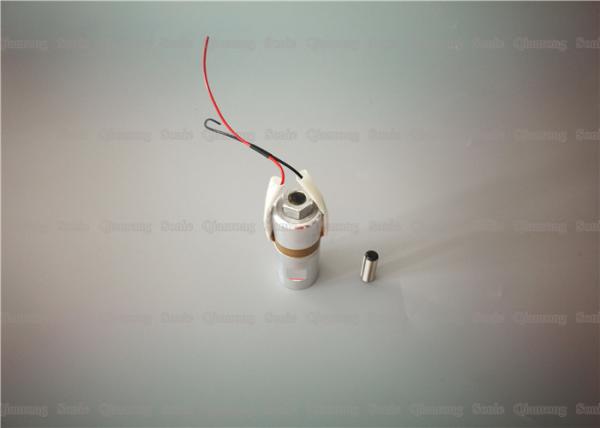

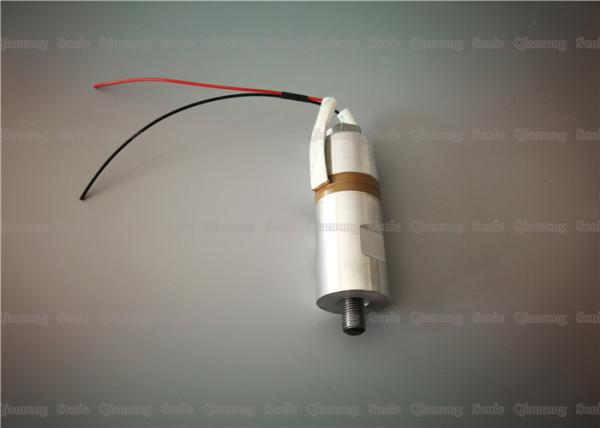

28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic
28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic
28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic
28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic
28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic
28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic
28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic
28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic
Specifications
Brand Name :
QRsonic
Model Number :
QR-3028-2BZ
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Welding Transducer
Frequency :
28 khz
Output power :
400 watt
Joint bolt :
3/8-24UNF
Ceramic disc Diameter :
30mm
Qty of ceramic discs :
2pcs
Capacitance :
2.8-3.8nf
Amplitude :
8um
Description

28Khz Spare Parts Ultrasonic Spot Welding with 30mm Diameter Ceramic

Description:

Ultrasonic is widely used in production, such as welding, cutting, slitting, and plastic welding of various non-woven/chemical fiber cloths. However, due to the difference between ultrasonic and high-frequency principles, the applicable raw materials and applications are also applicable.

Ultrasonic transducer is an energy conversion device whose function is to convert the input electrical power into mechanical power (ie, ultrasonic waves) and then pass it out, while it consumes a small amount of power (less than 10%). Therefore, the most important consideration for using ultrasonic transducers is the matching with the input and output terminals, followed by the mechanical mounting and mating dimensions. There are many types of ultrasonic machinery on the market, and customers must provide accurate and reliable indicators to ensure that the ultrasonic transducer products provided by the company can be matched with your company's ultrasonic machines to achieve the best performance.

Specifications:

Model QR-3028-2BZ
Frequency 28khz
Output power 400 watt
Joint bolt 3/8-24UNF
Ceramic disc Diameter 30mm
Qty of ceramic discs 2pcs
Capacitance 2.8-3.8nf
Amplitude 8 um
Application Plastic welding machine

Parameters:

The columnar type NTK TYPE

Item No.

Connect screw

Ceramic dia (mm)

 Qty of Ceramic (pc)

Frequency (khz)

 Capacitance

power (W)
Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600 7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300 500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500 10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800 400
3028-4BZ M10*1 30 4 28 6000-7000 700
2528-4FZ M8 X 1 25 4 28 3900-4300 400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500 300
3030-4BZ M10 30 4 30 6200-6900 700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100 500
3035-4BZ M10 X 1 30 4 35 5000-6200 800
2535-2FZ M8 X 1 25 2 35 1900-2200 400
2540-2BZ 3/8-24UNF 25 2 40 2000-2300 500
3040-4BZ M10 30 4 40 5500-6200 1000
3050-4BZ M8 30 4 50 5500-6200 600
1560-2BZ M6 X 0.75 15 2 60 700-800 100

28Khz Spare Parts Ultrasonic Spot Welding with 30mm Diameter Ceramic

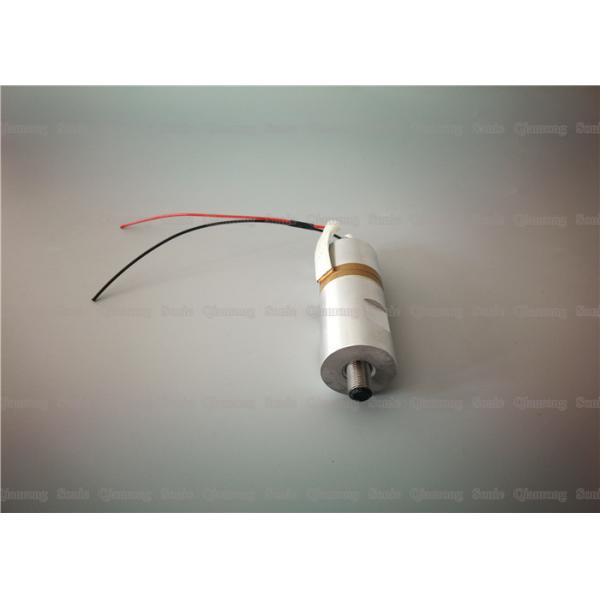

28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic

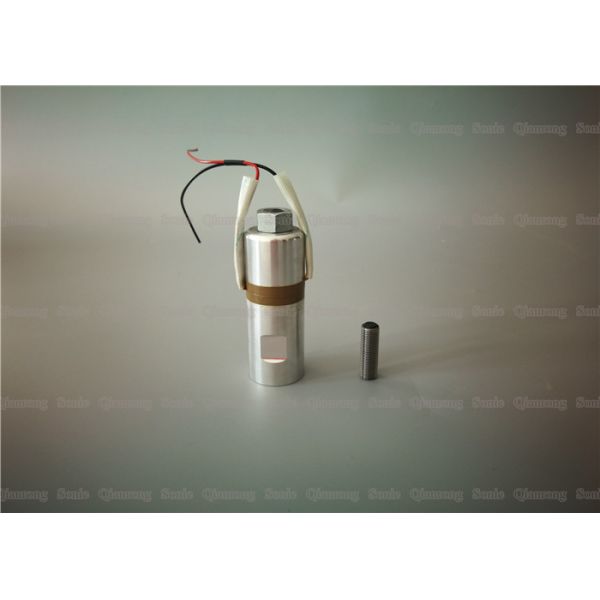

28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic
