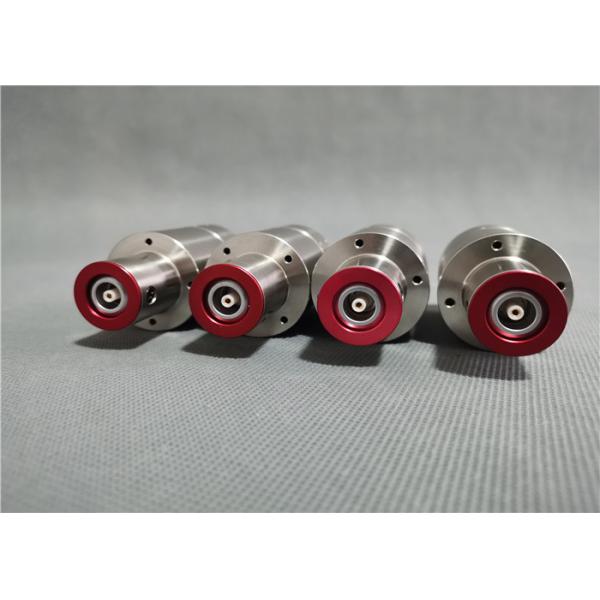

1200w Ultrasonic Welding Transducer With 4pcs Piezoelectric Ceramics
1200w Ultrasonic Welding Transducer With 4pcs Piezoelectric Ceramics
1200w Ultrasonic Welding Transducer With 4pcs Piezoelectric Ceramics
1200w Ultrasonic Welding Transducer With 4pcs Piezoelectric Ceramics
1200w Ultrasonic Welding Transducer With 4pcs Piezoelectric Ceramics
1200w Ultrasonic Welding Transducer With 4pcs Piezoelectric Ceramics
1200w Ultrasonic Welding Transducer With 4pcs Piezoelectric Ceramics
1200w Ultrasonic Welding Transducer With 4pcs Piezoelectric Ceramics
Specifications
Brand Name :
QRsonic
Model Number :
QR-T35
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Replacement Transducer
Frequency :
35khz
Output power :
1200 watt
Joint bolt :
M8
Diameter of Ceramic :
25mm
Qty of ceramics :
4pcs
Amplitude :
6um
Application :
Repacement Telsonic SE3512C Konverter
Description

1200w Ultrasonic Titanium Welding Transducer with 4pcs Piezoelectric Ceramics

Description:

The ultrasonic transducer uses high-quality, high-consistency piezoelectric ceramics, professional structure design, stable operation, high stability, high consistency, high load test, non-hot, high amplitude, low impedance, stable wave, Characteristics of constant waves.

Repacement Telsonic SE3512C Konverter. Ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. It is generally magnetostrictive and piezoelectric ceramic. The power output is sent to the ultrasonic generator, and then to the ultrasonic transducer. The ultrasonic derivation device can generate ultrasonic waves.

Specifications:

Model QR-T35
Frequency 35 khz
Output power 1000 watt
Joint bolt M8
Ceramic disc Diameter 25mm
Qty of ceramic discs 4pcs
Capacitance 2.1-2.3nf
Amplitude 6 um
Application Plastic welding machine

Specification:

Item No

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

 Input Power Machine
1-QR-BCJ20 1/2-20UNF 50 6 20 3300

Branson

2000 series
2-QR-BCR20 1/2-20UNF 50 6 20 3300

Branson

2000 series
3-QR-B502 1/2-20UNF 50 4 20 2000

Branson

5170, 8800
4-QR-B402 1/2-20UNF 40 4 20 900

Branson

8200, 8400
5-QR-B803 1/2-20UNF 50 4 20 2000

Branson

8700
6-QR-B902J 1/2-20UNF 50 4 20 2000

Branson

910W or IW+
7-QR-B4TH M8 25 4 40 800 40khz Branson welders
8-QR-B4TR M8 25 4 40 800 40khz Branson welders
9-QR-D20 1/2-20UNF 50 2 20 2000 20khz Dukane Heavy Duty
10-QR-D41S30 1/2-20UNF 50 4 20 2000 Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
11-QR-D41C30 1/2-20UNF 50 4 20 2000
12-QR-D110-3122 1/2-20UNF 50 4 20 2000
13-QR-D110-3168 1/2-20UNF 50 4 20 2000 Dukane Model 43B18
14-QR-D41C28 M8 35 2 40 800 40khz Dukane welders
15-QR-D41C29 M8 35 2 40 800 40khz Dukane welders
16-QR-R3510 M8 25 4 35 800 35Khz Rinco Welders
17-QR-R35 M8*1.25 25 2 35 500 35khz Rico Welders
18-QR-R20 1/2-20UNF 50 2 20 1200
19-QR-J3506 M8 25 4 35 800
20-QR-J3710 M8 25 4 37 500 CV231
21-QR-J3706-W1 M8 25 4 37 500
22-QR-J3706-W2 M8 32 2 37 400 CV3510
23-QR-T35 M8 25 4 35 800 35khz Telsonic Machine
24-QR-H20 1/2-20UNF 50 6 20 3000

Special Items can be customized.

Four aspects to ultrasonic properties:

1) Ultrasonic waves can be effectively propagated in media such as gases, liquids, solids, and solid solutions.

2) Ultrasonic waves can transmit very strong energy.

3) Ultrasonic waves will produce reflection, interference, superposition and resonance of the hot melt machine.

4) When ultrasonic waves propagate in a liquid medium, strong impact and cavitation can occur at the interface.

1200w Ultrasonic Titanium Welding Transducer with 4pcs Piezoelectric Ceramics

1200w Ultrasonic Welding Transducer With 4pcs Piezoelectric Ceramics

1200w Ultrasonic Welding Transducer With 4pcs Piezoelectric Ceramics
