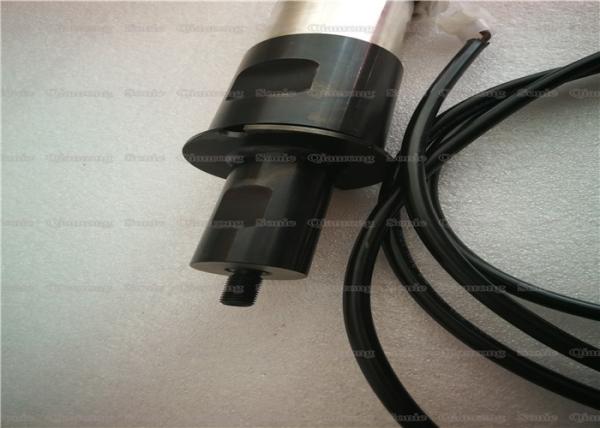

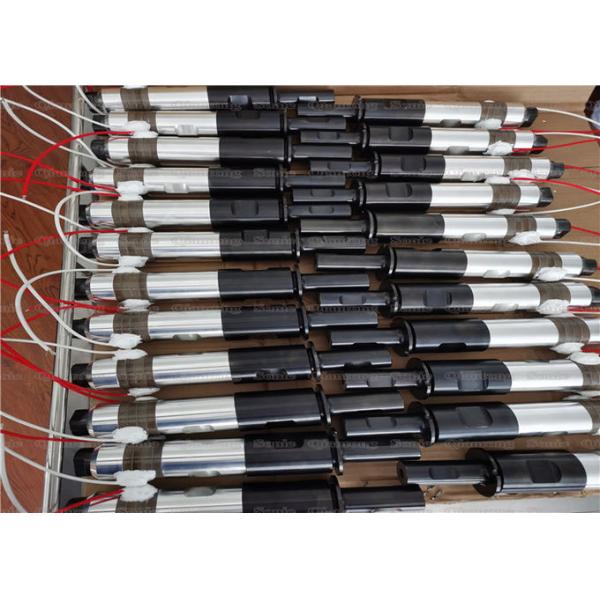

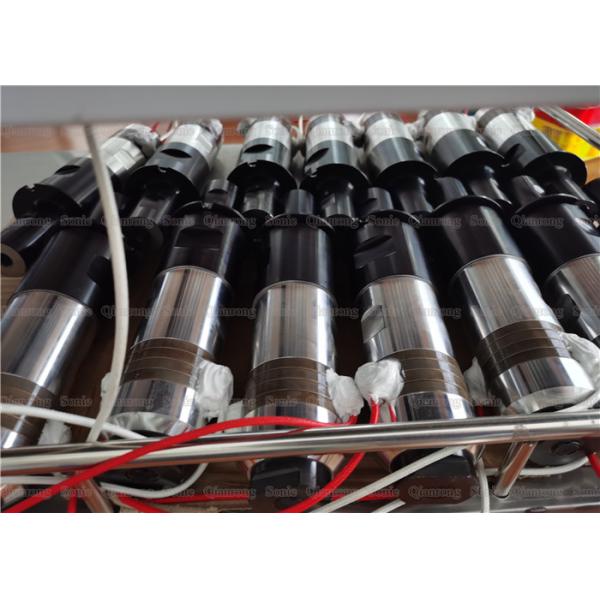

Surgical Mask Welding 20khz Ultrasonic Oscillator Generator And Horn Set
Surgical Mask Welding 20khz Ultrasonic Oscillator Generator And Horn Set
Surgical Mask Welding 20khz Ultrasonic Oscillator Generator And Horn Set
Surgical Mask Welding 20khz Ultrasonic Oscillator Generator And Horn Set
Surgical Mask Welding 20khz Ultrasonic Oscillator Generator And Horn Set
Surgical Mask Welding 20khz Ultrasonic Oscillator Generator And Horn Set
Surgical Mask Welding 20khz Ultrasonic Oscillator Generator And Horn Set
Surgical Mask Welding 20khz Ultrasonic Oscillator Generator And Horn Set
Specifications
Brand Name :
QRsonic
Model Number :
QR-5020-4BZ-BJ
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Transducer + Booster
Output Power :
2000w
Frequency :
20khz
Ceramic disc Diameter :
50mm
Ceramics :
PZT8
Capacitance :
11-13nf
Connected Screw :
M12*1.75
Application :
Mask Making machine
Description

Surgical Mask Welding Using 20Khz Ultrasonic Equipment Frequency Generator and Horn Set

Description:

Ultrasonic transducers are currently mainly used in ultrasonic mask machines, ultrasonic plastic welding machines, ultrasonic metal welding machines, ultrasonic cleaning machines, gas cameras, trichlorine machines and other equipment. In the purchase process of ultrasonic transducers, in addition to paying attention to the energy conversion The quality of the transducer should also pay attention to whether it matches the ultrasonic equipment. This has a decisive influence on the performance of the equipment. The main consideration for matching is the capacitance of the transducer, followed by the frequency of the transducer.

Specifications:

Model QR-5020-4BZ-BJ
Frequency 20khz
Output power 2000 watt
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-13nf
Application Mask welding machine

Parameters:

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

 Capacitance

Input power (W)
Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100

Surgical Mask Welding Using 20Khz Ultrasonic Equipment Frequency Generator and Horn Set
