Antenna Embedding Ultrasonic Metal Welding Machine
Antenna Embedding Ultrasonic Metal Welding Machine
Antenna Embedding Ultrasonic Metal Welding Machine
Antenna Embedding Ultrasonic Metal Welding Machine
Antenna Embedding Ultrasonic Metal Welding Machine
Antenna Embedding Ultrasonic Metal Welding Machine
Antenna Embedding Ultrasonic Metal Welding Machine
Antenna Embedding Ultrasonic Metal Welding Machine
Specifications
Brand Name :
QRsonic
Model Number :
QR-W70D
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 unit per month
Delivery Time :
10 workdays
Packaging Details :
Packed in wooden case
Products Name :
Ultrasonic Wire Embedding Machine
Frequency :
70KHZ
Power :
50w
Voltage :
220V
Protective sleeve :
φ16*121mm
welding head :
Aperture 0.m or 0.5mm
Cooling compressor air :
＞0.1MPa/unit
Generator :
Digital generator
Description

Ultrasonic 70Khz Antenna Embedding Components with 0.m Hole for Contactless Smart Card

Description:

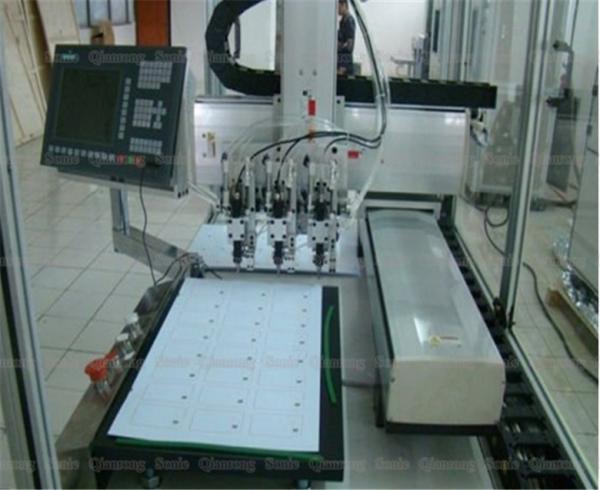

Ultrasonic smart card welder, Which is also known as smart card antenna welding machine, smart card spot welding machine, smart card implantable antenna machine, is a professional device for the production of smart cards/ID cards, widely used in welding sheet positioning, antenna implanted. In recent years, it is an important application of ultrasonic welding.

Our digital ultrasonic smart card welder has been upgraded in the matching, even if implanting head appeared certain wear, driving power generator to quickly search and find the frequency of implanting head accurately, so as to ensure the stability of the whole ultrasonic system. Prolong the service life of the welding head, saves the loss for the majority of users.

Specifications:

Type QR-W70D
Frequency(KHz) 70KHz
Trigger External control
welder head Titanium Alloy Material
Threading hole Φ0.m or Φ0.5mm
Power code 5M
Generator Digital generator
Generator Size 155*265*170mm

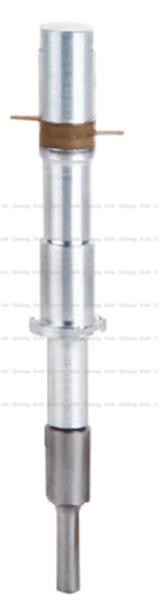

Cover dimension Φ16X121mm
Cover material Aluminum
Cooling way compressed air cooling (Φ4mm conduit)
Speed 0.1-0./s
Thread fixed cycle length 60000 m/s

Features:

  • Main features Intelligent search frequency: automatic frequency function to extend the life of the plug.

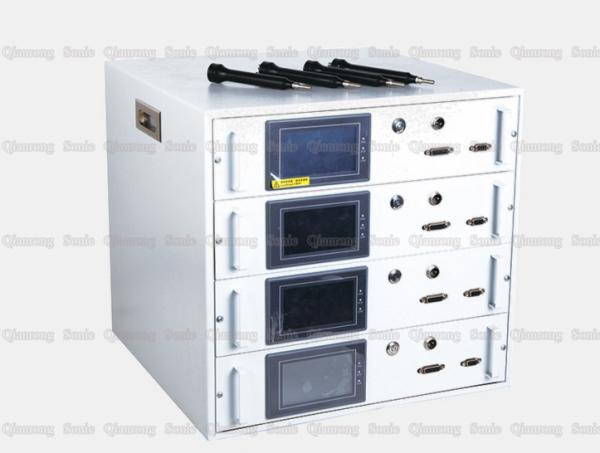

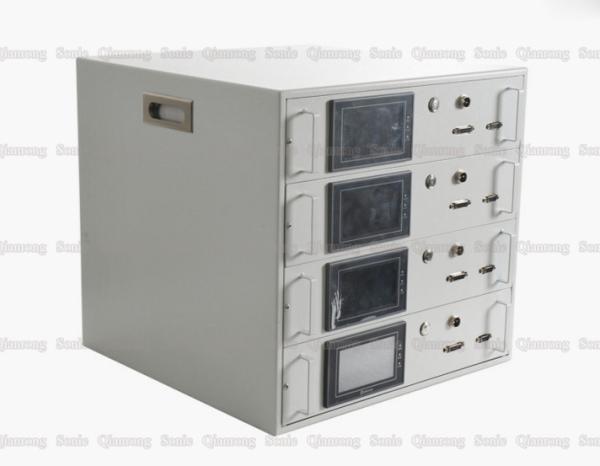

  • Installation method: single cabinet, combination cabinet, can control eight embedding rods to work at the same time.
  • Control mode: multi-point point energy fine adjustment, external PLC / computer signal control, easy to operate.
  • Button-on function: The welding energy can be adjusted according to the thickness and hot-melt of the welding material, and the operation is simple.
  • Self-detection function: fault display and error alarm signal.
  • Appearance: The body design is light, beautiful and durable, and has good heat dissipation performance.
  • Stability: Long working hours, uniform energy output.

Ultrasonic 70Khz Antenna Embedding Components with 0.m Hole for Contactless Smart Card

Antenna Embedding Ultrasonic Metal Welding Machine

Antenna Embedding Ultrasonic Metal Welding Machine
