Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
Lanry
Model Number :
MT150/160
Product name :
Ultrasonic metal thickness gauge
Suitable material :
metallic and non-metallic
Measure range :
0.75mm to 300mm(Steel)
Temperature Range :
0-45℃ & 0-300℃(A) optional
Accuracy :
±(0.5%Thickness+0.04)mm
Display resolution :
0.1 mm
Supply Ability :
5000 Unit/Units per Week ultrasonic thickness gauge
Packaging Details :
ultrasonic thickness gauge 32*25*9mm,2.5kg
Port :
Shanghai
MOQ :
1 Unit/Units
Price :
$45.00 - $1,028.00 / Units
Description
Product Description
Ultrasonic Thickness Gauge Available For Steel Measurement

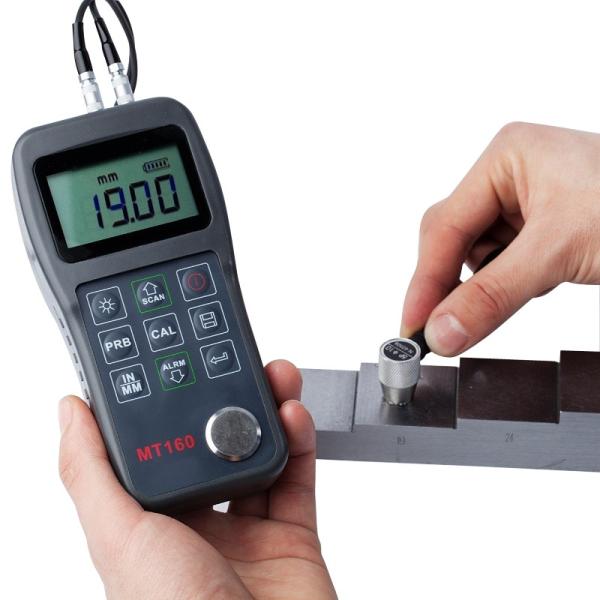

Ultrasonic Thickness Gauge MT150/160 is used for measuring the thickness of materials where access to only one side of the test piece is available for many different materials including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene PVC, gray cast iron, nodular cast iron and other ultrasonic wave well-conductive materials. Dual probe extended your measure range to every possible need in your area. Transducer models are available for special application, including for coarse grain material and high temperature applications. Two-Point Calibration function; Two work modes: Single point mode and Scan mode; Coupling status indicator showing the coupling status;Auto sleep and auto power off function to conserve battery life.
Features
◆ Large LCD for easy reading
◆Suitable for all metallic and non-metallic materials
◆Easy to operate this metal thickness gauge
◆Wide measuring range from 0.75mm to 300mm (Steel)
◆Sound Speed Range up to 9999m/s
◆Display resolution 0.1 mm
◆Handheld and robust
Function

1.Metal thickness gauge is applicable to measure the thickness of any hard materials, e.g. steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene PVC, gray cast iron, nodular cast iron

2.Automatic Zero Adjustment

3.Data Store Function for up to 20 t files (up to 99 values for each file) of stored value

4.Auto Power Shut Off

5.Linear compensation circuit for high accuracy (1%H+0.1)

6.Speed of sound testing (m/s) with 12 storage memory.

7. 2.5 MHz for rough surface measurement

Specification

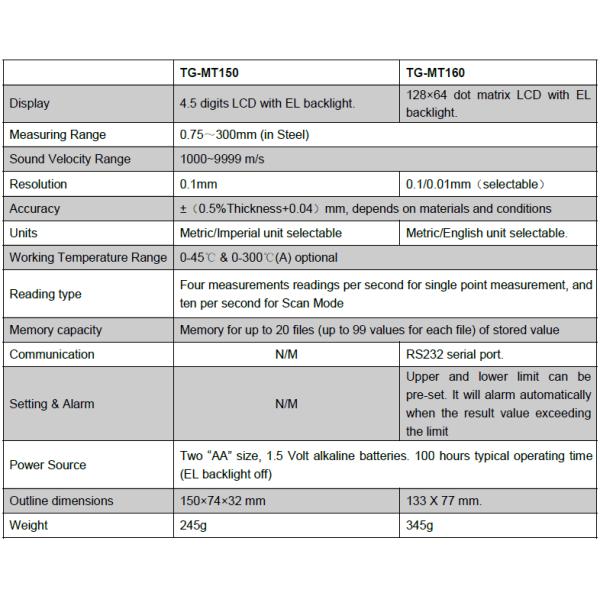

Technical Parameters:

Ultrasonic Thickness Gauge Available For Steel Measurement

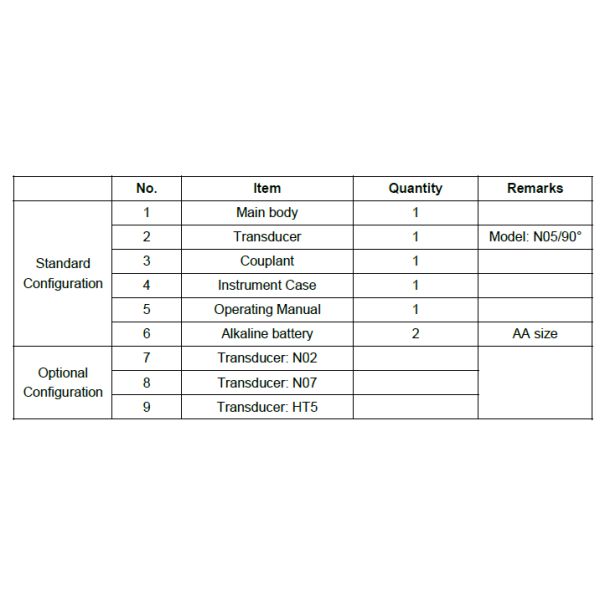

Configuration

Ultrasonic Thickness Gauge Available For Steel Measurement

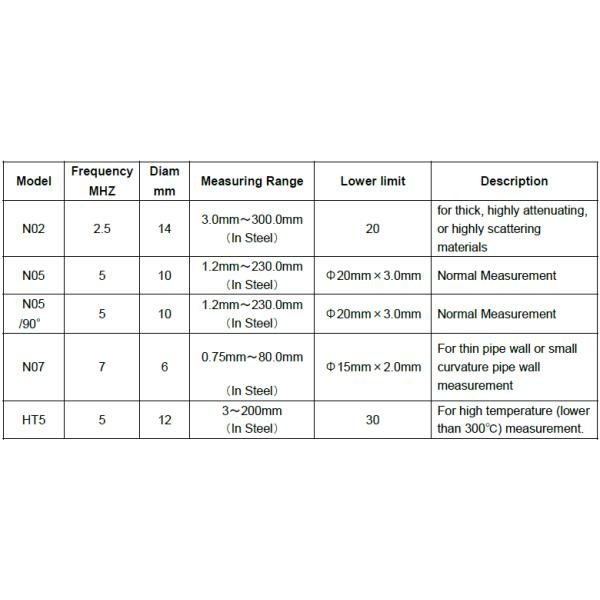

Appendix A: Transducer Selection

Ultrasonic Thickness Gauge Available For Steel Measurement

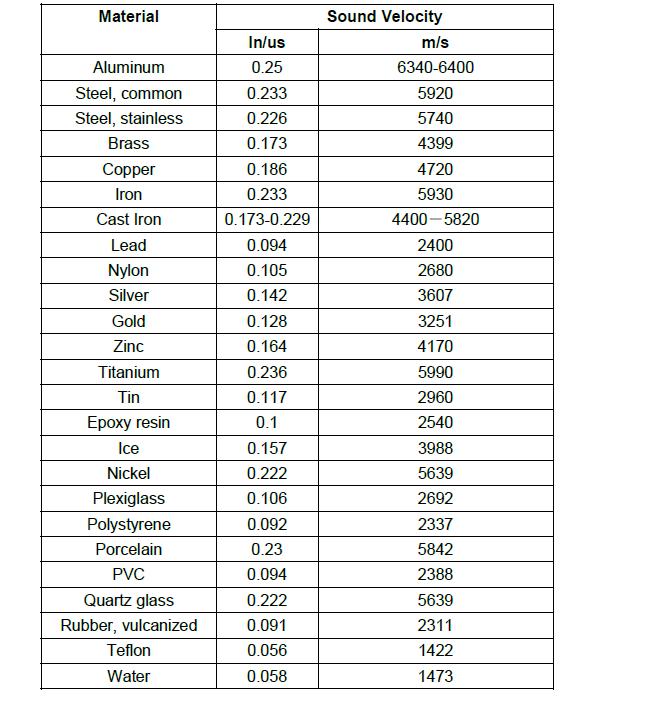

Appendix B: Sound Velocities

Ultrasonic Thickness Gauge Available For Steel Measurement
Factory Equipment
Ultrasonic Thickness Gauge Available For Steel Measurement
Customer Visiting
Ultrasonic Thickness Gauge Available For Steel Measurement
Certificate
Ultrasonic Thickness Gauge Available For Steel Measurement
Packing & Delivery

Packing

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement
Ultrasonic Thickness Gauge Available For Steel Measurement

Delivery

ultrasonic thickness gauge standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.

Ultrasonic Thickness Gauge Available For Steel Measurement
