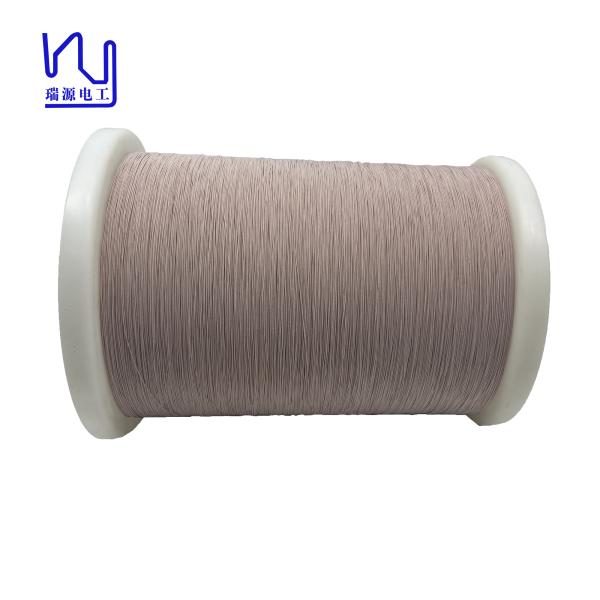

High Frequency Stranded Silk Covered Litz Wire
High Frequency Stranded Silk Covered Litz Wire
Specifications
Brand Name :
Ruiyuan
Model Number :
USTCF litz wire
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
TT/Paypal
Supply Ability :
100kg/week
Delivery Time :
7 days
Packaging Details :
Carton
Single Wire :
0.08mm
Number Of Strands :
10
Jacket :
Nylon
Color :
Natural
Conductor Material :
Silver
Key word :
High Frequency Stranded Silk Covered Litz Wire
Product name :
High Frequency Stranded Silk Covered Litz Wire
Description

High Frequency Stranded Silk Covered Litz Wiree

Of course, when designing new litz wire, the number of strands is chosen with the size of the individual wires in mind. More important is the resistance it need to achieve, the outer diameter, etc. We have a team of professionals who can support you in this regard.

Whether you require specific specifications or a unique configuration, we can produce custom silk-covered wire to your design. Additionally, we are able to press the wire into flat wire covered litz wire, allowing further customization to your width and thickness preferences.

Description

Conductor diameter*Strand number

1USTC-F

0.08*10



Single wire



 Conductor diameter(mm) 0.080
Conductor diameter tolerance (mm) ±0.003
Minimal insulation thickness(mm) 0.007
Maximal overall diameter (mm) 0.120
Thermal Class (℃) 155

Strand Composition

 Strand number 10
Pitch(mm) 29±5
Stranding direction S



Insulation layer




 Category Polyester
UL /
Material specs(mm*mm or D) 250
Times of Wrapping 1
Overlap(%) or thickness(mm),mini 0.02
Wrapping direction S

Characteristics


 Max O. D (mm) 0.45
Max pin holes 个/6m 20
Max resistance (Ω/Km at20℃) 377.5
Mini breakdown voltage (V ) 2000
