0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire
0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire
Specifications
Brand Name :
Rvyuan
Model Number :
Class 220
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
MOQ :
Different types with differet MOQ
Price :
Negotiation
Payment Terms :
Negotiation, T/T
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Item :
0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire
Width :
1.5mm
Product Name :
0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire
Product Category :
Rectangular Copper Wire
Applications :
Audio
Thickness :
0.1mm
Material :
Copper
Key word :
0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire
Description

0.1 * 1.5mm Class 155 180 220 Rectangular / Flat Enamelled Copper Wire

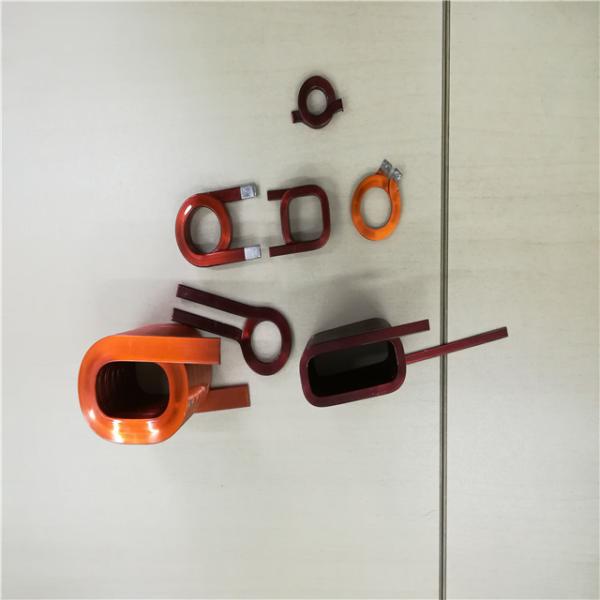

In the ever-evolving field of industrial applications, the need for reliable, efficient materials is crucial. Among them, high-temperature enameled flat copper wire stands out as the best choice for various fields such as motor and transformer windings and automotive applications. With an exceptional temperature resistance level of 220 degrees Celsius, this wire is able to withstand extreme conditions while maintaining optimal performance. This introduction will delve into the characteristics, advantages and diverse applications of enameled flat copper wire, highlighting its significance in modern industry.

Item

 conductor dimension

Unilateral insulation

layer thickness

 Overall dimension

Dielectric

breakdown

voltage

Conductor resistance

Elongation
Thickness Width Thickness Width Thickness Width
Unit mm mm mm mm mm mm kv Ω/km 20℃ %

SPEC

 AVE 0.100 1.500 0.025 0.025
Max 0.109 1.560 0.040 0.040 0.150 1.600 124.770
Min 0.091 1.440 0.010 0.010 0.700 30
No. 1 0.101 1.537 0.021 0.012 0.143 1.560 1.320

120.540

42
No. 2 1.850
No. 3 1.360
No. 4 2.520
No. 5 2.001
No. 6
No. 7
No. 8
No. 9
No. 10
Avg 0.101 1.537 0.021 0.012 0.143 1.560 1.810
Number of reading 1 1 1 1 1 1 5
Min. reading 0.101 1.537 0.021 0.012 0.143 1.560 1.320
Max. reading 0.101 1.537 0.021 0.012 0.143 1.560 2.520
Range 0.000 0.000 0.000 0.000 0.000 0.000 1.200
Result OK OK OK OK OK OK OK OK OK
