Rectangle Flat Copper Wire Enameled Copper Flat Wire for Generator
Rectangle Flat Copper Wire Enameled Copper Flat Wire for Generator
Specifications
Brand Name :
RVYUAN
Model Number :
Class 220
Certification :
IEC/NEMA/JIS/RoHS/ISO
Place of Origin :
China
MOQ :
10kg
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Satisfy your demand
Delivery Time :
2-15 workding days
Packaging Details :
Spool with carton
Shape :
Rectangular
Width: thickness :
25:1
Applications :
Motor winding
Thermal Grade :
220
Key word :
2mm Enameled Copper Flat Winding Wire Thermal Class 220 Grade For Automotive
Description

Rectangle Flat Copper Wire Enameled Copper Flat Wire for Generator

Application:

Special and High-End Applications Aerospace and Military Equipment: Equipment with extreme requirements for weight, size, and reliability. Medical Devices: Equipment requiring high-intensity, highly uniform magnetic fields, such as gradient coils in MRI (Magnetic Resonance Imaging) machines and CT scanners. Welding Equipment: Windings for high-current welding transformers. Frequency Inverters and UPS (Uninterruptible Power Supply): Power inductors and transformers within these systems.

Technical Specifications & Test Results
Item Characteristics Standard Test Result
1 Appearance Smooth, Equality OK
2 Conductor Diameter (mm) W: 2.00 ±0.060
T: 0.15 ±0.009		 W: 2.002
T: 0.153
3 Thickness of Insulation (mm) W: 0.010-0.020
T: 0.030-0.032		 W: 0.010-0.020
T: 0.030-0.032
4 Overall Diameter (mm) W: 2.100
T: 0.200		 W: 2.022
T: 0.185
5 Pinhole (Normal State) Max ≤ 3 pcs/m 0
6 Elongation (%) Min ≥ 30% 42
7 Flexibility and Adherence No Crack OK
8 Conductor Resistance (Ω/km, 20℃) Max 64.03 57.96
9 Breakdown Voltage (AC) Min 0.7 KV 1.5
10 Heat Shock No Crack OK

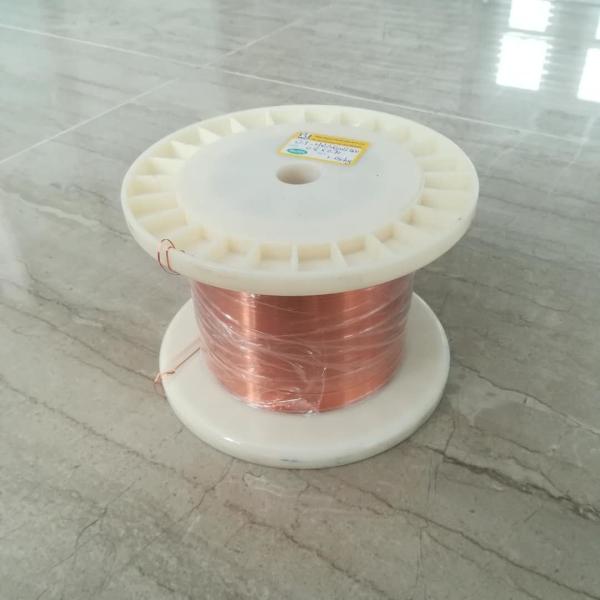

Product Image
Rectangle Flat Copper Wire Enameled Copper Flat Wire for Generator
